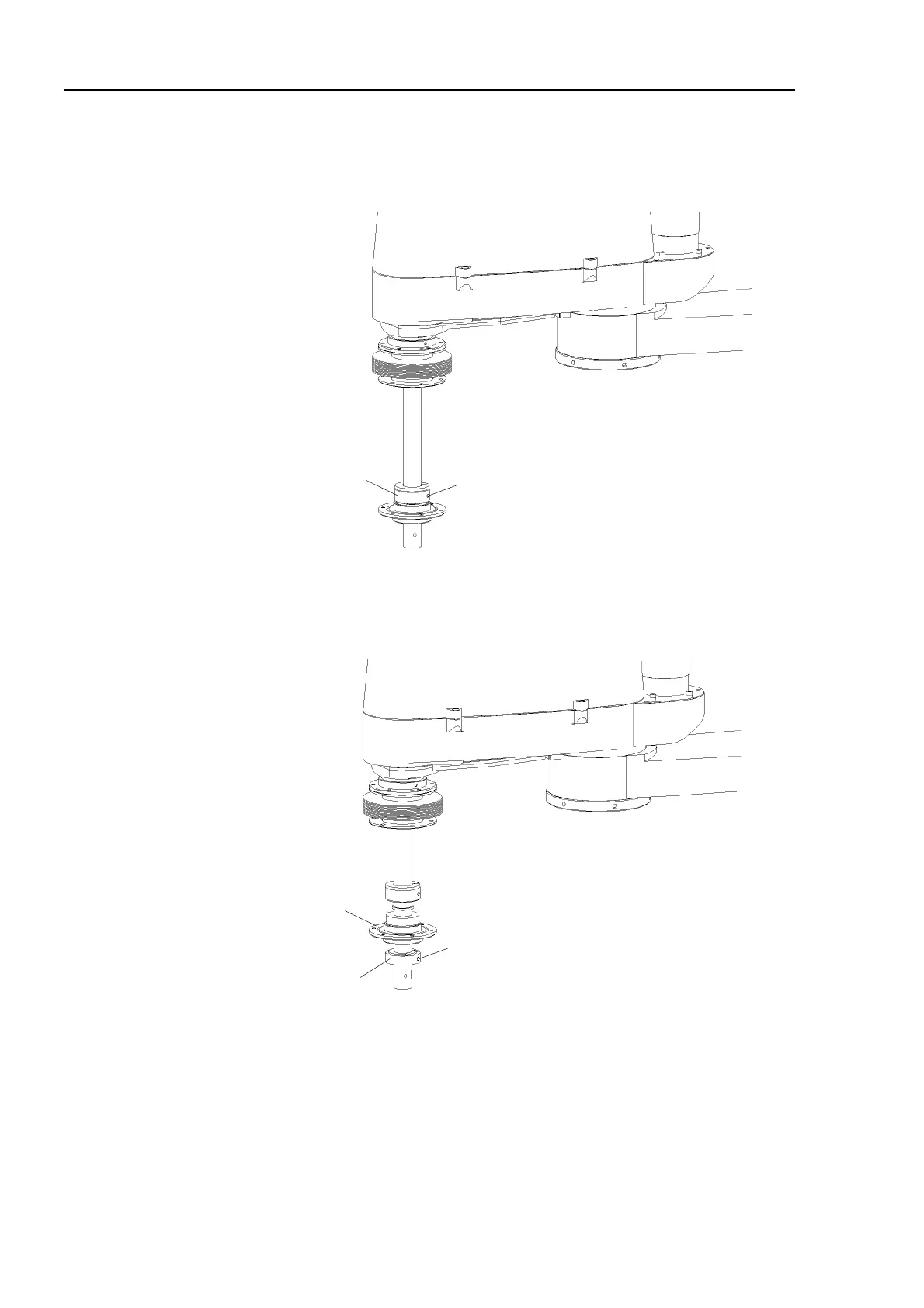

(5) Lift up the lower bellows and loosen the bolt (M4×18) on the upper-limit mechanical
stop. Slide the stop upward about 50 mm.
M4×18 bolt
Upper-limit
mechanical stop
(6) Lift up the flange and loosen the bolt (M6×18) on the set-ring. Remove the set-ring,
flange, O-rings, lower bellows, and mounting rings from the shaft.
M6×18 bolt
Flange
Set-ring
(7) Push the shaft all the way up to the upper limit while pushing the brake release button.

Epson ES Series Specifications

General

Type	SCARA
Payload	3 kg
Repeatability	±0.01 mm
Axes	4
Controller	RC700
