7 Installation of FLUXUS G608 FLUXUS G60x
UMFLUXUS_G6V4-2EN, 2011-03-29 43
7.2.3 Installation on a Pipe
Fix the tension belt to the pipe with the button. Tighten the tension belt by means of the
ratchet. Insert the button into the opening in the support plate on the back side of the
transmitter (see Fig. 7.3).
Attention! The pipe temperature must not exceed the operating temperature of
the transmitter.

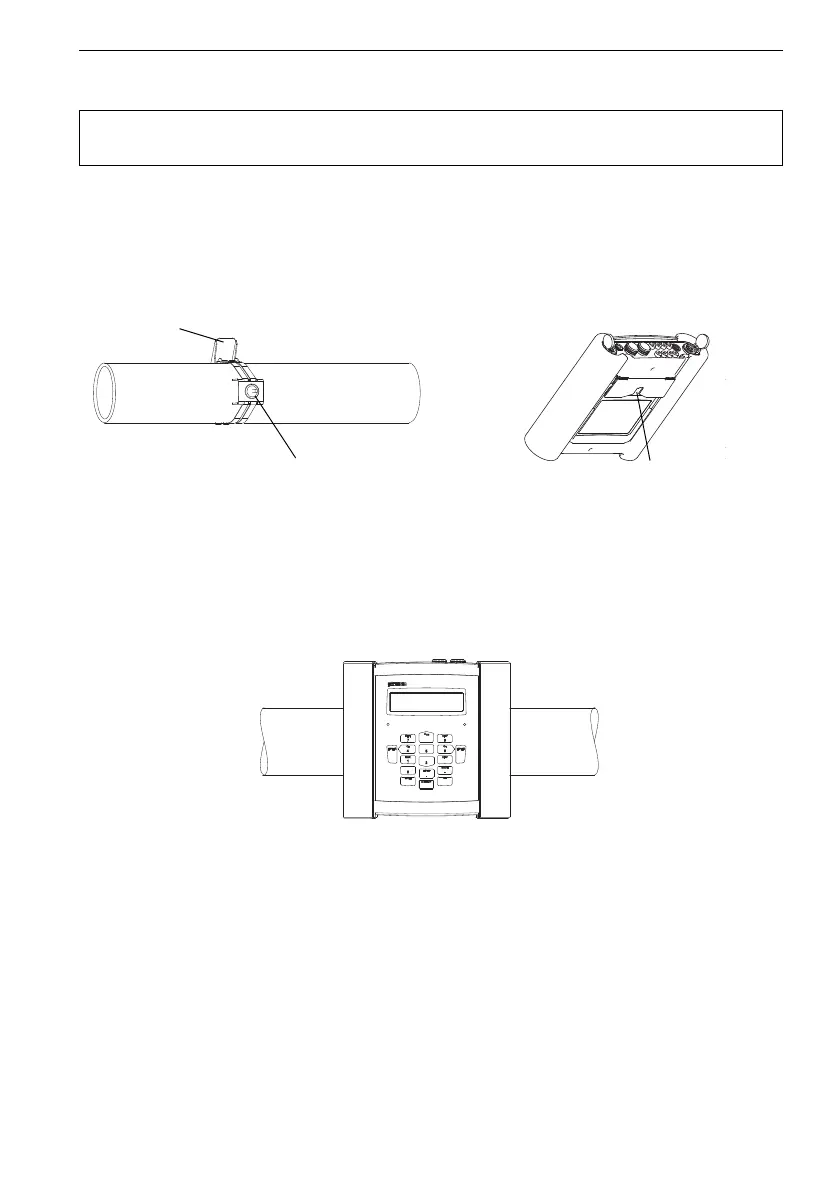

Fig. 7.3: Pipe installation
Fig. 7.4: Transmitter on the pipe
button on the pipe
ratchet
opening in the
support plate
3
C
B R K
8
