The following items are displayed in the Main area:
• Enclosure
The enclosure where the drive is installed is displayed. By clicking this item, the [Drive
Enclosure] screen is displayed. Refer to "10.1.8 Drive Enclosure Detail" (page 420)
for display
items.
• Status
The drive enclosure status is displayed. Refer to "B.5 Component Status" (page 615)
for
details.
• Type
The drive size and the maximum number of drives that can be installed in the drive enclosure
are displayed.
10.1.3.1 I/O Module

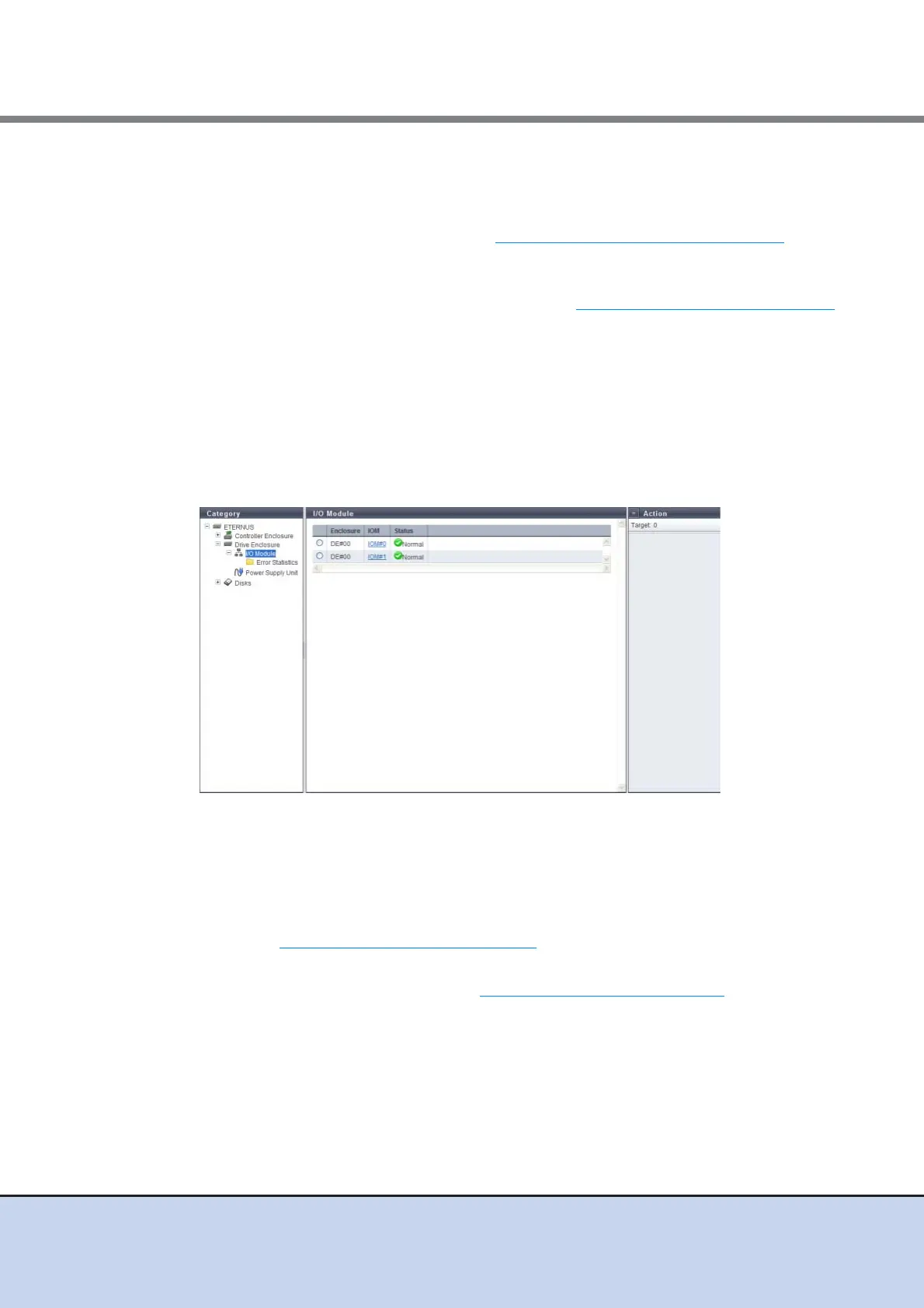

The I/O Module (IOM) information is displayed.
The following items are displayed in the Main area:
• Enclosure
The enclosure where the drive is installed is displayed.
• IOM
The IOM number is displayed. By clicking this item, the [I/O Module] screen is displayed.
Refer to "10.1.9 I/O Module Detail" (page 424)
for display items.
• Status
The IOM status is displayed. Refer to "B.5 Component Status" (page 615)
for details.
