Chapter 10 Component Management
10.1 Component Status
ETERNUS Web GUI User’s Guide
423
Copyright 2011 FUJITSU LIMITED P2X0-1090-02ENZ0

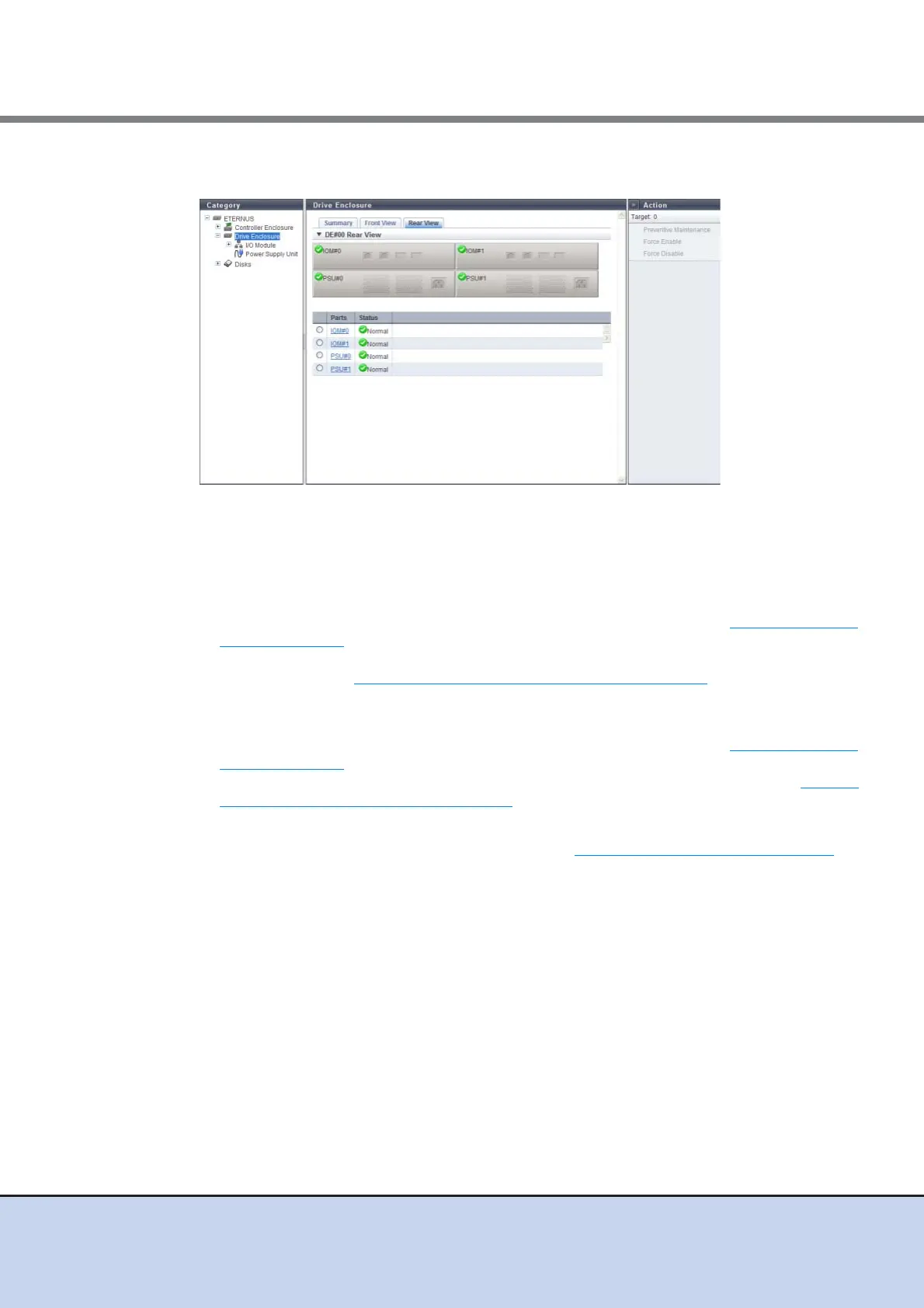

■ Rear View
The following items are displayed in the Main area:
• Device image
The rear view of the DE that is installed in the ETERNUS DX Disk storage system is
displayed.
The IOM status or the PSU status is displayed with an icon.
By clicking the IOM number, the [I/O Module] screen is displayed. Refer to "10.1.9 I/O Module
Detail" (page 424) for display items.
By clicking the PSU number, the [Controller Enclosure Power Supply Unit] screen is
displayed. Refer to "10.1.10 Power Supply Unit (DE) Detail" (page 426)
for display items.
• Parts
The IOM number or the PSU number is displayed.
By clicking the IOM number, the [I/O Module] screen is displayed. Refer to "10.1.9 I/O Module
Detail" (page 424) for display items.
By clicking the PSU number, the [Power Supply Unit] screen is displayed. Refer to "10.1.10
Power Supply Unit (DE) Detail" (page 426) for display items.
• Status
The status of IOM or PSU is displayed. Refer to "B.5 Component Status" (page 615)
for
details.
• Additional Information
Additional information for the IOM or the voltage information for the PSU is displayed.
