Fujitsu PRIMERGY CX2550 M1 Upgrade And Maintenance Manual

100 Upgrade and Maintenance Manual CX2550 M1
Expansion cards
Inserting the SFP+ transceiver module

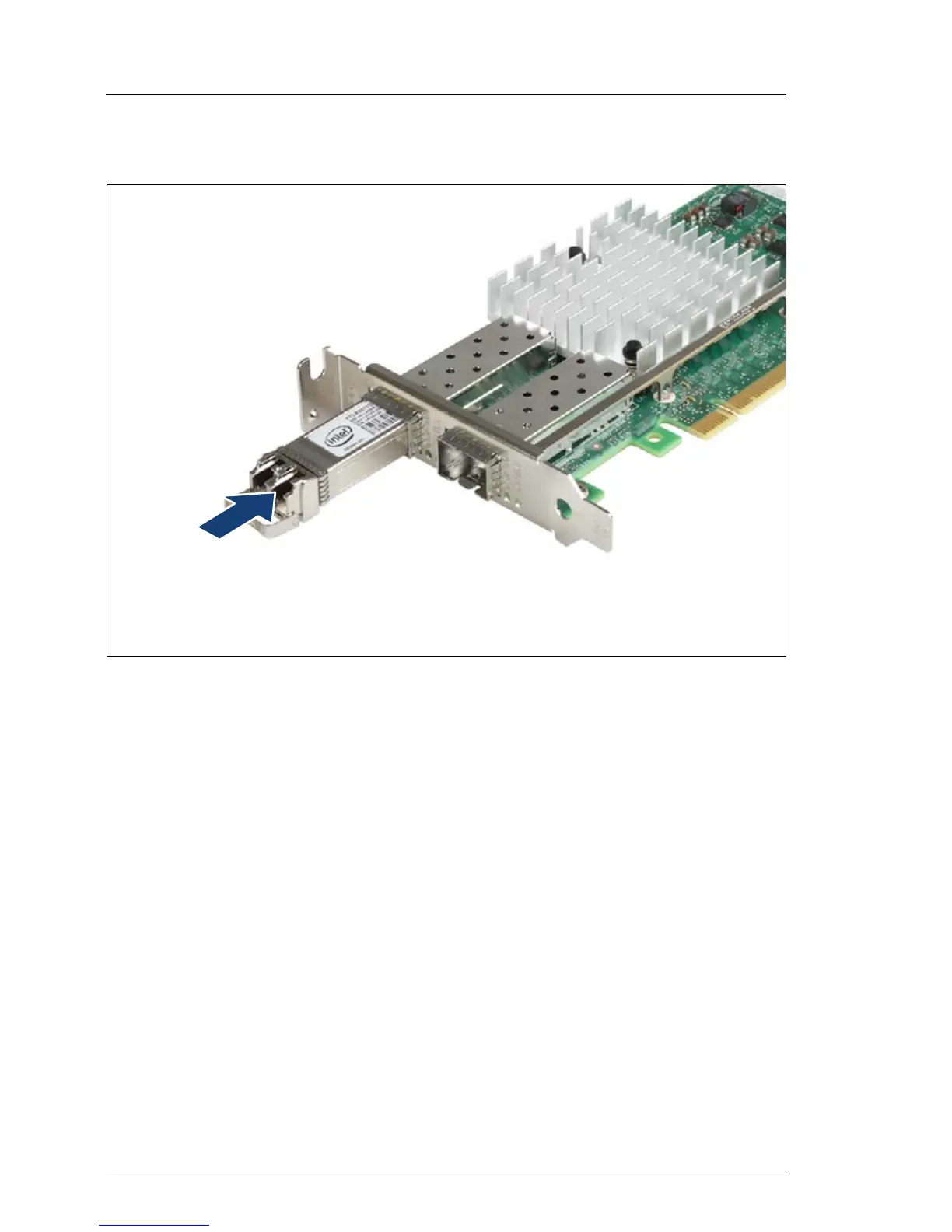

Figure 22: Inserting the SFP+ transceiver module
Ê Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
I If only one slot is equipped with a SFP+ transceiver module, use the
primary right connector as shown.

Fujitsu PRIMERGY CX2550 M1 Specifications

General

Brand	Fujitsu
Model	PRIMERGY CX2550 M1
Category	Server
Language	English
