184 Upgrade and Maintenance Manual CX2550 M1
System board and components

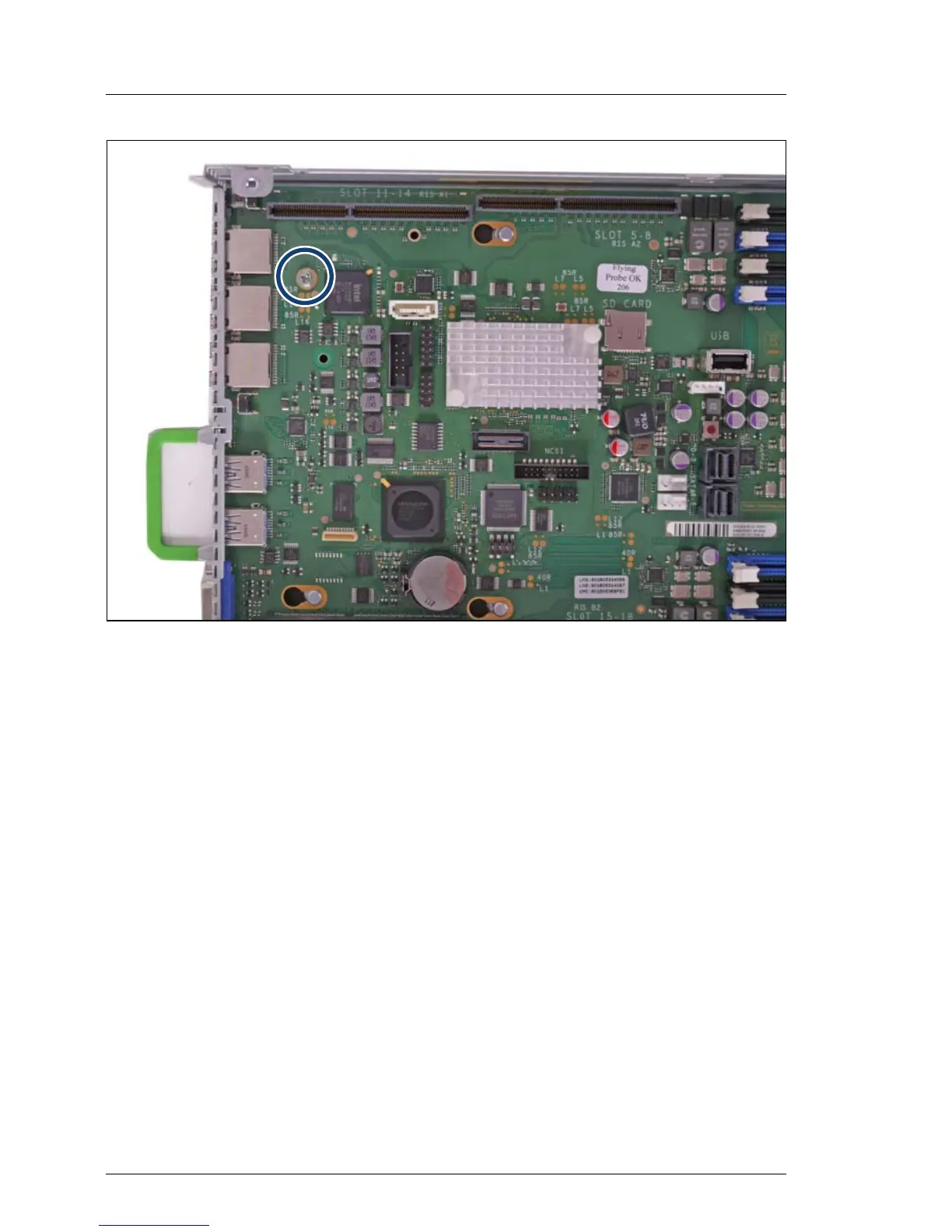

Figure 76: Securing the screw of the system board
Ê Secure the system board with the screw (see circle).
9.5.2.3 Swapping processors
Preparing the processor socket load plates on the new system board
Ê "Installing the processor" on page 137
Removing processors from the defective system board
Ê Carefully remove the processors from their sockets on the defective system
board as described in "Removing the processor" on page 133.
V CAUTION!
Remove and reinstall one processor at a time. Do not remove the
second processor from the defective system board until the first
processor has been installed on the new system board.
