CX2550
M1
Upgrade and Maintenance Manual
125
Main memory
7.3.2
Removing a
memory module

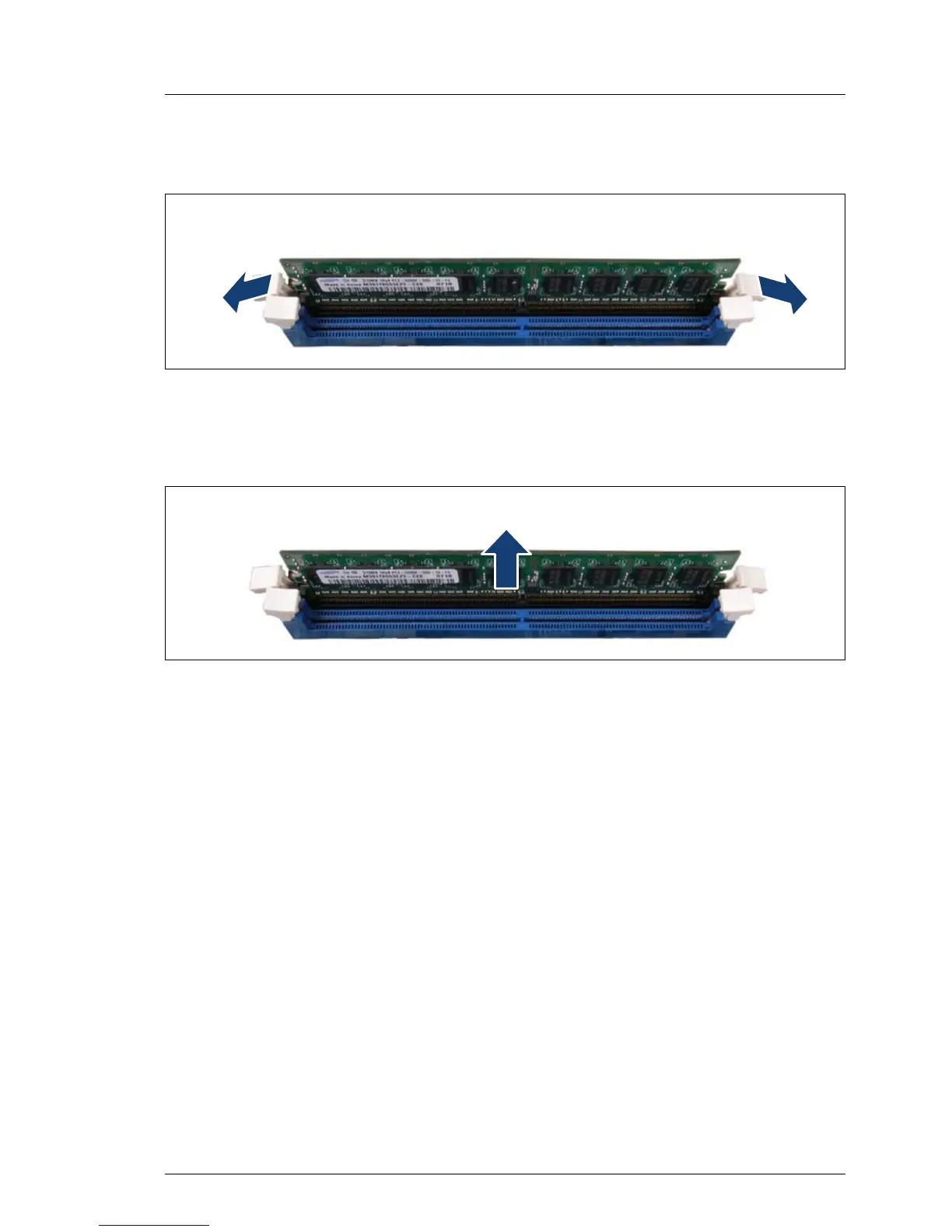

Figure 36: Rem
oving mem
ory mod
ules (A)
Ê
Eject the desired memory module by pressing out the securing clips at each
end of the memory module connector
.
Figure 37: Rem
oving mem
ory mod
ules (B)
Ê
Remove the ejected memory module.
124
126
