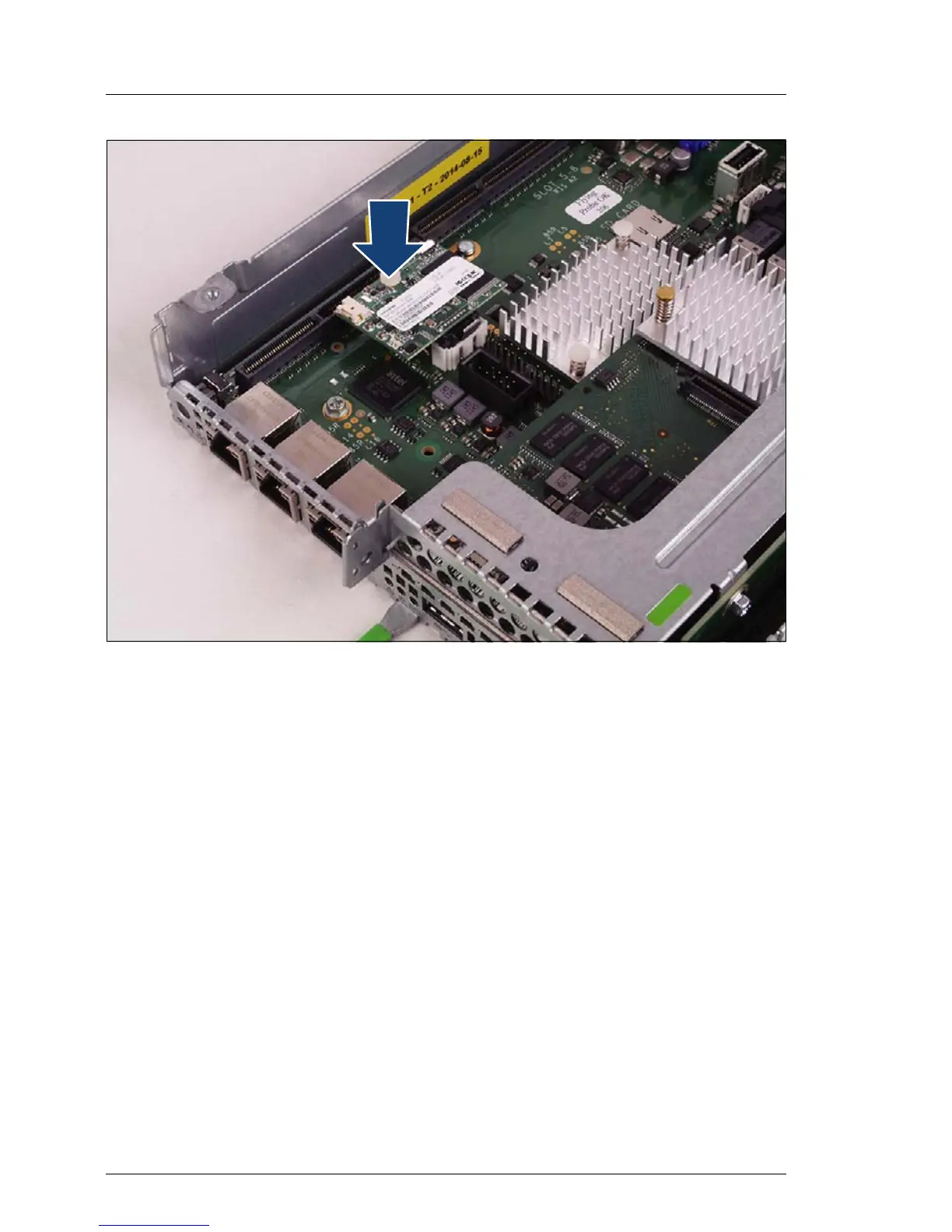

Figure 59: Installing the SATA DOM (B)
Ê The SATA DOM on the SATA DOM spacer must audibly click into place (see
arrow).
9.2.1.3 Concluding steps
Perform the following procedures:
Ê "Installing the server node in the server enclosure" on page 50
Ê If applicable, reconnect all external cables.
Ê "Controls and indicators on the server node" on page 51
Ê "Enabling SVOM boot watchdog functionality" on page 72
