9.5.2.2 Installing the system board

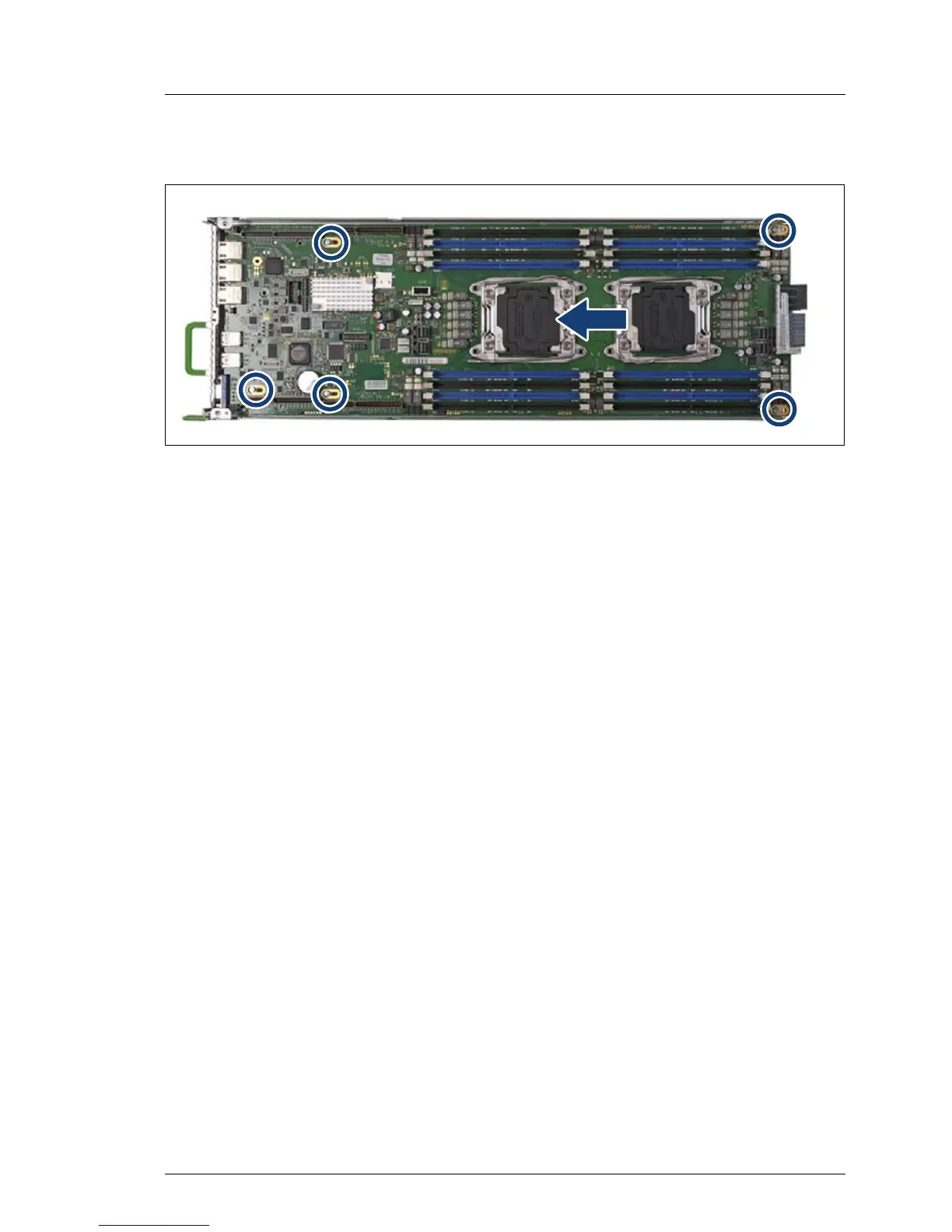

Figure 75: Installing the system board
Ê Hold the new system board by the memory module ejectors.
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
– Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê At a slight angle, lower the system board into the chassis.
Ê Carefully shift the system board in the direction of the arrow until the plug
shells engage with the cut-outs in the connector panel (see circles).
Ê Lower the system board down.
