Fujitsu PRIMERGY CX2550 M1 Upgrade And Maintenance Manual

206 Upgrade and Maintenance Manual CX2550 M1
Cabling
11.1 Cabling overview
11.2 Cabling
Cabling onboard

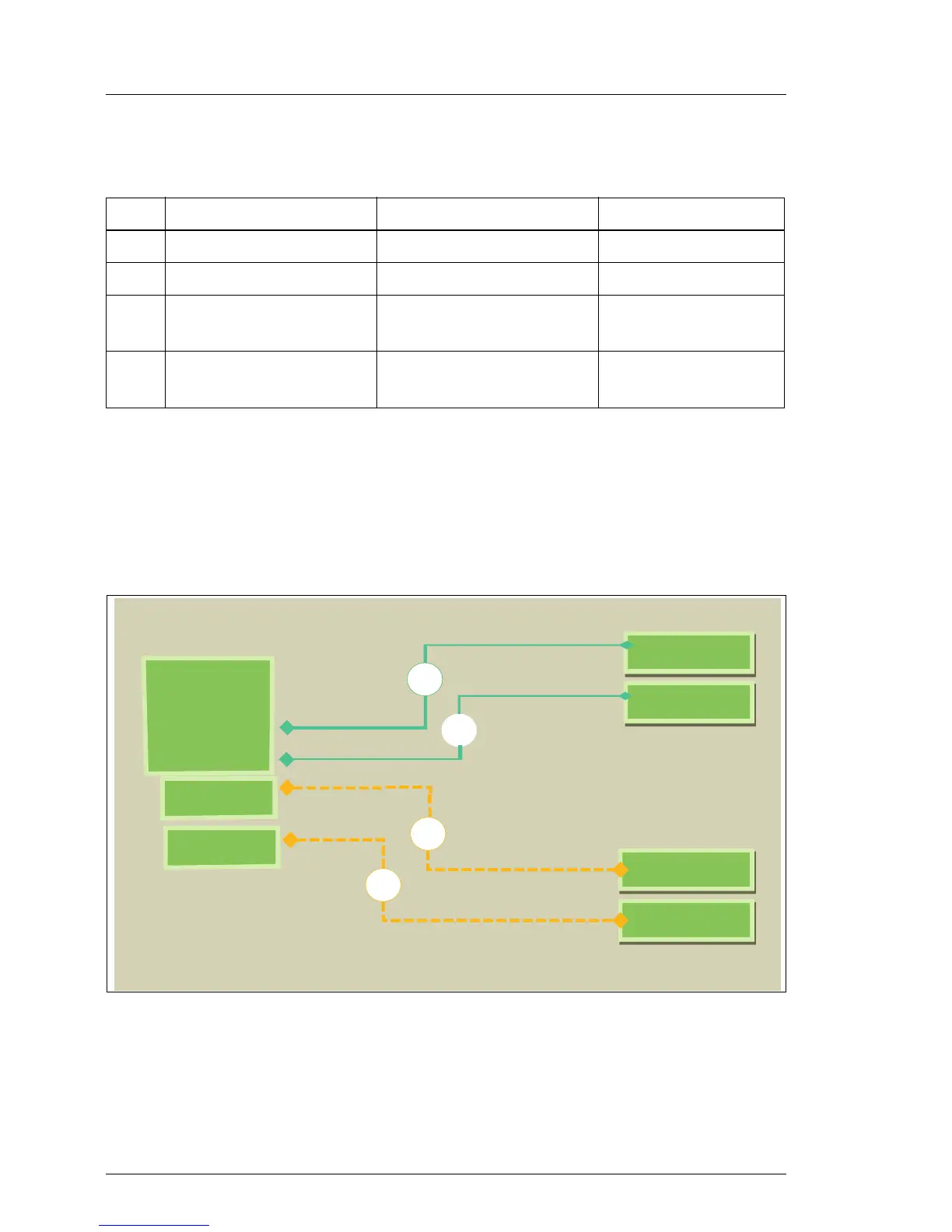

Figure 102: Cabling onboard
No. Part number (Label) Description Note
C1 T26139-Y4040-V13 Onboard SATA CBL PCH-BP
C2 T26139-Y4040-V12 RAID controller CBL CGR4-BP
C3 T26139-Y3946-V606
GPGPU (only for
CX2570M1)
CBL GPU PWR
C3 T26139-Y3946-V609
GPGPU(K80) (only for
CX2570M1)
CBL GPU PWR
Table 5: List of used cables
SATA Onboard
SATA 0-3
C1
GPGPU 2
PWD
C3
GPGPU 1
PWD
D3343
MoBo
SAS 0 - 3
SAS 4 - 5
C3
C1
SATA Onboard
SATA 4-5
D3343
MoBo
SAS 0 - 3
SAS 4 - 5
GPGPU Riser Card
X53
GPGPU Riser Card
X53
