46 Upgrade and Maintenance Manual CX2550 M1
Basic hardware procedures
4.6 Mounting a controller to the riser module

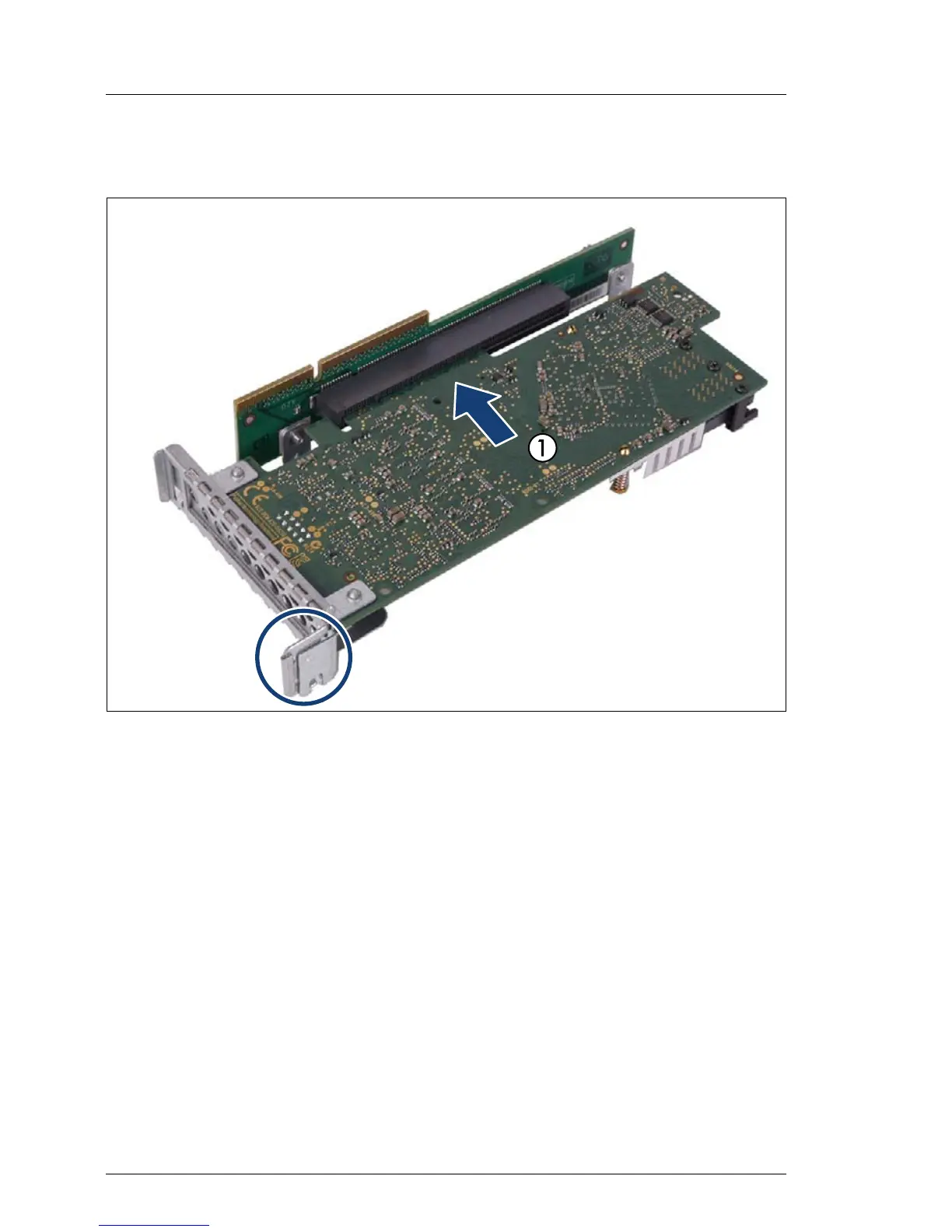

Figure 8: Mounting a controller to the riser module
Ê Plug the controller on the riser card connector (1).
I Make sure that the metal pin of the controller bracket hooks into the
recess of the riser bracket (see circle).
