CX2550 M1 Upgrade and Maintenance Manual 137
Processors
8.2.4 Installing the processor

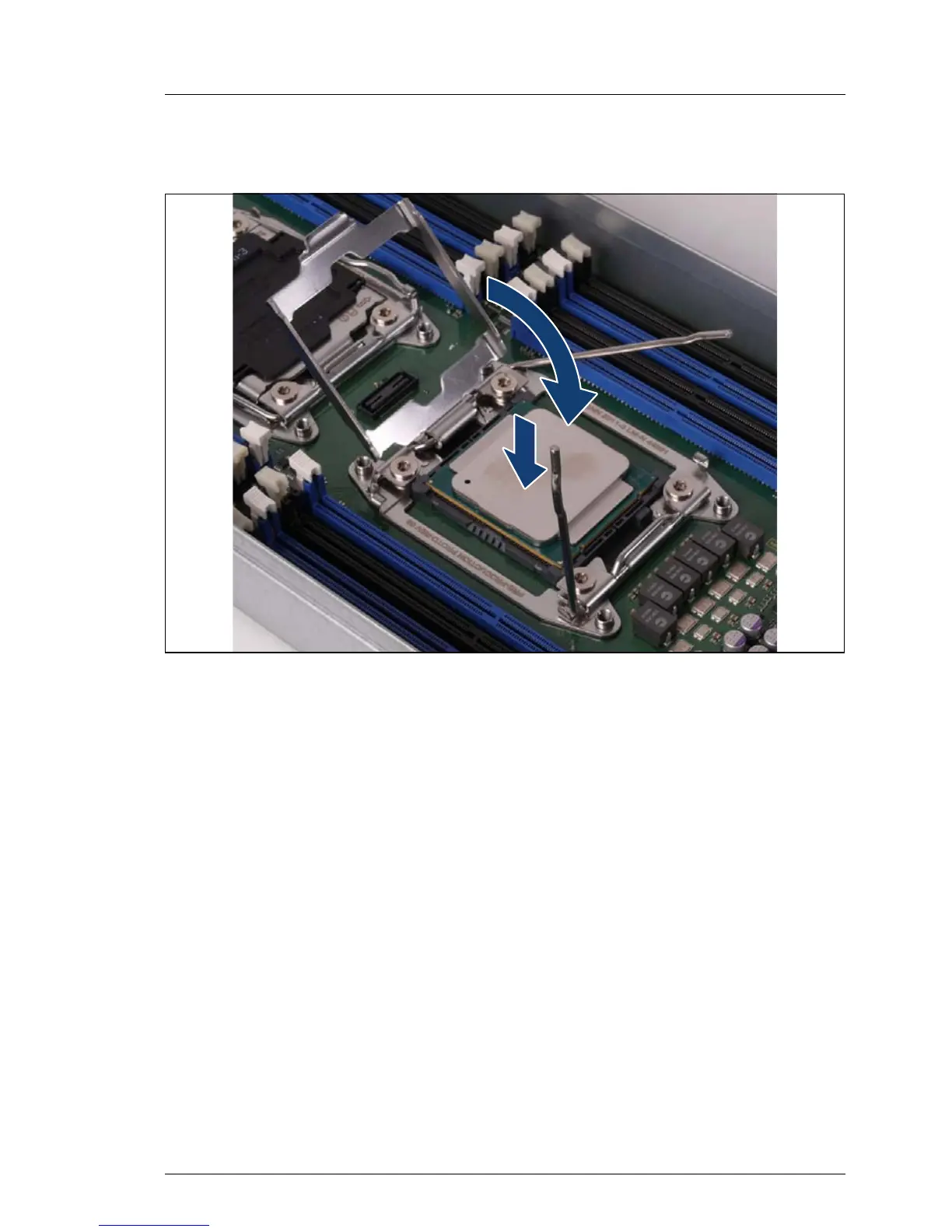

Figure 44: Installing the processor
Ê Hold the processor with your thumb and index finger.
Ê Make sure that the four notches on the processor align with the posts on the
socket.
Ê Lower the processor straight down without tilting or sliding it in the socket.
V CAUTION!
Ensure that the processor is level in the socket.
Be careful not to touch or bend the pins on the processor socket.
Never touch the underside of the processor. Even minor soiling
such as grease from the skin can impair the processor’s operation
or destroy the processor.
Ensure not to scrape or dent the processor edges.
Ê Carefully lower the load plate over the processor.
