CX2550 M1 Upgrade and Maintenance Manual 181
System board and components
9.5.2.1 Removing the system board

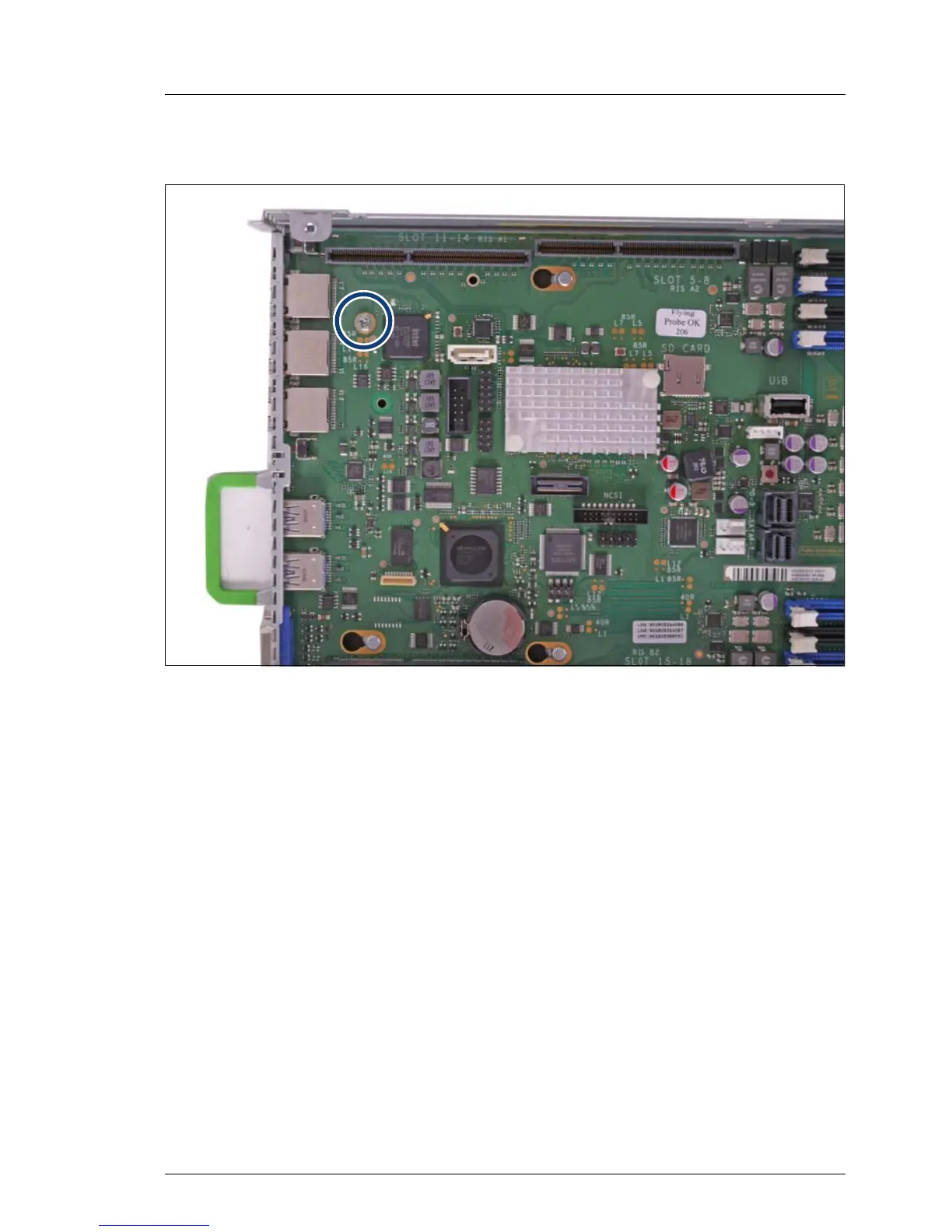

Figure 73: Removing the screw of the system board
Ê Remove the screw from the system board (see circle).
