11.3.2 Cabling with RAID-Controller

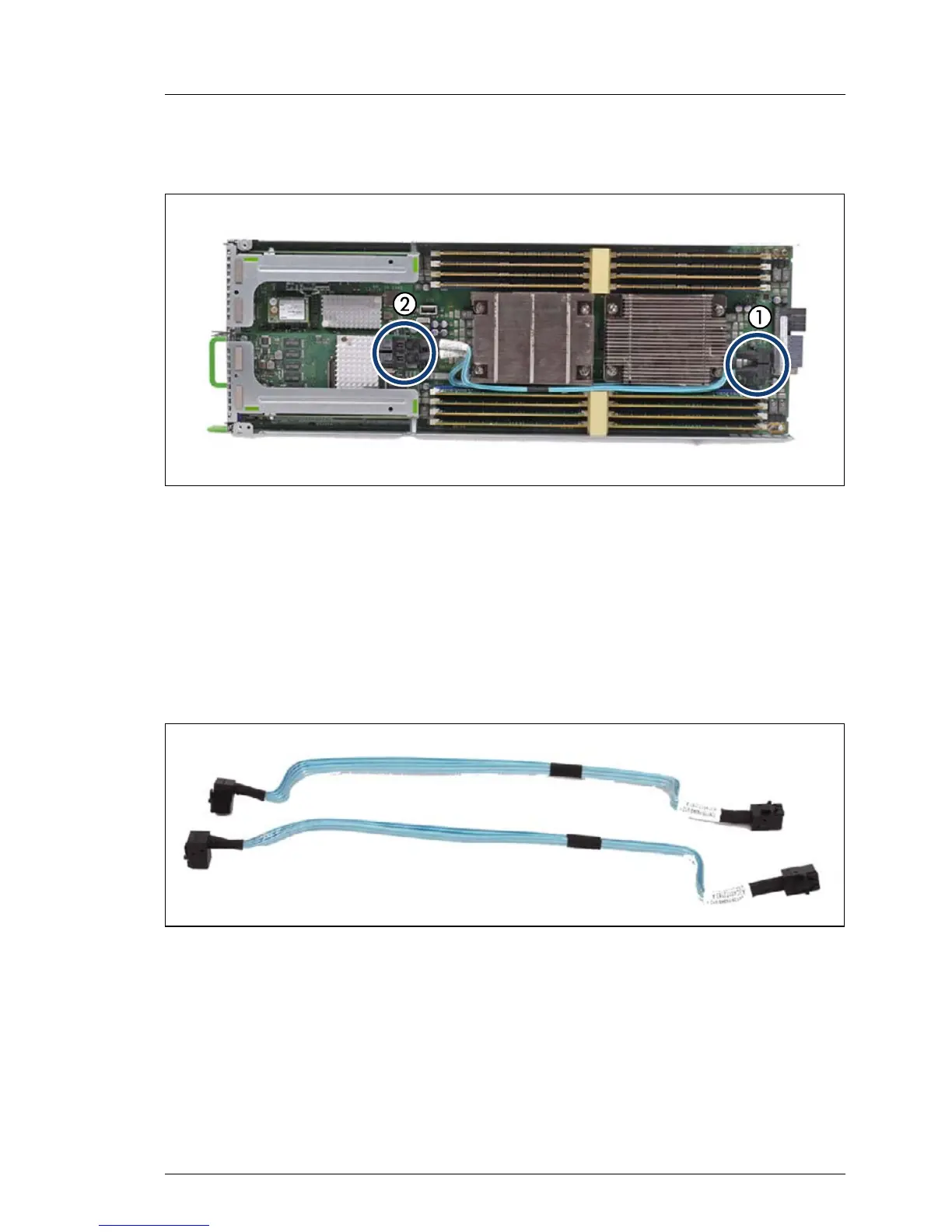

Figure 106: Cabling with RAID controller with cable T26139-Y4040-V12
Ê Plug one end of the SATA cable on the SAS connector (SAS 0-3) on the
system board (1).
Ê Plug the other end of the SATA cable to the connector on the RAID controller
(2).
Ê Proceed with the second SATA cable as described before but plug it into the
other SAS connector (SAS 4-5) on the system board.
Figure 107: Cable T26139-Y4040-V12
