11.3 Cabling for HDD 2.5"
11.3.1 Cabling onboard

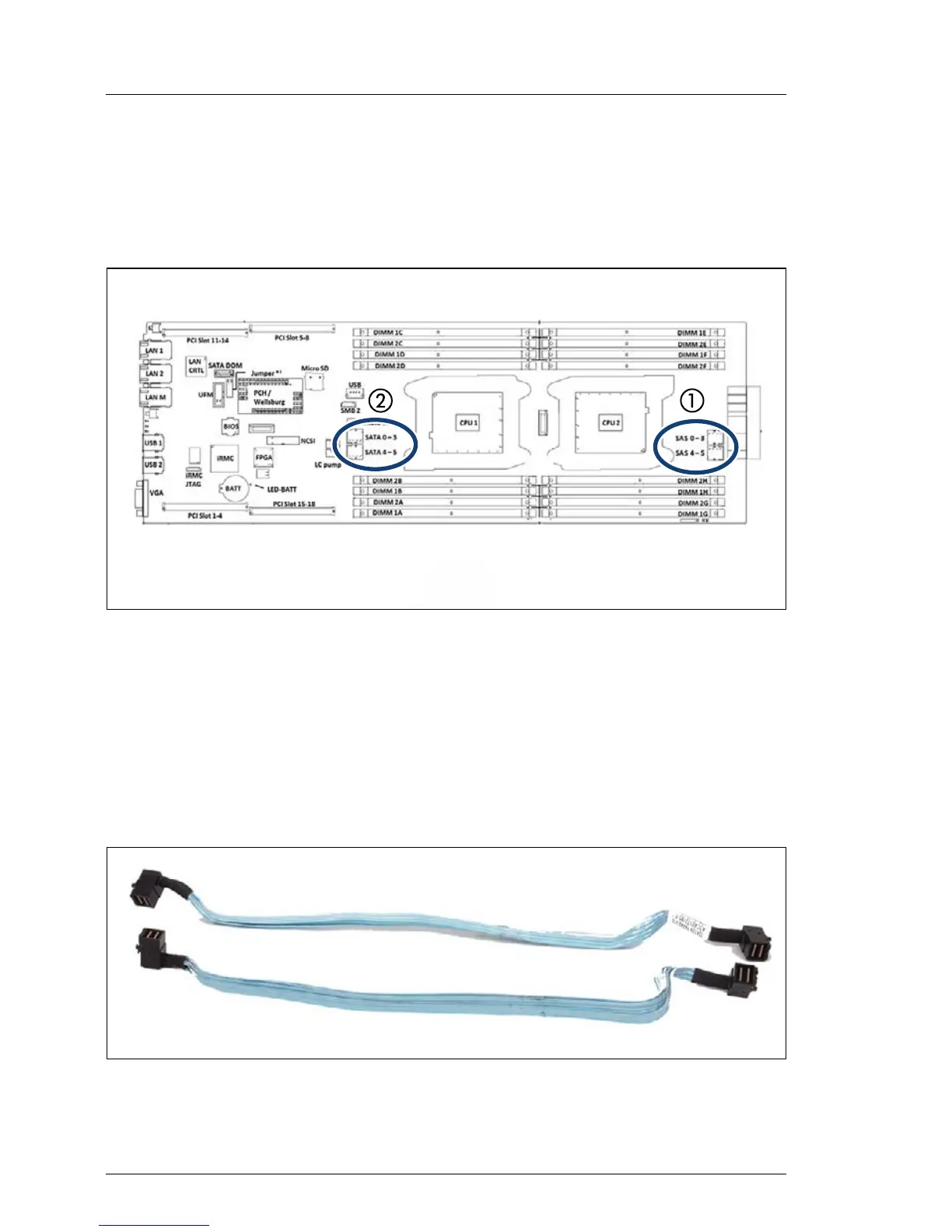

Figure 104: Cabling onboard with cable T26139-Y4040-V13
Ê Plug one end of the SATA cable on the SAS connector (SAS 0-3) on the
system board (1).
Ê Plug the other end of the SATA cable on the SATA connector (SATA 0-3) on
the system board (2).
Ê Proceed with the second SATA cable as described before but plug it into the
other SAS/SATA connector (SAS 4-5/SATA 4-5) on the system board.
Figure 105: Cable T26139-Y4040-V13
