Fujitsu PRIMERGY CX2550 M1 - Removing a Controller from the Riser Module; Concluding Steps

CX2550 M1 Upgrade and Maintenance Manual 111
Expansion cards
6.3.2.2 Removing a controller from the riser module

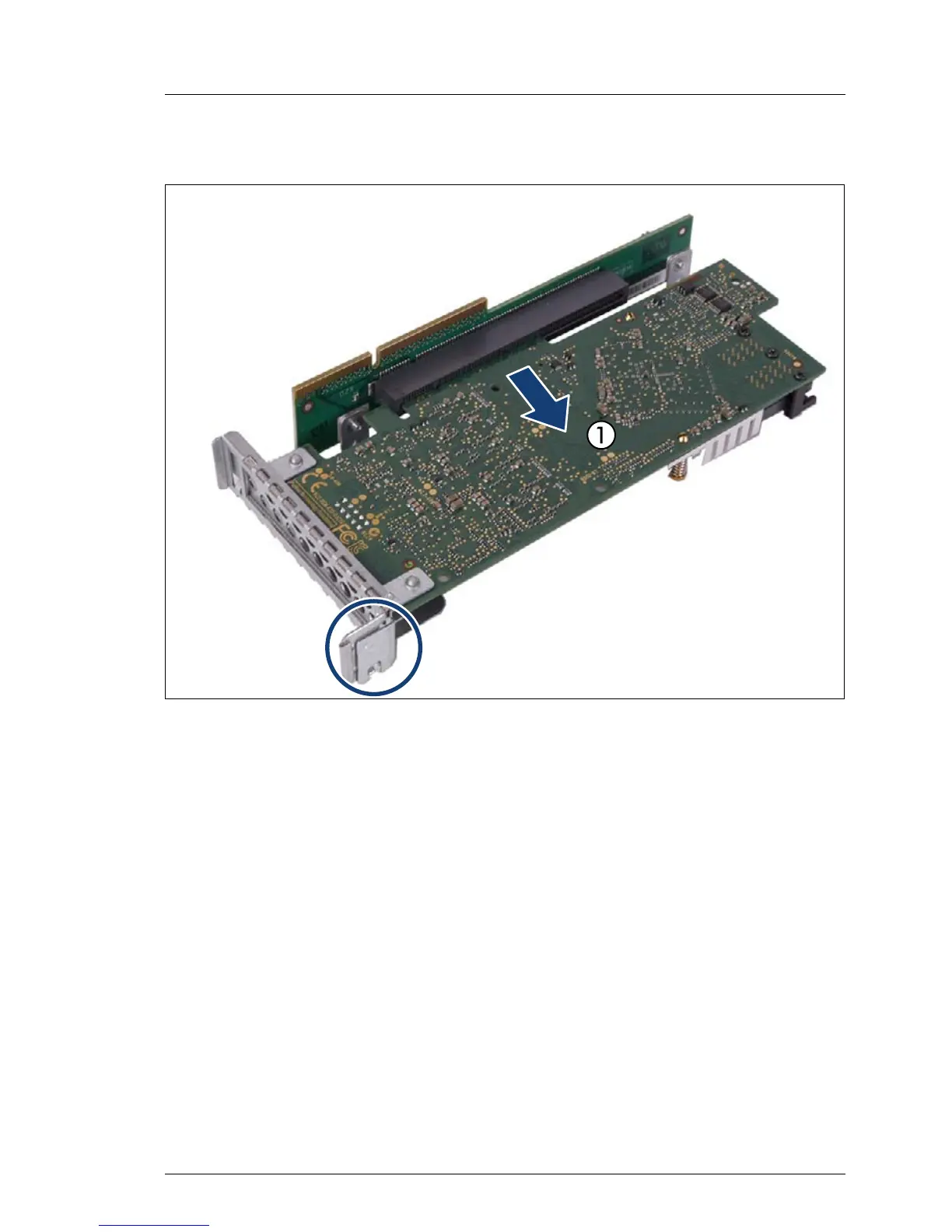

Figure 30: Removing a controller from the riser module
Ê Pull the controller out of the riser card connector (1).
I Make sure that the metal pin of the controller bracket does not get
stucked with the recess of the riser bracket (see circle).
6.3.2.3 Concluding steps
Perform the following procedures:
Ê "Replacing the riser card" on page 45
Ê "Installing the riser module" on page 43
Ê "Installing the server node in the server enclosure" on page 50
Ê "Controls and indicators on the server node" on page 51
