Fujitsu PRIMERGY CX2550 M1 - Removing the Riser Module

CX2550 M1 Upgrade and Maintenance Manual 41
Basic hardware procedures
4.3 Removing the riser module

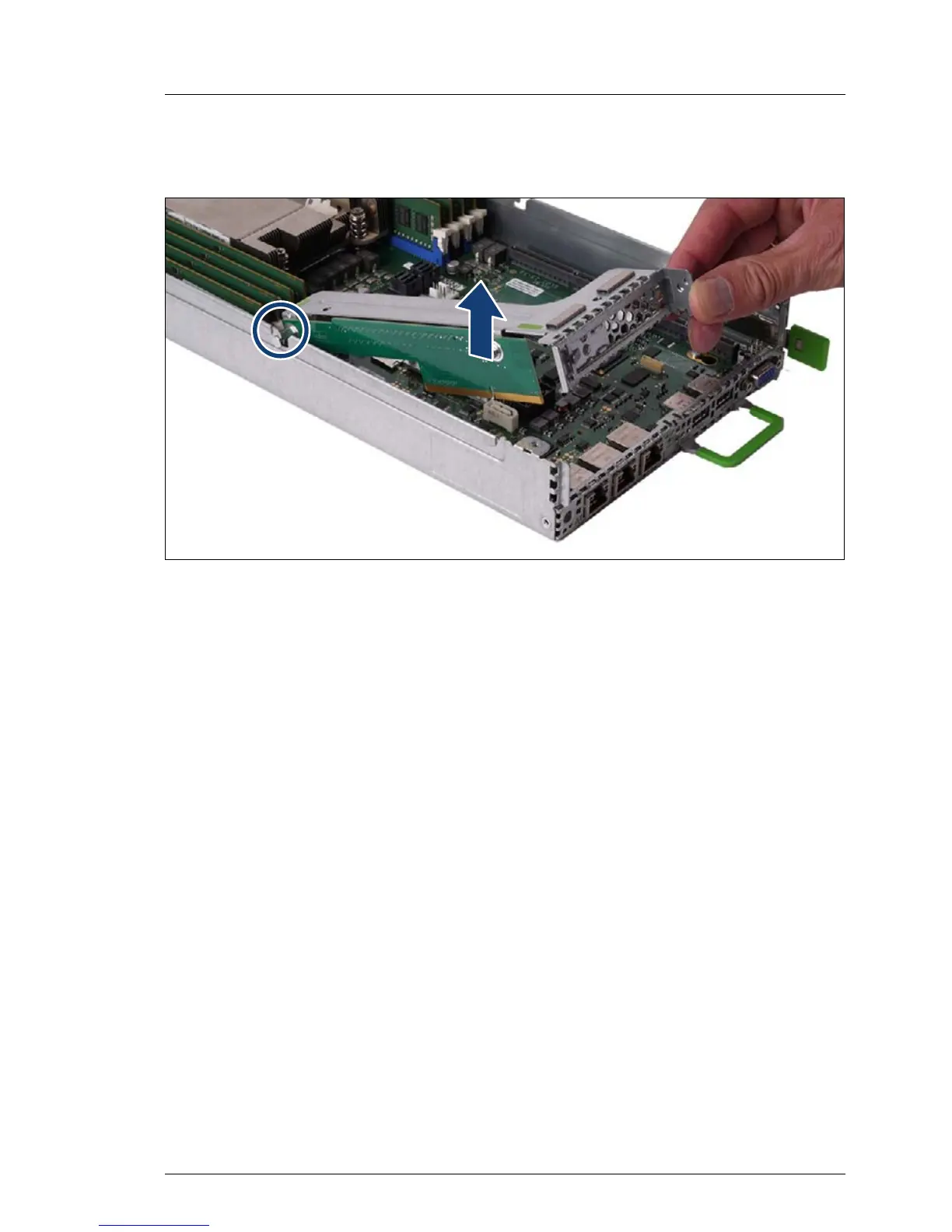

Figure 3: Removing the riser module at the left side
I An expansion card can only be installed if the riser module has been
removed.
Ê Remove the riser module from the chassis by pulling the riser module out of
the slot and the bolt out of the chassis sparing (see circle).
