8.2.5 Applying thermal paste
I For the Japanese market, the service engineer must follow the
instruction provided separately.
I If the processor upgrade or replacement kit contains a new CPU heat
sink, a thin layer of thermal compound has already been pre-applied to
its lower surface. In this case, please proceed with section "Installing the
processor heat sink" on page 142.

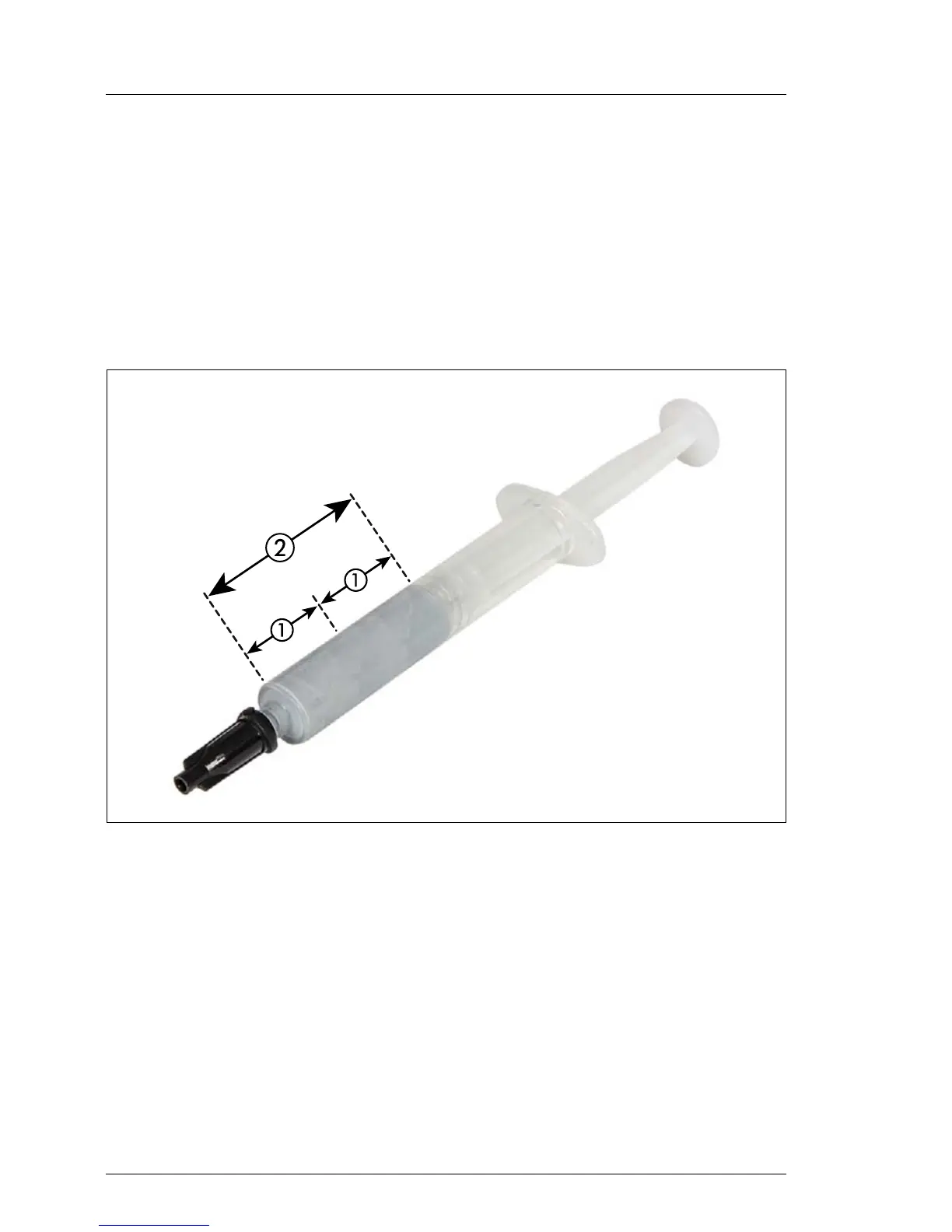

Figure 47: Thermal paste syringe
One thermal compound syringe contains thermal paste for two processors.
In order to determine the correct amount of thermal paste (equal to 1.0 gram),
divide the grey area of the syringe up into two equal segments.
I Add graduation marks to the syringe using a permanent marker to help
you apply the thermal paste.
