CX2550 M1 Upgrade and Maintenance Manual 139
Processors

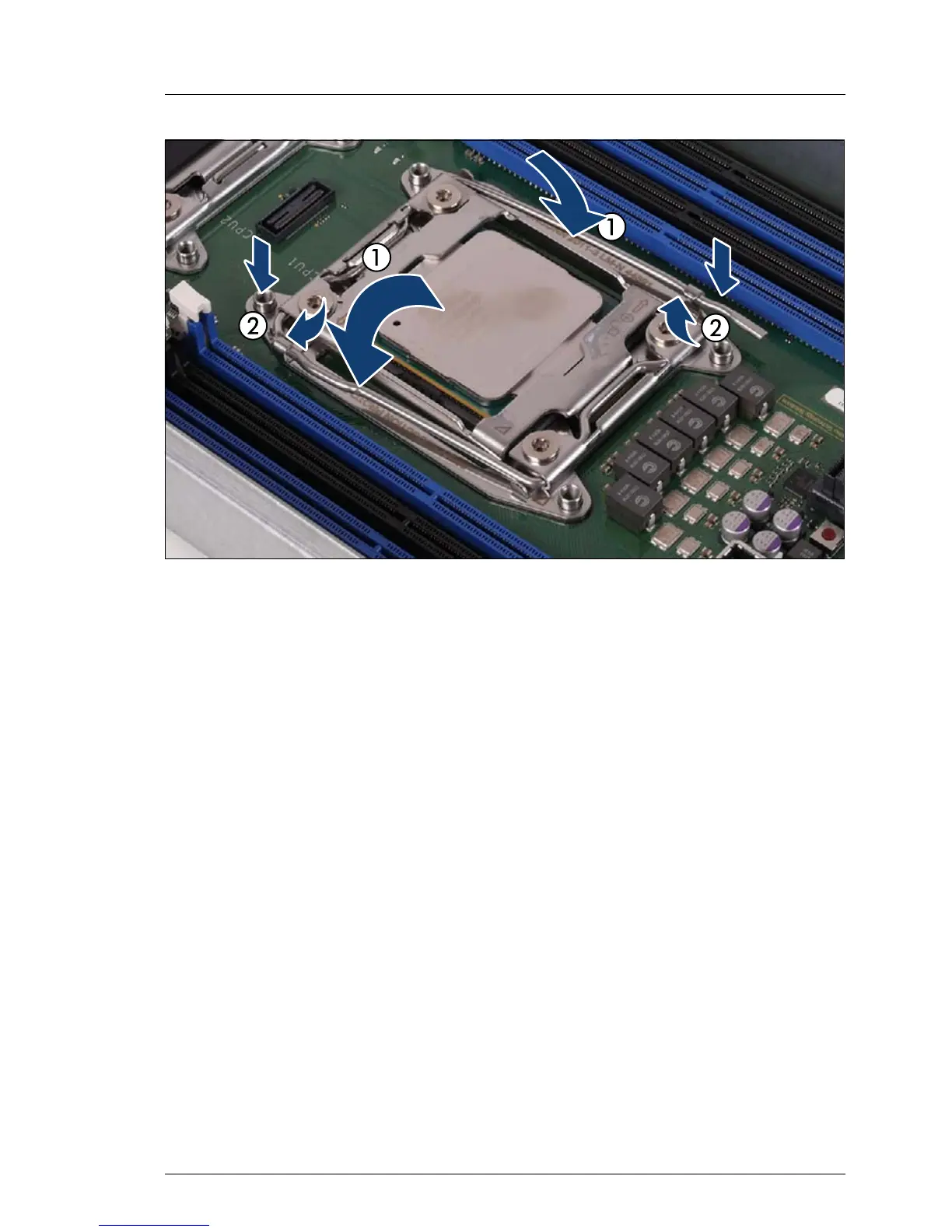

Figure 46: Closing socket release lever 1 and 2
Ê Fully close and hold shut the load plate.
Ê Close the socket release lever marked Close 1st (1) and latch it under the
load plate retention tab to lock down the load plate (2).
