12.2.2.4 LAN indicators

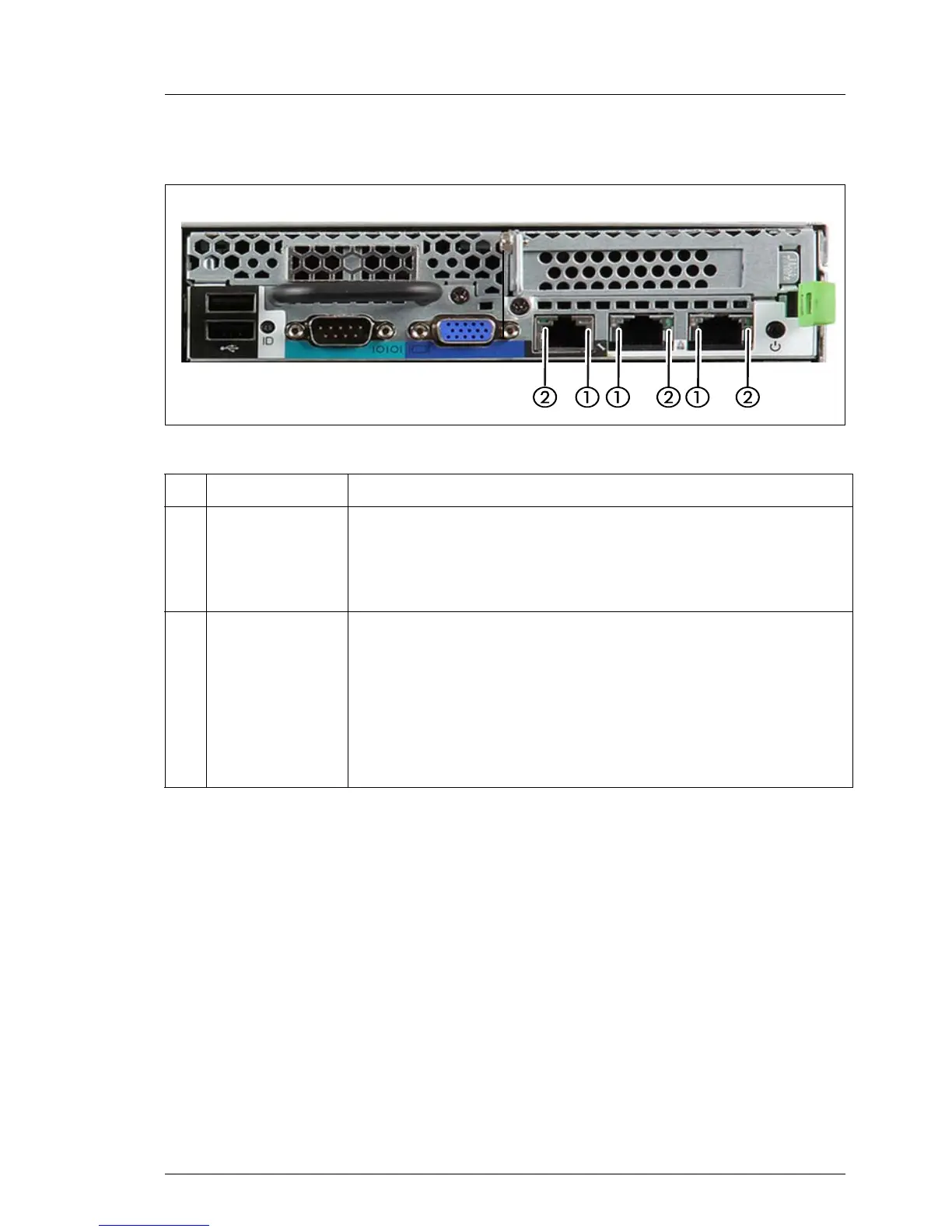

Figure 113: LAN indicators
I Depending on the settings in the BIOS, the standard LAN connector 1
may also be used as a Management LAN connector. You will find further
information in the "D3343 BIOS Setup Utility for FUJITSU Server
PRIMERGY CX2550 M1 Reference Manual".
No Indicator Description
1LAN
link/transfer
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
2 LAN speed Steady orange signal in the event of a LAN transfer rate
of 1 Gbit/s
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
