6.3.1.2 Mounting a controller to the riser module

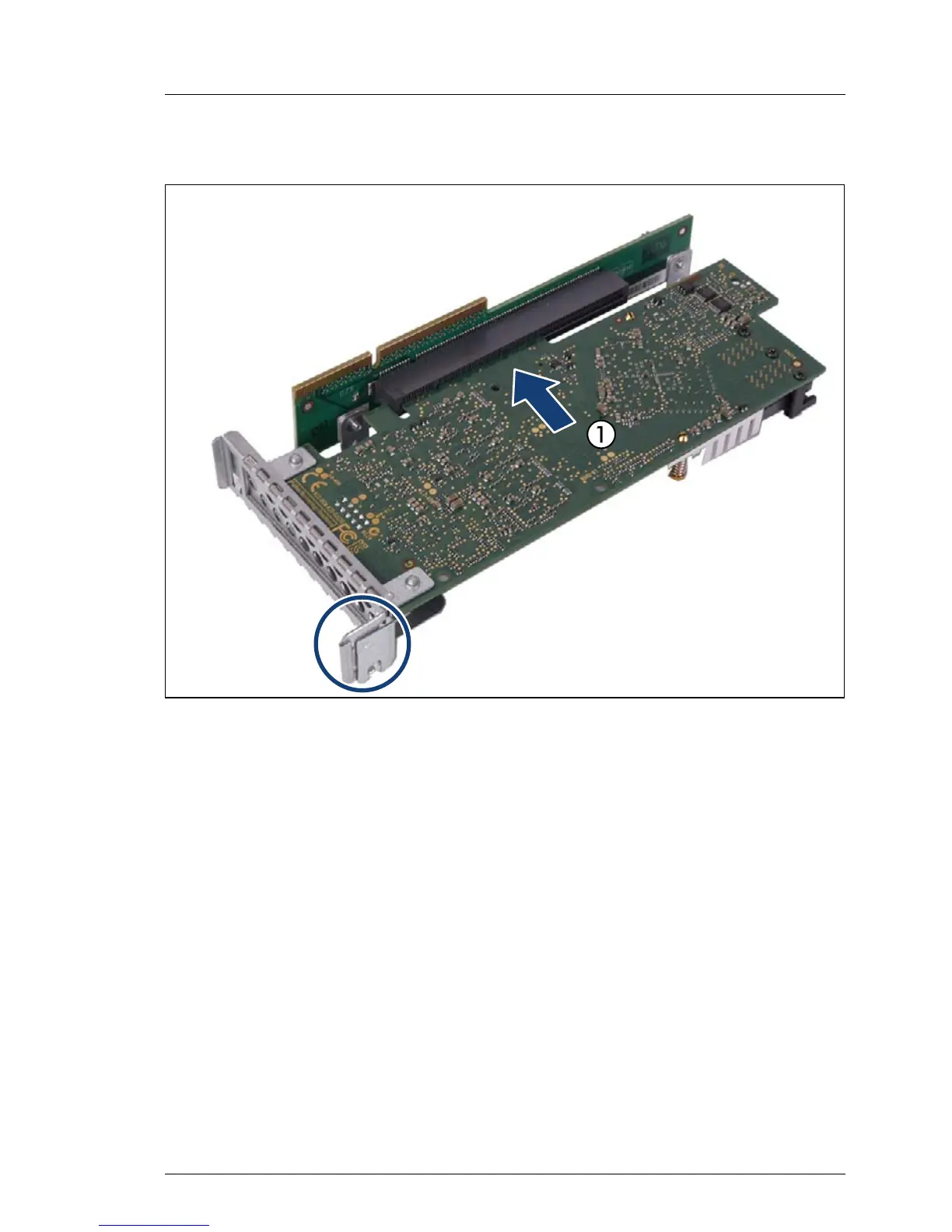

Figure 29: Mounting a controller to the riser module
Ê Plug the controller on the riser card connector (1).
I Make sure that the metal pin of the controller bracket hooks into the
recess of the riser bracket (see circle).
6.3.1.3 Concluding steps
Perform the following procedures:
Ê "Installing the riser module" on page 43
Ê "Installing the server node in the server enclosure" on page 50
Ê Reconnect all external cables.
Ê "Controls and indicators on the server node" on page 51
Ê "Updating RAID controller firmware" on page 67 (if applicable)
Ê "After replacing / upgrading LAN controllers" on page 83 (if applicable)
