Fujitsu PRIMERGY CX2550 M1 Upgrade And Maintenance Manual

CX2550 M1 Upgrade and Maintenance Manual 47
Basic hardware procedures
4.7 Removing a controller from the riser
module

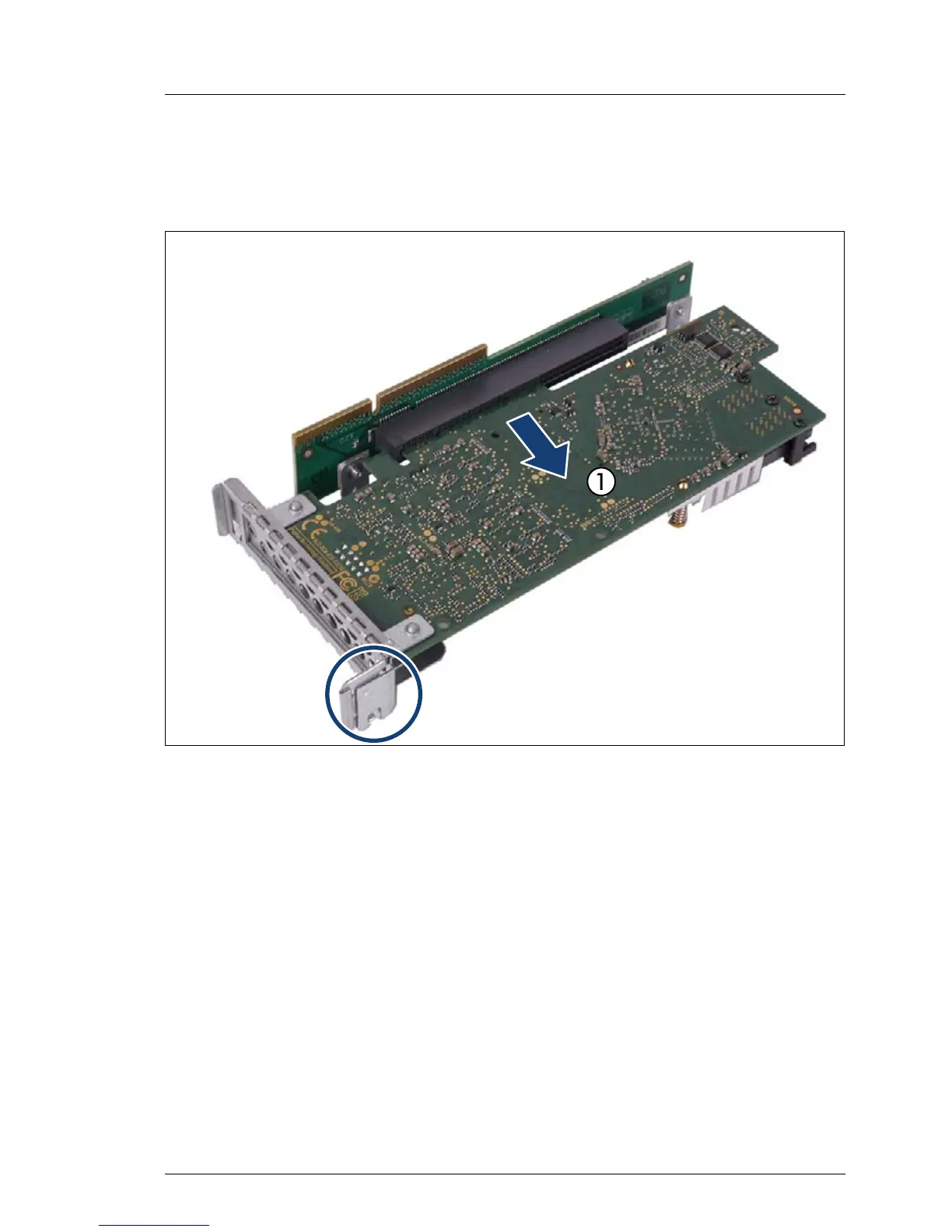

Figure 9: Removing a controller from the riser module
Ê Pull the controller out of the riser card connector (1).
I Make sure that the metal pin of the controller bracket does not get
stucked with the recess of the riser bracket (see circle).
