6.2.2 Handling SFP+ transceiver modules
6.2.2.1 Installing SFP+ transceiver modules
Preparing the SFP+ transceiver module

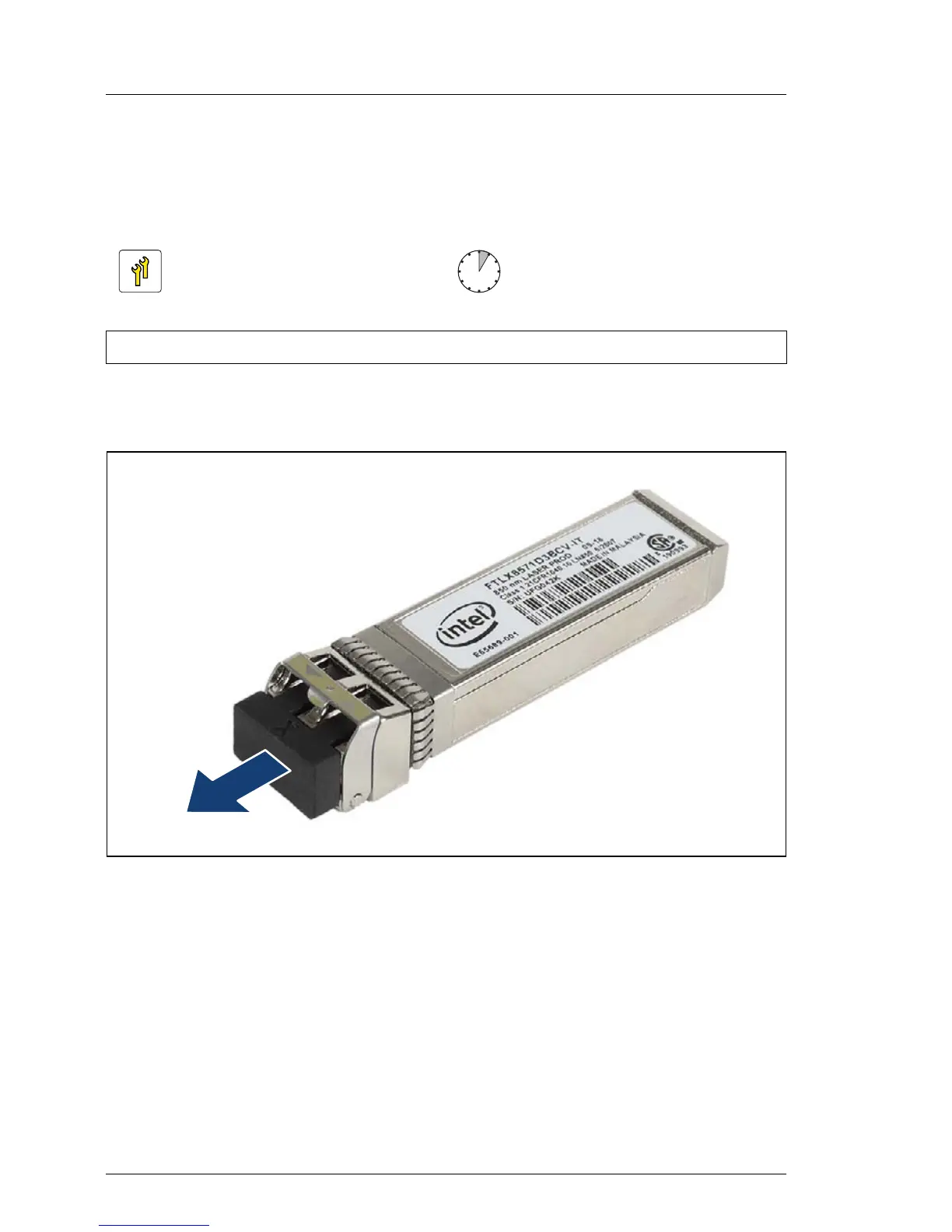

Figure 20: Removing the protective optical port plug
Ê Remove the SFP+ transceiver module from its protective packaging.
Ê Remove the optical port plug from the new / additional SFP+ transceiver
module.
V CAUTION!
– Always keep the protective port plugs attached to the transceiver
optical bores and fiber-optic cable connectors until you are ready
to make a connection.
– Save the protective port plug for future use.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
