6.4.1.2 Replacing the riser card

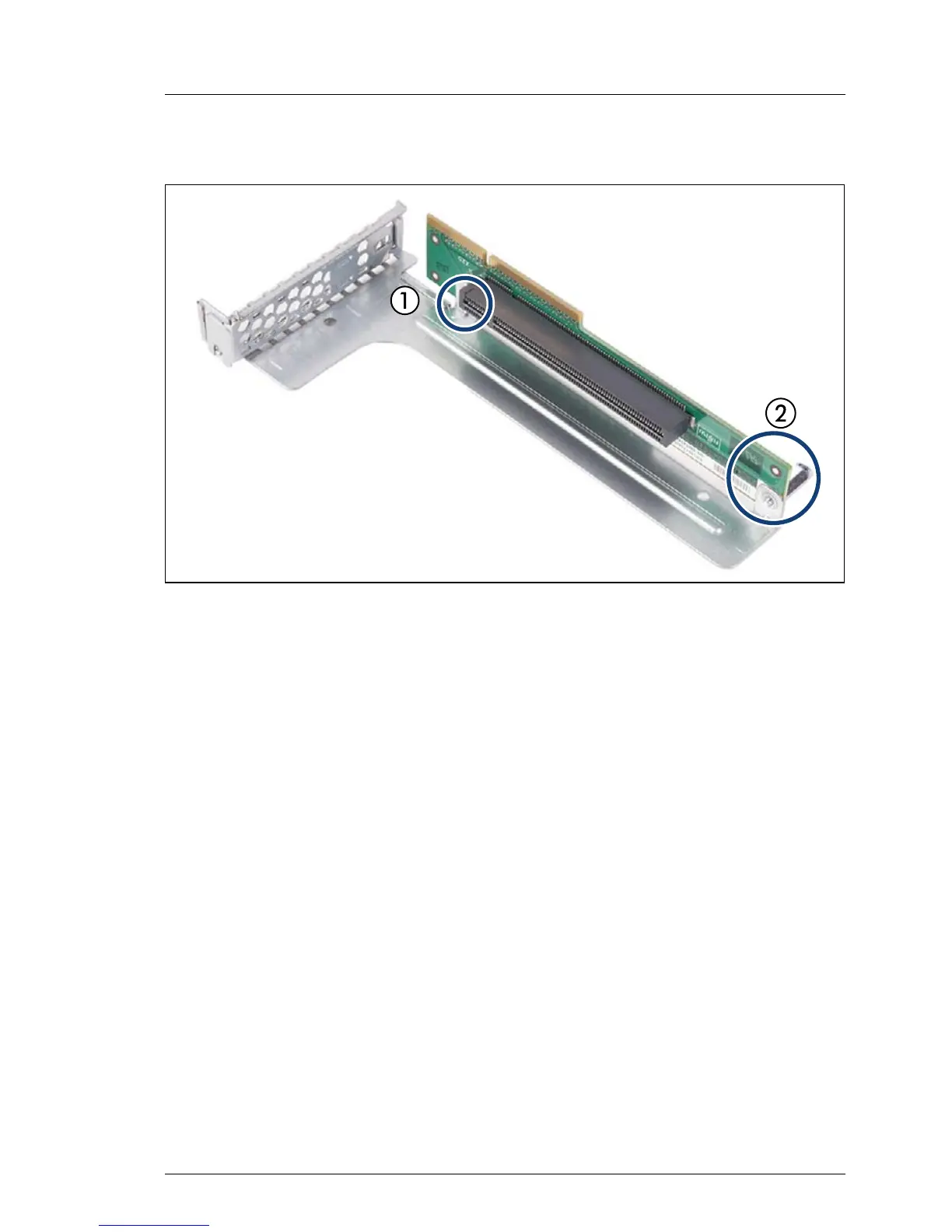

Figure 31: Replacing the riser card
The riser module consists of the riser metal bracket and the riser card.
The riser card is connected to the riser metal bracket with two rivets:
–Rivet (1).
– Rivet with bolt (2).
Ê For removing the riser card loosen the two rivets and take off the riser card.
Ê For installing the new riser card put the riser card on the riser metal bracket
and fasten the two screws.
