182 Upgrade and Maintenance Manual CX2550 M1
System board and components

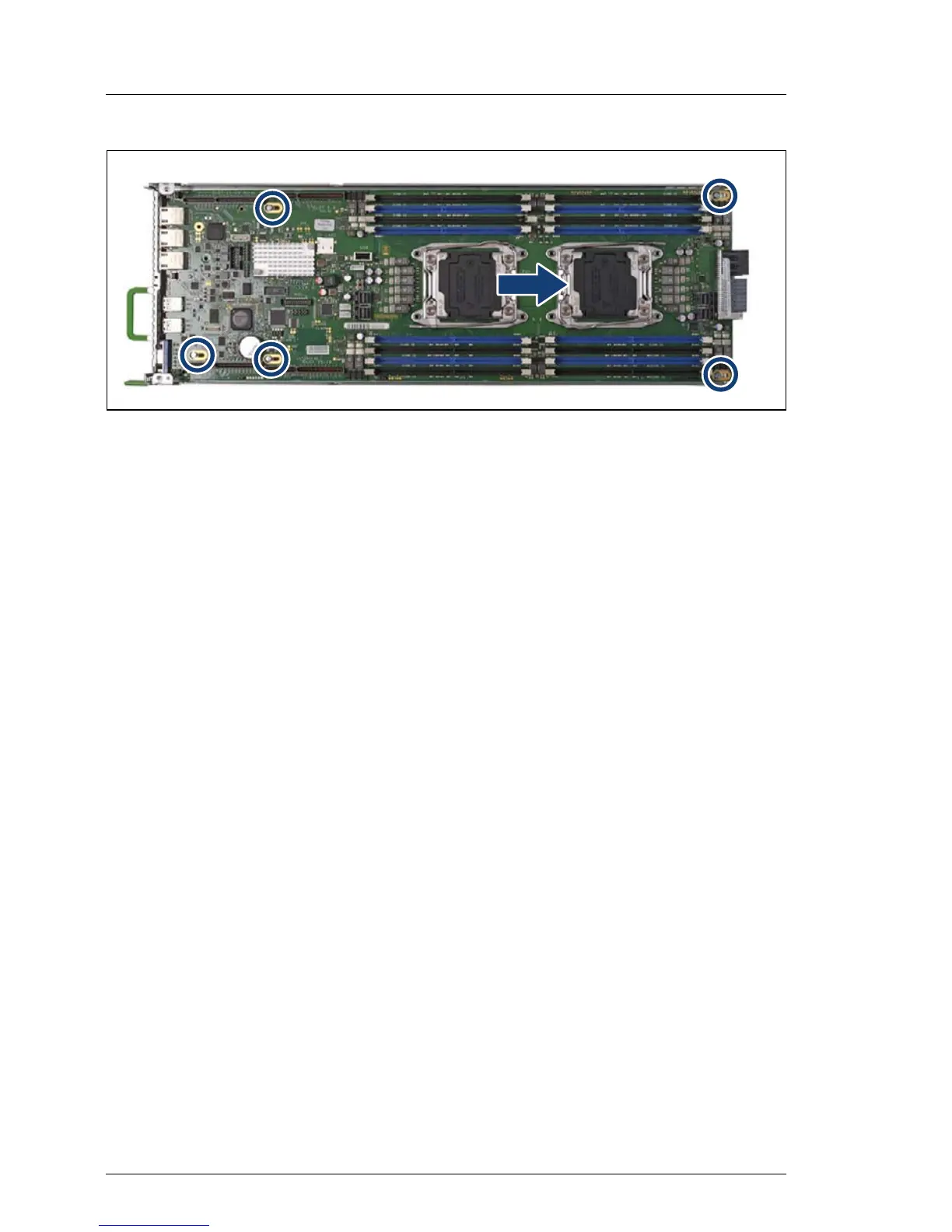

Figure 74: Removing the system board
Ê Carefully shift the system board in the direction of the arrow until the plug
shells disengage from the cut-outs in the connector panel (see circles).
Ê Hold the defective system board by the memory module ejectors and at a
slight angle lift it out of the chassis.
