CX2550 M1 Upgrade and Maintenance Manual 155
System board and components

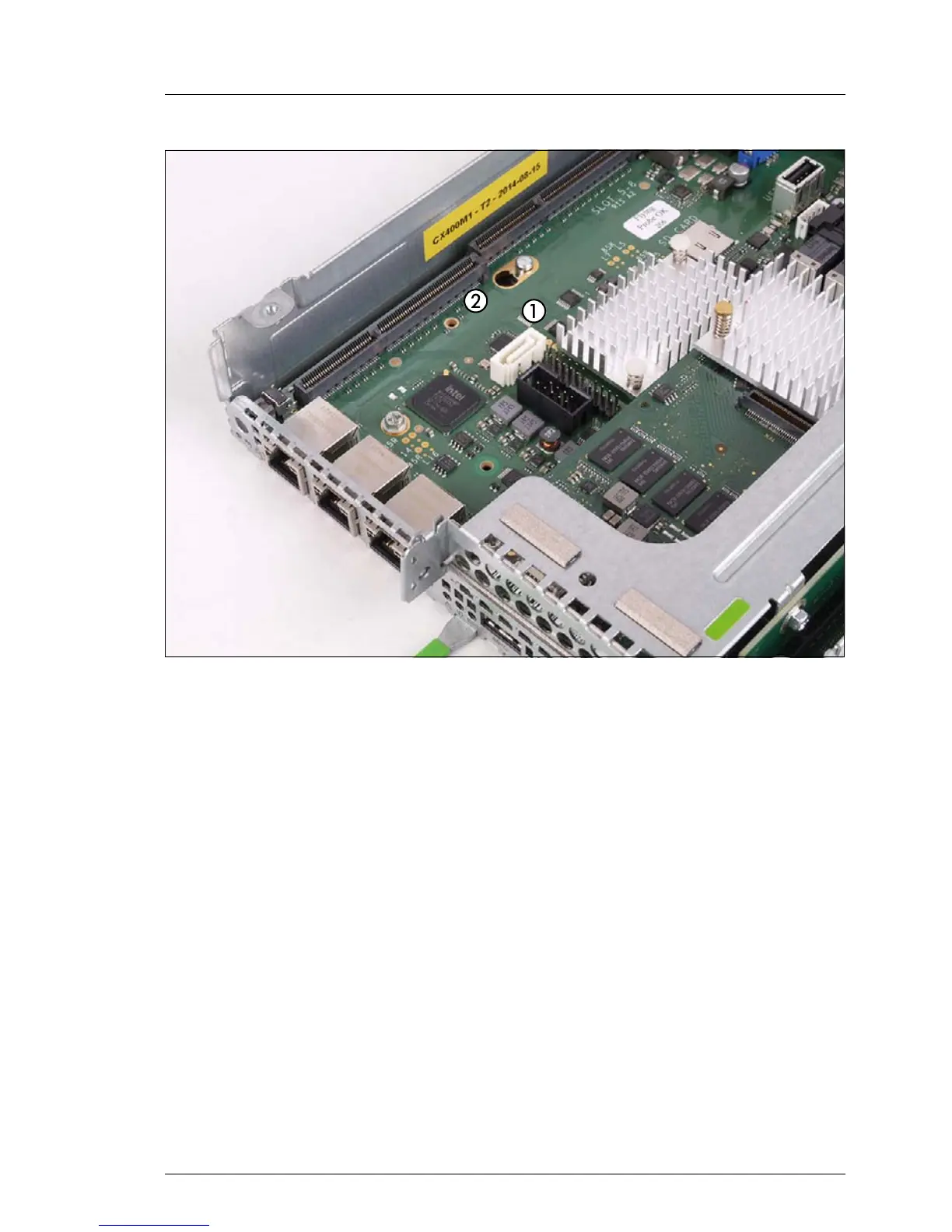

Figure 56: SATA DOM mounting location
SATA DOM mounting location on the system board:
1 SATA DOM connector
2 SATA DOM spacer
