Repair and Adjustment Procedures
Advanced Punch Service Manual © Copyright 2009 GBC. All rights reserved. 4-51
5. Remove the belts in the following order.
a. Remove the bottom left and right vertical belts [1] by walking the belts over
the pulleys.
b. Loosen the belt idler rollers [2] and remove the upper vertical belt.
c. Remove the bottom triangular belt [4].

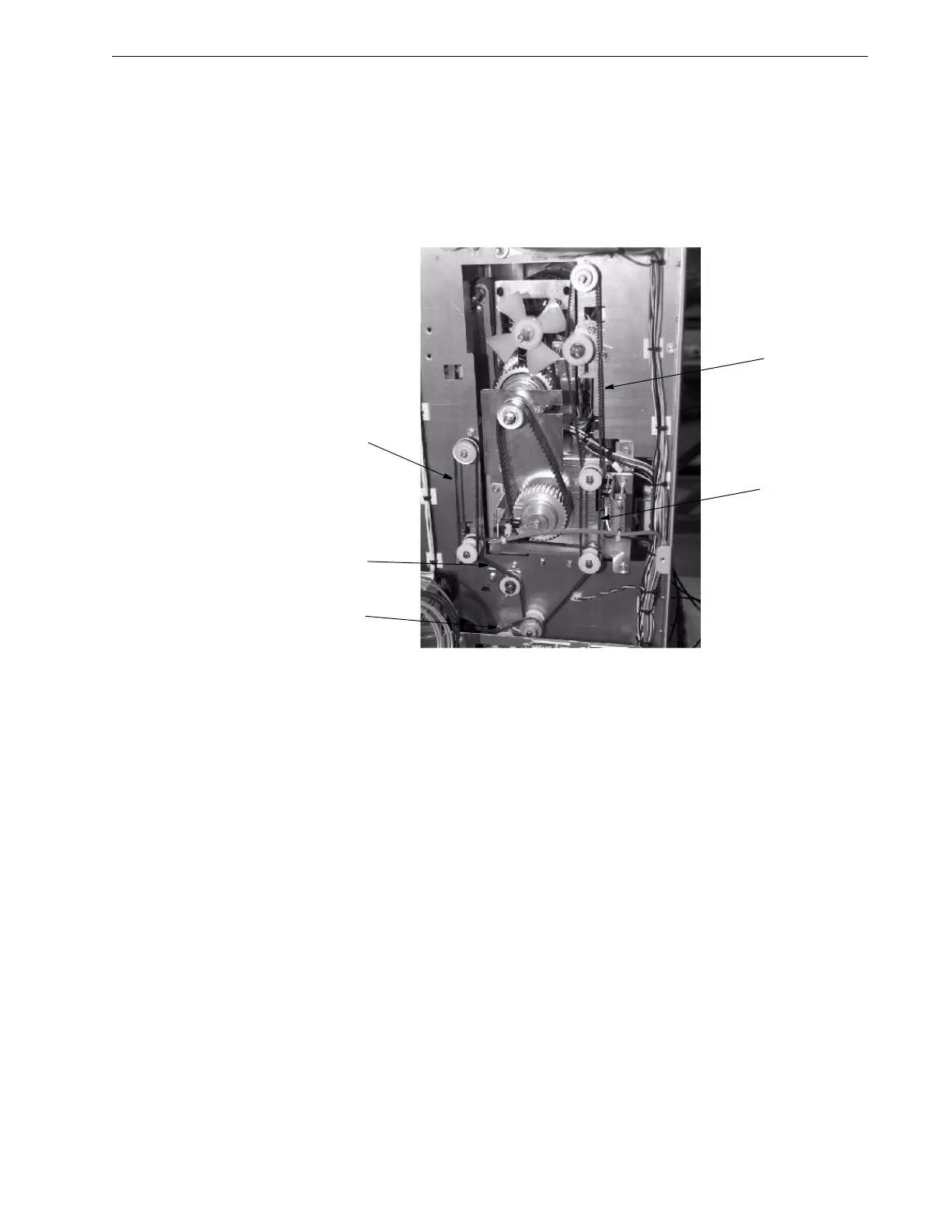

Figure 4.54 Order of Belt Removal.
[4]
[1]
[2]
[3]
[1]
