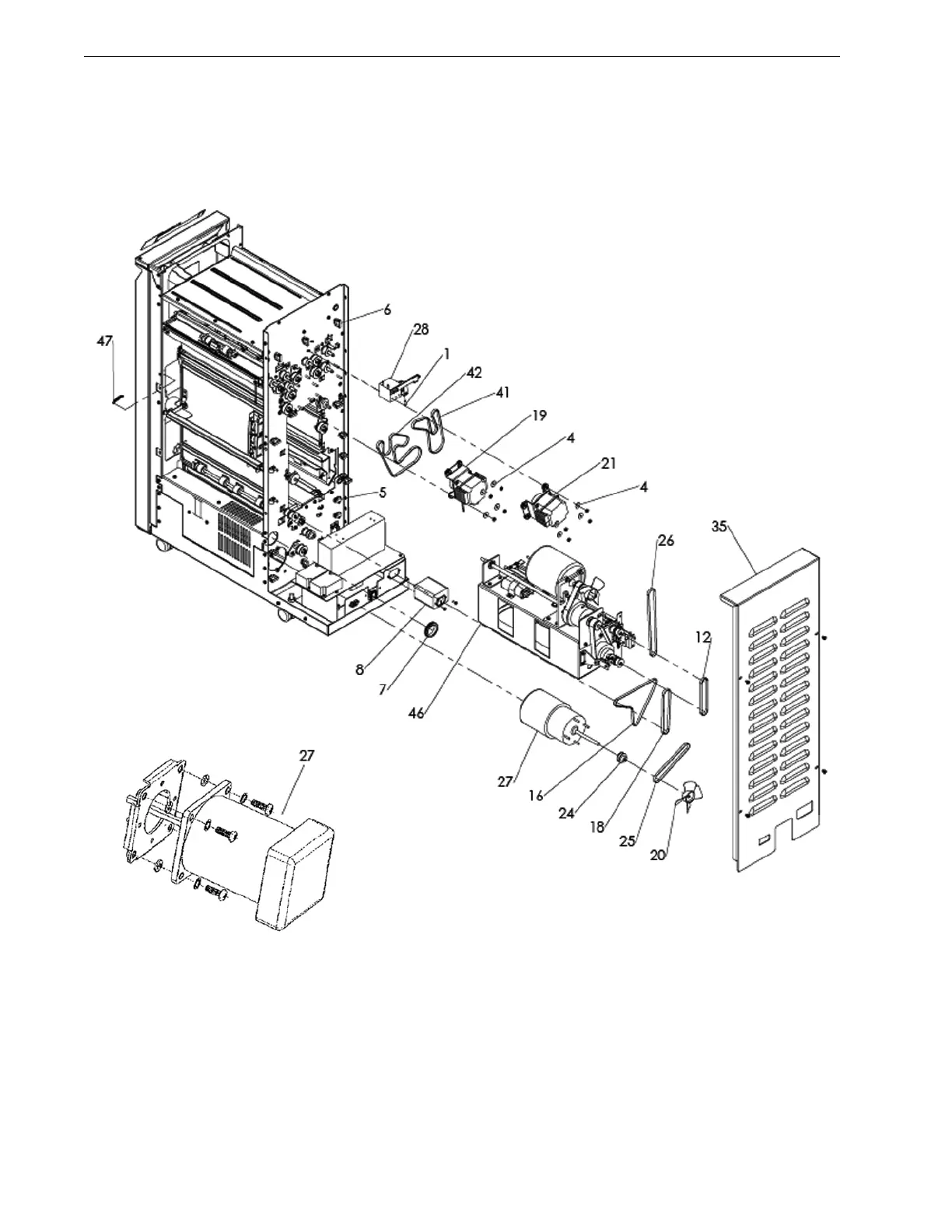

Tag #6 Transport Motor with adapter plate
Note Item 27 is a kit. The Transport Motor in the kit has an
adapter plate.
The adapter plate is used with machine serial number prior to
UAD235364 (LTR units) and prior to 308244524 (A4 units).
The adapter plate is not used and should be discarded for
machines with serial numbers from the ones listed above.
Note there are two versions of Stepper Motors used Items 19 and 21
depending on the serial number of the machine.
Note that there are two versions of the Stepper Motor Driver Boards
(reference Electronics PCB Assembly) used depending on the serial
number of the machine.
Old and new Stepper Motors-Driver Boards cannot be mixed.
