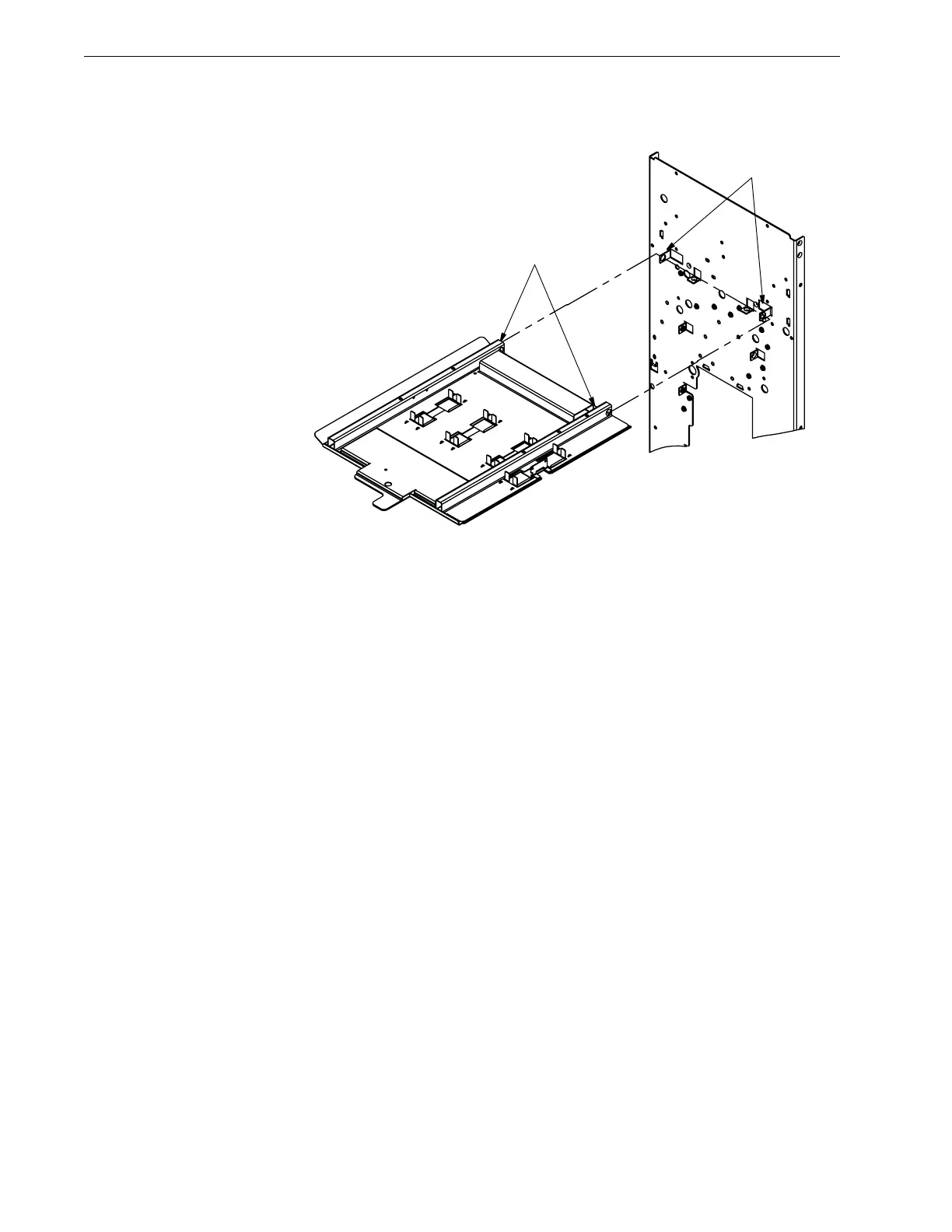

Figure 4.13 Exploded View of Bypass Panel and Mounting Brackets On the Rear Frame.
8. Remove the Bypass panel and remove all components from the old panel and
then install them on the new panel, this includes: sensors, springs, cables and
rollers.
9. To install the Bypass panel, reverse the steps.
Installation Note: Before installing the new bypass panel into the machine,
ensure that all rollers move freely within the guides in the panel. Adjust the guide
fingers as nessecary to obtain free travel. Position the Bypass panel so that it is
outside the shaft mounting brackets. The nylon bushings go through the mounting
brackets [1], into the Bypass panel [2].
