Repair and Adjustment Procedures
Advanced Punch Service Manual © Copyright 2009 GBC. All rights reserved. 4-39

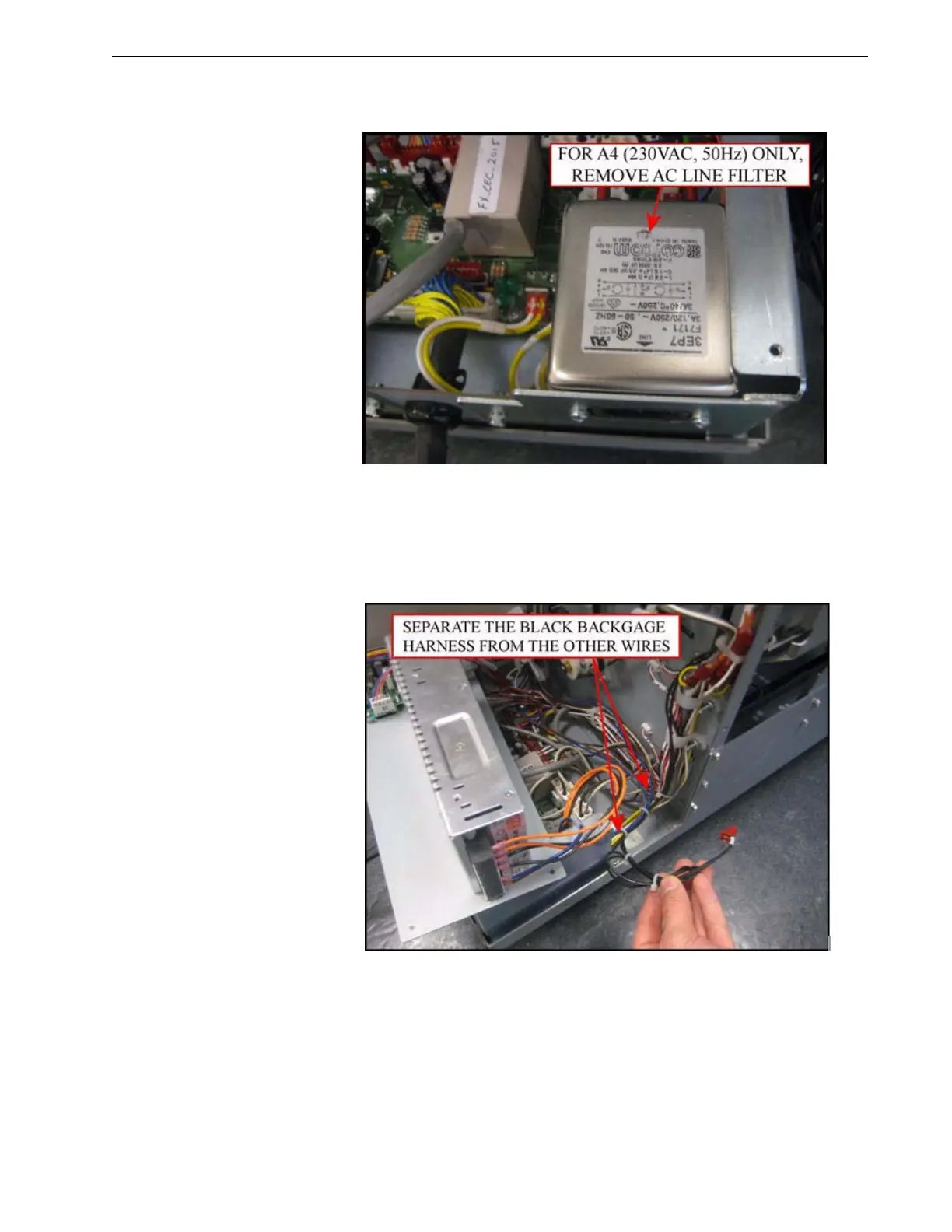

Figure 4.38 Removal of AC Line Filter
6. To remove wire harness J8 from the other cables it will be necessary to cut and
discard some wire ties. Take caution not cut or damage any wires while
performing this action. After the wire ties are removed, undress wire harness
J8 from the other cables.
Figure 4.39 Separating Backgage harness
