7. Remove the nut from both the upper and lower wire saddles in order to release
harness J8.

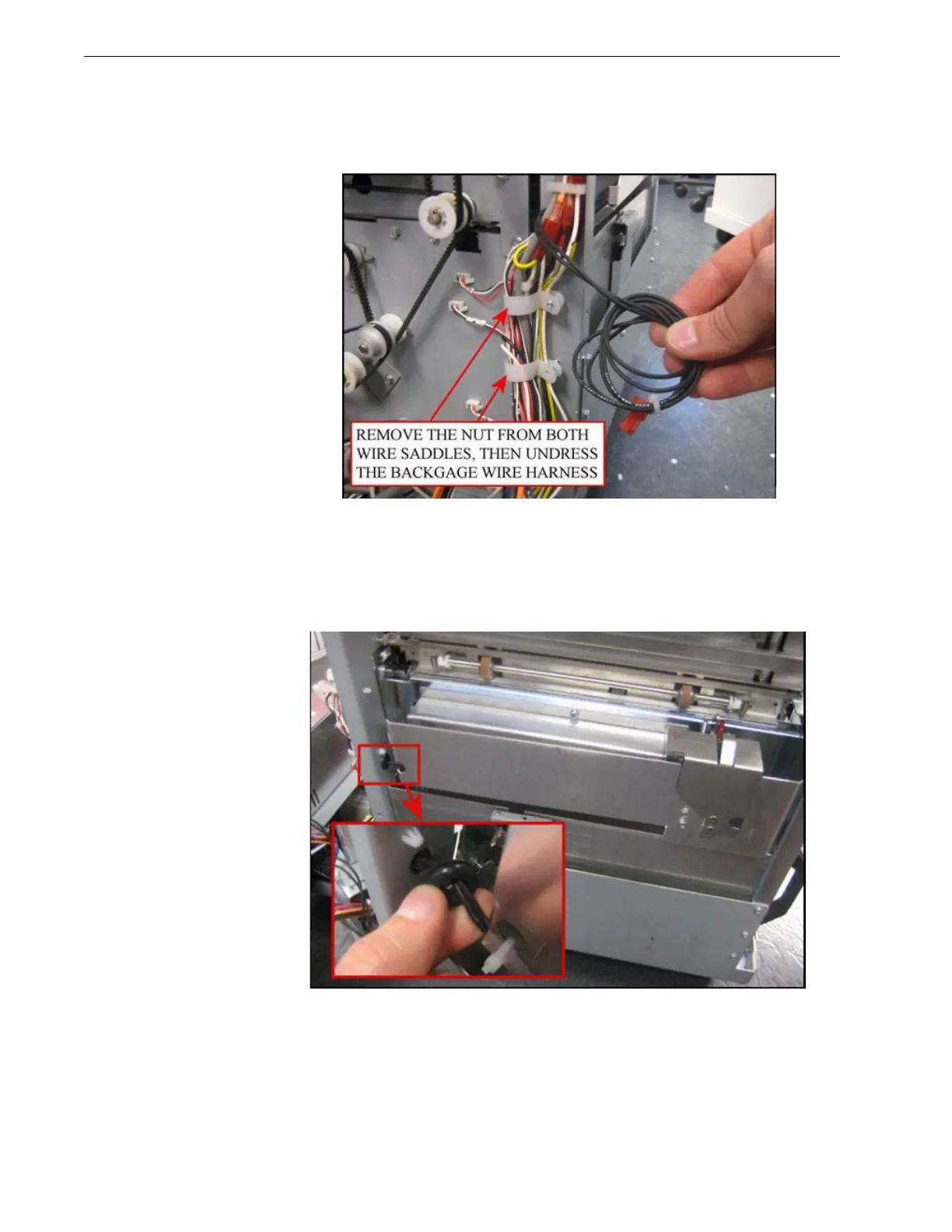

Figure 4.40 Release Harness J8
8. Locate the black rubber grommet that harness J8 passes through. Remove the
grommet from its mounting hole in the frame by pushing from one side and
pulling from the other. Once the grommet is removed from the frame pass wire
harness J8 completely through the hole so that it is free of the frame.
Figure 4.41 Removal of Grommet
