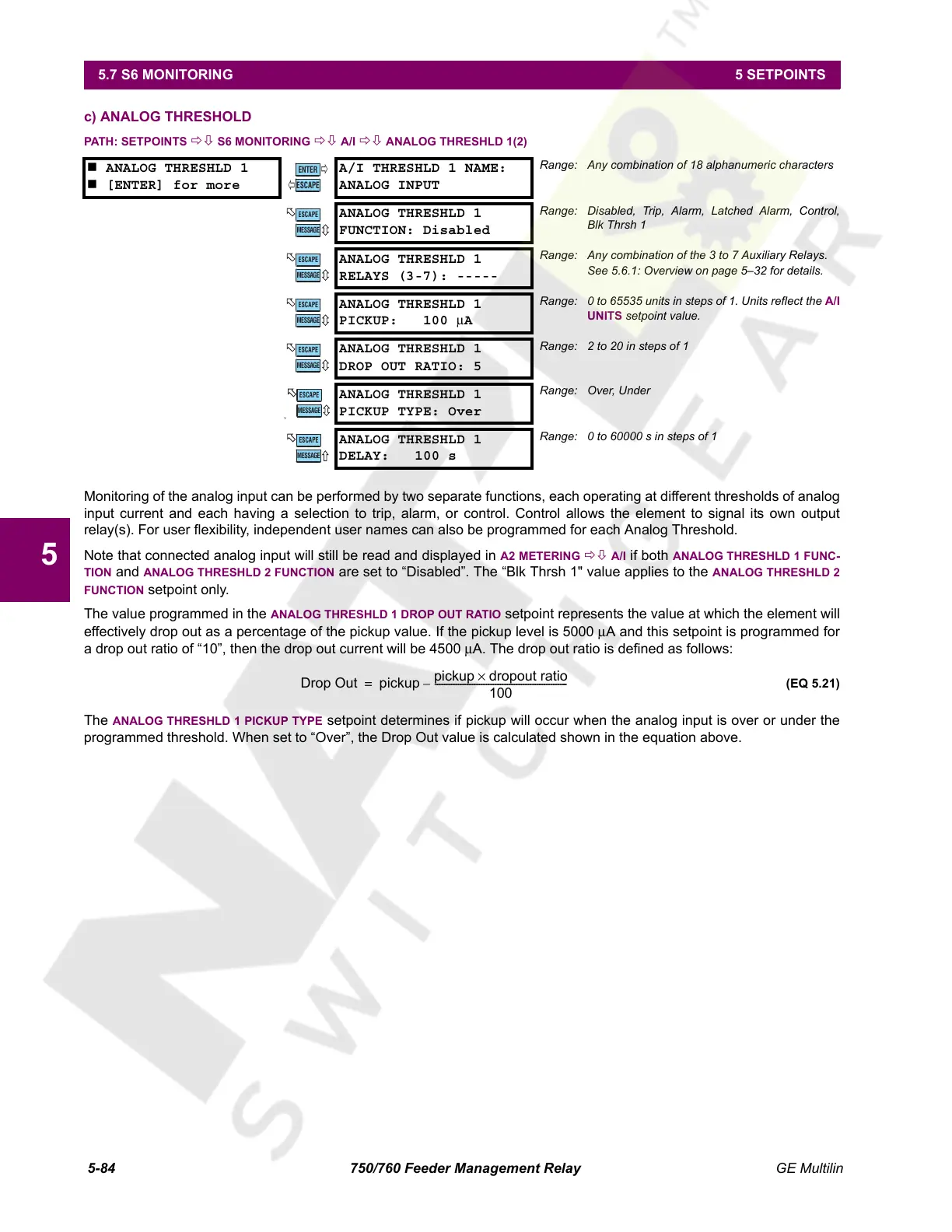

5-84 750/760 Feeder Management Relay GE Multilin
5.7 S6 MONITORING 5 SETPOINTS
5
c) ANALOG THRESHOLD
PATH: SETPOINTS ÖØ S6 MONITORING ÖØ A/I ÖØ ANALOG THRESHLD 1(2)
Monitoring of the analog input can be performed by two separate functions, each operating at different thresholds of analog
input current and each having a selection to trip, alarm, or control. Control allows the element to signal its own output
relay(s). For user flexibility, independent user names can also be programmed for each Analog Threshold.
Note that connected analog input will still be read and displayed in A2 METERING ÖØ A/I if both ANALOG THRESHLD 1 FUNC-
TION and ANALOG THRESHLD 2 FUNCTION are set to “Disabled”. The “Blk Thrsh 1" value applies to the ANALOG THRESHLD 2
FUNCTION setpoint only.
The value programmed in the
ANALOG THRESHLD 1 DROP OUT RATIO setpoint represents the value at which the element will
effectively drop out as a percentage of the pickup value. If the pickup level is 5000 μA and this setpoint is programmed for
a drop out ratio of “10”, then the drop out current will be 4500 μA. The drop out ratio is defined as follows:
(EQ 5.21)
The ANALOG THRESHLD 1 PICKUP TYPE setpoint determines if pickup will occur when the analog input is over or under the
programmed threshold. When set to “Over”, the Drop Out value is calculated shown in the equation above.
 ANALOG THRESHLD 1
 [ENTER] for more
A/I THRESHLD 1 NAME:
ANALOG INPUT
Range: Any combination of 18 alphanumeric characters
ANALOG THRESHLD 1
FUNCTION: Disabled
Range: Disabled, Trip, Alarm, Latched Alarm, Control,
Blk Thrsh 1
ANALOG THRESHLD 1
RELAYS (3-7): -----
Range: Any combination of the 3 to 7 Auxiliary Relays.
See 5.6.1: Overview on page 5–32 for details.
ANALOG THRESHLD 1
PICKUP: 100 μA
Range: 0 to 65535 units in steps of 1. Units reflect the A/I
UNITS setpoint value.
ANALOG THRESHLD 1
DROP OUT RATIO: 5
Range: 2 to 20 in steps of 1
V
ANALOG THRESHLD 1
PICKUP TYPE: Over
Range: Over, Under
ANALOG THRESHLD 1
DELAY: 100 s
Range: 0 to 60000 s in steps of 1
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
Drop Out pickup
pickup dropout ratio×
100
---------------------------------------------------------–=
