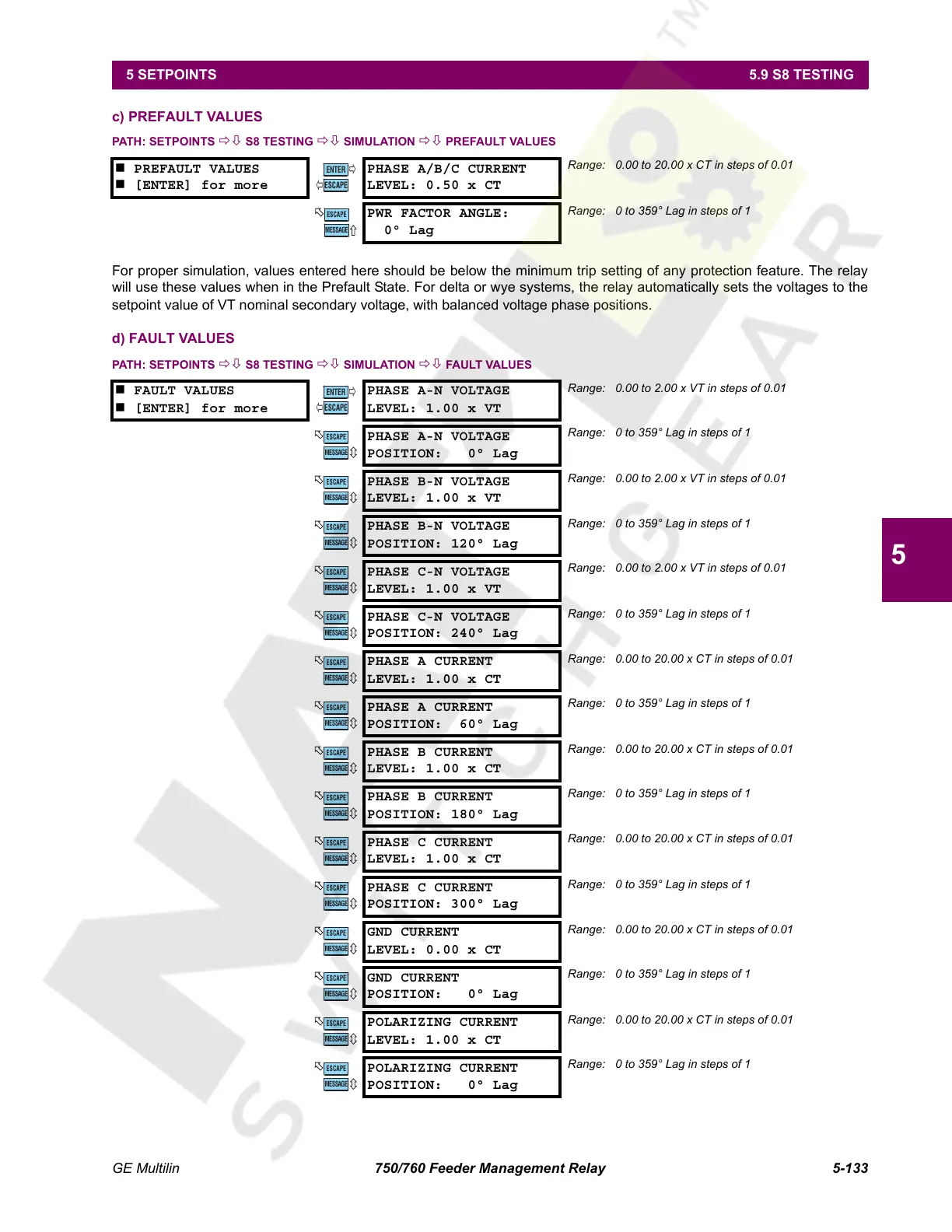

GE Multilin 750/760 Feeder Management Relay 5-133
5 SETPOINTS 5.9 S8 TESTING
5
c) PREFAULT VALUES
PATH: SETPOINTS ÖØ S8 TESTING ÖØ SIMULATION ÖØ PREFAULT VALUES
For proper simulation, values entered here should be below the minimum trip setting of any protection feature. The relay
will use these values when in the Prefault State. For delta or wye systems, the relay automatically sets the voltages to the
setpoint value of VT nominal secondary voltage, with balanced voltage phase positions.
d) FAULT VALUES
PATH: SETPOINTS ÖØ S8 TESTING ÖØ SIMULATION ÖØ FAULT VALUES
 PREFAULT VALUES
 [ENTER] for more
PHASE A/B/C CURRENT
LEVEL: 0.50 x CT
Range: 0.00 to 20.00 x CT in steps of 0.01
PWR FACTOR ANGLE:
0° Lag
Range: 0 to 359° Lag in steps of 1
 FAULT VALUES
 [ENTER] for more
PHASE A-N VOLTAGE
LEVEL: 1.00 x VT
Range: 0.00 to 2.00 x VT in steps of 0.01
PHASE A-N VOLTAGE
POSITION: 0° Lag
Range: 0 to 359° Lag in steps of 1
PHASE B-N VOLTAGE
LEVEL: 1.00 x VT
Range: 0.00 to 2.00 x VT in steps of 0.01
PHASE B-N VOLTAGE
POSITION: 120° Lag
Range: 0 to 359° Lag in steps of 1
PHASE C-N VOLTAGE
LEVEL: 1.00 x VT
Range: 0.00 to 2.00 x VT in steps of 0.01
PHASE C-N VOLTAGE
POSITION: 240° Lag
Range: 0 to 359° Lag in steps of 1
PHASE A CURRENT
LEVEL: 1.00 x CT
Range: 0.00 to 20.00 x CT in steps of 0.01
PHASE A CURRENT
POSITION: 60° Lag
Range: 0 to 359° Lag in steps of 1
PHASE B CURRENT
LEVEL: 1.00 x CT
Range: 0.00 to 20.00 x CT in steps of 0.01
PHASE B CURRENT
POSITION: 180° Lag
Range: 0 to 359° Lag in steps of 1
PHASE C CURRENT
LEVEL: 1.00 x CT
Range: 0.00 to 20.00 x CT in steps of 0.01
PHASE C CURRENT
POSITION: 300° Lag
Range: 0 to 359° Lag in steps of 1
GND CURRENT
LEVEL: 0.00 x CT
Range: 0.00 to 20.00 x CT in steps of 0.01
GND CURRENT
POSITION: 0° Lag
Range: 0 to 359° Lag in steps of 1
POLARIZING CURRENT
LEVEL: 1.00 x CT
Range: 0.00 to 20.00 x CT in steps of 0.01
POLARIZING CURRENT
POSITION: 0° Lag
Range: 0 to 359° Lag in steps of 1
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
