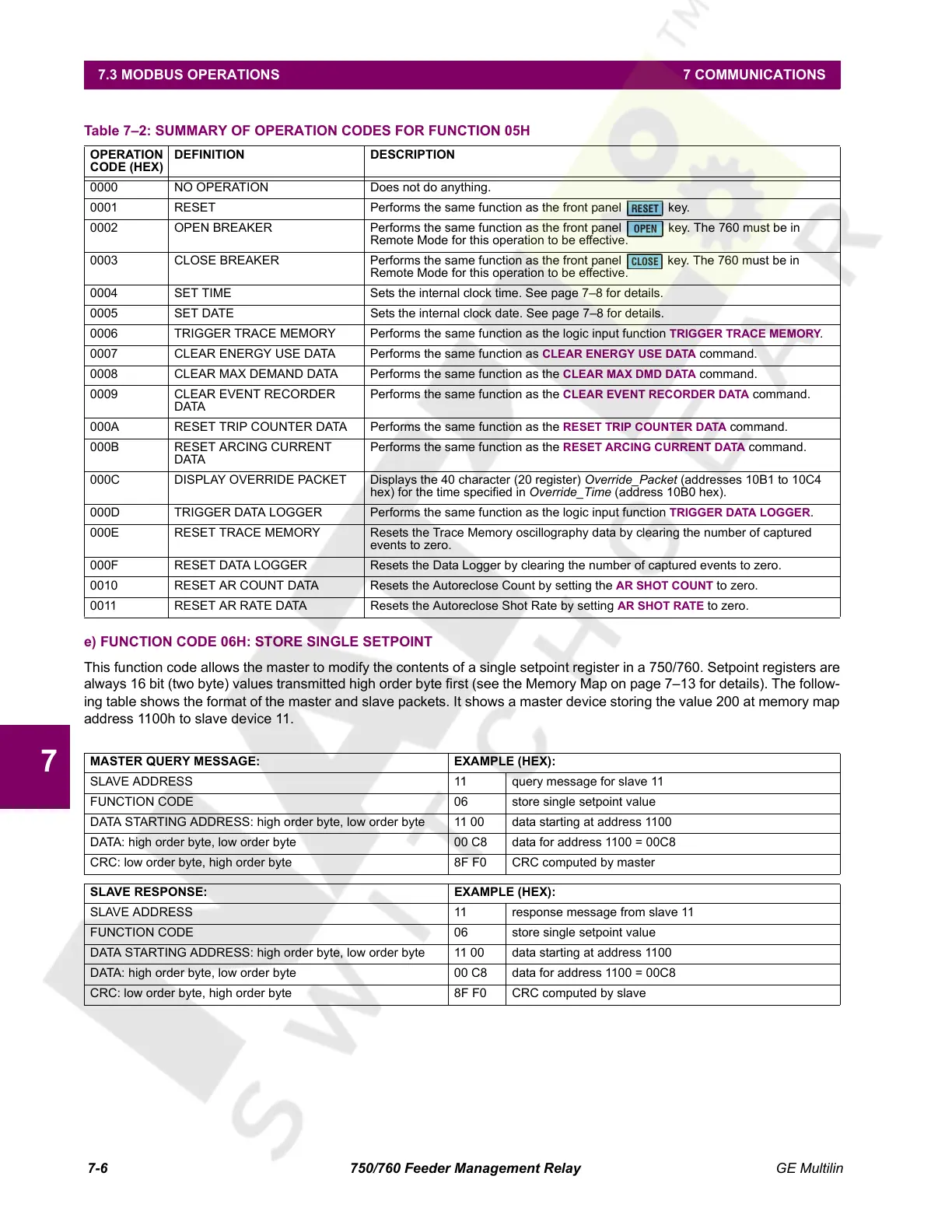

7-6 750/760 Feeder Management Relay GE Multilin
7.3 MODBUS OPERATIONS 7 COMMUNICATIONS
7
e) FUNCTION CODE 06H: STORE SINGLE SETPOINT
This function code allows the master to modify the contents of a single setpoint register in a 750/760. Setpoint registers are
always 16 bit (two byte) values transmitted high order byte first (see the Memory Map on page 7–13 for details). The follow-
ing table shows the format of the master and slave packets. It shows a master device storing the value 200 at memory map
address 1100h to slave device 11.
Table 7–2: SUMMARY OF OPERATION CODES FOR FUNCTION 05H
OPERATION
CODE (HEX)
DEFINITION DESCRIPTION
0000 NO OPERATION Does not do anything.
0001 RESET Performs the same function as the front panel key.
0002 OPEN BREAKER Performs the same function as the front panel key. The 760 must be in
Remote Mode for this operation to be effective.
0003 CLOSE BREAKER Performs the same function as the front panel key. The 760 must be in
Remote Mode for this operation to be effective.
0004 SET TIME Sets the internal clock time. See page 7–8 for details.
0005 SET DATE Sets the internal clock date. See page 7–8 for details.
0006 TRIGGER TRACE MEMORY Performs the same function as the logic input function
TRIGGER TRACE MEMORY.
0007 CLEAR ENERGY USE DATA Performs the same function as
CLEAR ENERGY USE DATA command.
0008 CLEAR MAX DEMAND DATA Performs the same function as the
CLEAR MAX DMD DATA command.
0009 CLEAR EVENT RECORDER
DATA
Performs the same function as the
CLEAR EVENT RECORDER DATA command.
000A RESET TRIP COUNTER DATA Performs the same function as the
RESET TRIP COUNTER DATA command.
000B RESET ARCING CURRENT
DATA
Performs the same function as the
RESET ARCING CURRENT DATA command.
000C DISPLAY OVERRIDE PACKET Displays the 40 character (20 register) Override_Packet (addresses 10B1 to 10C4
hex) for the time specified in Override_Time (address 10B0 hex).
000D TRIGGER DATA LOGGER Performs the same function as the logic input function
TRIGGER DATA LOGGER.
000E RESET TRACE MEMORY Resets the Trace Memory oscillography data by clearing the number of captured
events to zero.
000F RESET DATA LOGGER Resets the Data Logger by clearing the number of captured events to zero.
0010 RESET AR COUNT DATA Resets the Autoreclose Count by setting the
AR SHOT COUNT to zero.
0011 RESET AR RATE DATA Resets the Autoreclose Shot Rate by setting
AR SHOT RATE to zero.
MASTER QUERY MESSAGE: EXAMPLE (HEX):
SLAVE ADDRESS 11 query message for slave 11
FUNCTION CODE 06 store single setpoint value
DATA STARTING ADDRESS: high order byte, low order byte 11 00 data starting at address 1100
DATA: high order byte, low order byte 00 C8 data for address 1100 = 00C8
CRC: low order byte, high order byte 8F F0 CRC computed by master
SLAVE RESPONSE: EXAMPLE (HEX):
SLAVE ADDRESS 11 response message from slave 11
FUNCTION CODE 06 store single setpoint value
DATA STARTING ADDRESS: high order byte, low order byte 11 00 data starting at address 1100
DATA: high order byte, low order byte 00 C8 data for address 1100 = 00C8
CRC: low order byte, high order byte 8F F0 CRC computed by slave
RESET
OPEN
CLOSE
