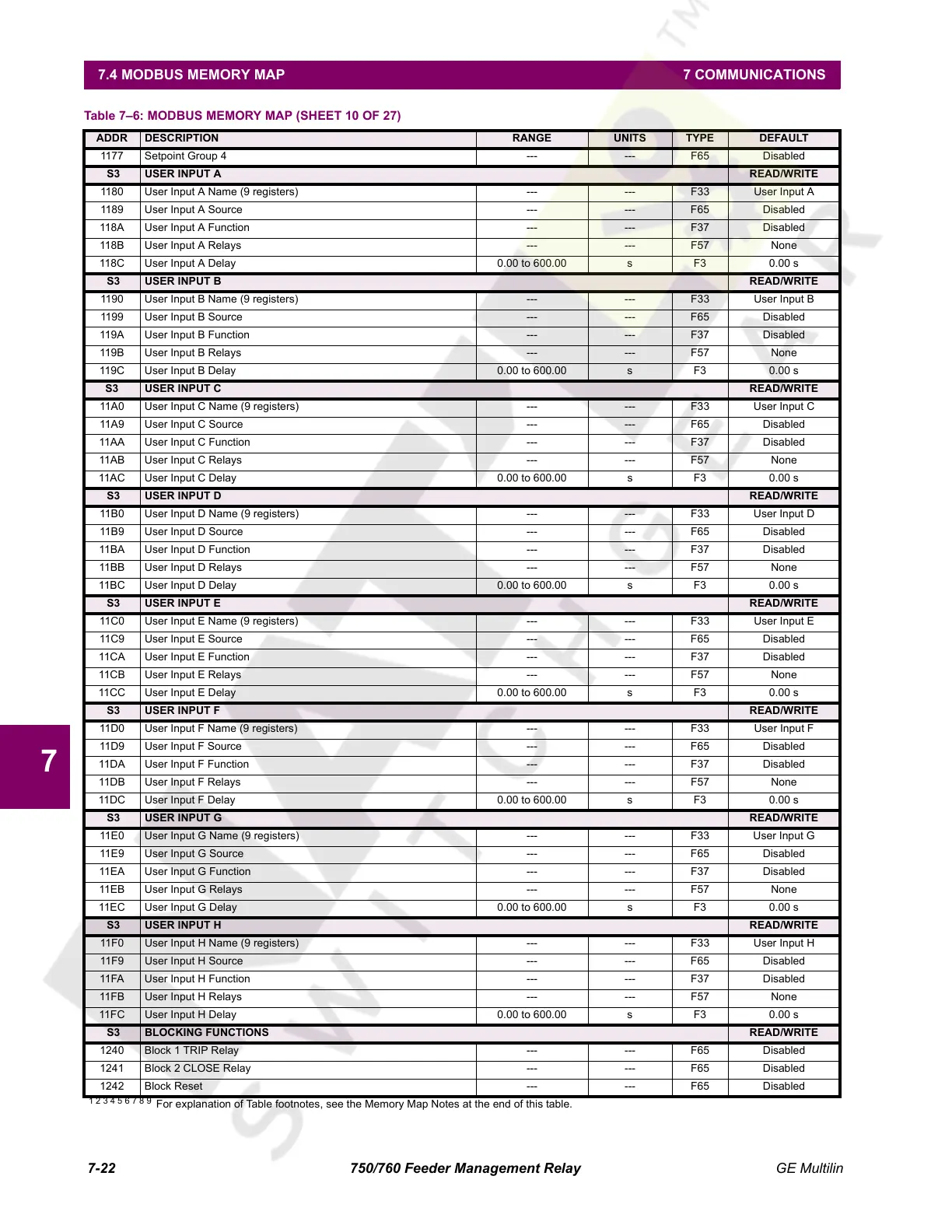

7-22 750/760 Feeder Management Relay GE Multilin
7.4 MODBUS MEMORY MAP 7 COMMUNICATIONS
7
1177 Setpoint Group 4 --- --- F65 Disabled
S3 USER INPUT A READ/WRITE
1180 User Input A Name (9 registers) --- --- F33 User Input A
1189 User Input A Source --- --- F65 Disabled
118A User Input A Function --- --- F37 Disabled
118B User Input A Relays --- --- F57 None
118C User Input A Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT B READ/WRITE
1190 User Input B Name (9 registers) --- --- F33 User Input B
1199 User Input B Source --- --- F65 Disabled
119A User Input B Function --- --- F37 Disabled
119B User Input B Relays --- --- F57 None
119C User Input B Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT C READ/WRITE
11A0 User Input C Name (9 registers) --- --- F33 User Input C
11A9 User Input C Source --- --- F65 Disabled
11AA User Input C Function --- --- F37 Disabled
11AB User Input C Relays --- --- F57 None
11AC User Input C Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT D READ/WRITE
11B0 User Input D Name (9 registers) --- --- F33 User Input D
11B9 User Input D Source --- --- F65 Disabled
11BA User Input D Function --- --- F37 Disabled
11BB User Input D Relays --- --- F57 None
11BC User Input D Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT E READ/WRITE
11C0 User Input E Name (9 registers) --- --- F33 User Input E
11C9 User Input E Source --- --- F65 Disabled
11CA User Input E Function --- --- F37 Disabled
11CB User Input E Relays --- --- F57 None
11CC User Input E Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT F READ/WRITE
11D0 User Input F Name (9 registers) --- --- F33 User Input F
11D9 User Input F Source --- --- F65 Disabled
11DA User Input F Function --- --- F37 Disabled
11DB User Input F Relays --- --- F57 None
11DC User Input F Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT G READ/WRITE
11E0 User Input G Name (9 registers) --- --- F33 User Input G
11E9 User Input G Source --- --- F65 Disabled
11EA User Input G Function --- --- F37 Disabled
11EB User Input G Relays --- --- F57 None
11EC User Input G Delay 0.00 to 600.00 s F3 0.00 s
S3 USER INPUT H READ/WRITE
11F0 User Input H Name (9 registers) --- --- F33 User Input H
11F9 User Input H Source --- --- F65 Disabled
11FA User Input H Function --- --- F37 Disabled
11FB User Input H Relays --- --- F57 None
11FC User Input H Delay 0.00 to 600.00 s F3 0.00 s
S3 BLOCKING FUNCTIONS READ/WRITE
1240 Block 1 TRIP Relay --- --- F65 Disabled
1241 Block 2 CLOSE Relay --- --- F65 Disabled
1242 Block Reset --- --- F65 Disabled
Table 7–6: MODBUS MEMORY MAP (SHEET 10 OF 27)
ADDR DESCRIPTION RANGE UNITS TYPE DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see the Memory Map Notes at the end of this table.
