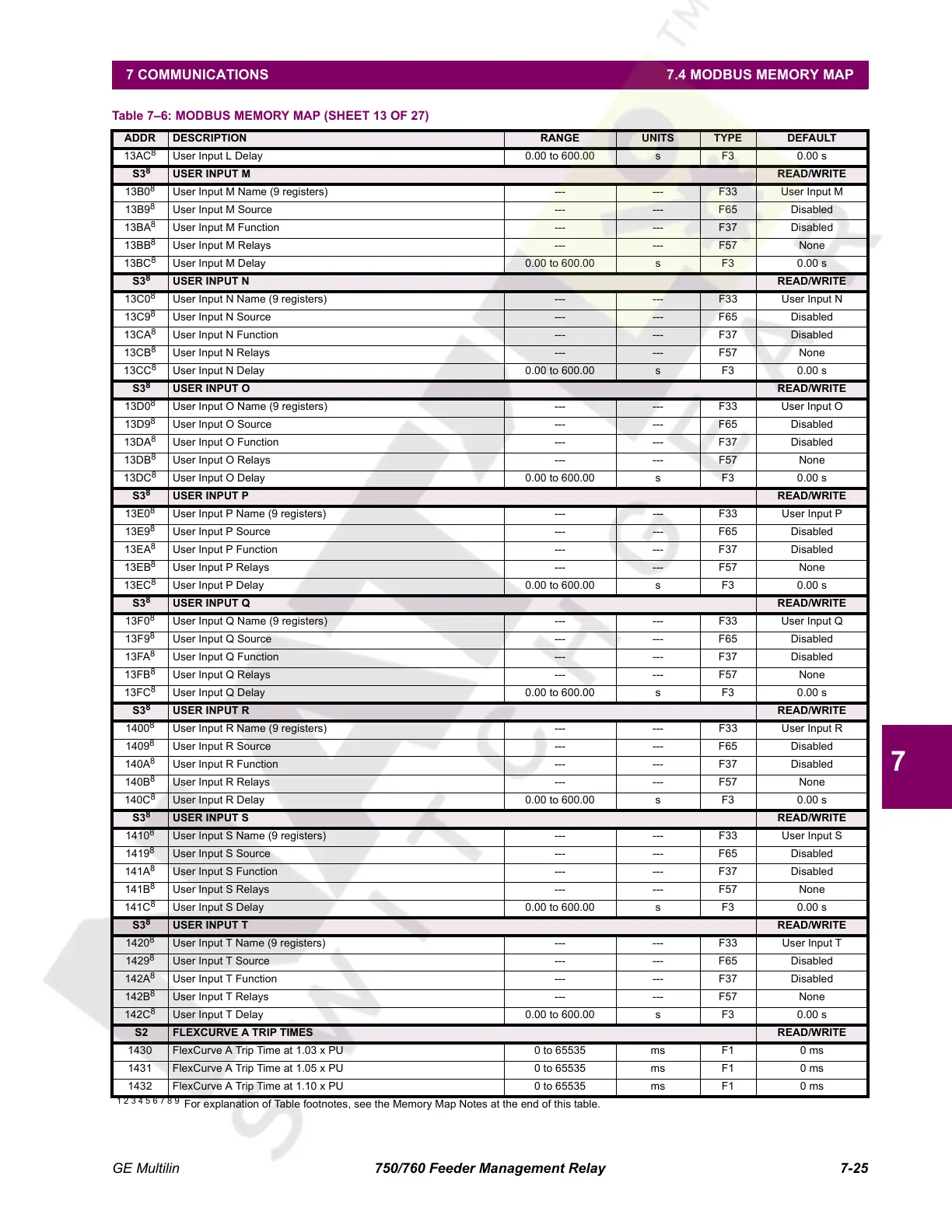

GE Multilin 750/760 Feeder Management Relay 7-25
7 COMMUNICATIONS 7.4 MODBUS MEMORY MAP
7
13AC
8
User Input L Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT M READ/WRITE
13B0
8
User Input M Name (9 registers) --- --- F33 User Input M
13B9
8
User Input M Source --- --- F65 Disabled
13BA
8
User Input M Function --- --- F37 Disabled
13BB
8
User Input M Relays --- --- F57 None
13BC
8
User Input M Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT N READ/WRITE
13C0
8
User Input N Name (9 registers) --- --- F33 User Input N
13C9
8
User Input N Source --- --- F65 Disabled
13CA
8
User Input N Function --- --- F37 Disabled
13CB
8
User Input N Relays --- --- F57 None
13CC
8
User Input N Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT O READ/WRITE
13D0
8
User Input O Name (9 registers) --- --- F33 User Input O
13D9
8
User Input O Source --- --- F65 Disabled
13DA
8
User Input O Function --- --- F37 Disabled
13DB
8
User Input O Relays --- --- F57 None
13DC
8
User Input O Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT P READ/WRITE
13E0
8
User Input P Name (9 registers) --- --- F33 User Input P
13E9
8
User Input P Source --- --- F65 Disabled
13EA
8
User Input P Function --- --- F37 Disabled
13EB
8
User Input P Relays --- --- F57 None
13EC
8
User Input P Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT Q READ/WRITE
13F0
8
User Input Q Name (9 registers) --- --- F33 User Input Q
13F9
8
User Input Q Source --- --- F65 Disabled
13FA
8
User Input Q Function --- --- F37 Disabled
13FB
8
User Input Q Relays --- --- F57 None
13FC
8
User Input Q Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT R READ/WRITE
1400
8
User Input R Name (9 registers) --- --- F33 User Input R
1409
8
User Input R Source --- --- F65 Disabled
140A
8
User Input R Function --- --- F37 Disabled
140B
8
User Input R Relays --- --- F57 None
140C
8
User Input R Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT S READ/WRITE
1410
8
User Input S Name (9 registers) --- --- F33 User Input S
1419
8
User Input S Source --- --- F65 Disabled
141A
8
User Input S Function --- --- F37 Disabled
141B
8
User Input S Relays --- --- F57 None
141C
8
User Input S Delay 0.00 to 600.00 s F3 0.00 s
S3
8
USER INPUT T READ/WRITE
1420
8
User Input T Name (9 registers) --- --- F33 User Input T
1429
8
User Input T Source --- --- F65 Disabled
142A
8
User Input T Function --- --- F37 Disabled
142B
8
User Input T Relays --- --- F57 None
142C
8
User Input T Delay 0.00 to 600.00 s F3 0.00 s
S2 FLEXCURVE A TRIP TIMES READ/WRITE
1430 FlexCurve A Trip Time at 1.03 x PU 0 to 65535 ms F1 0 ms
1431 FlexCurve A Trip Time at 1.05 x PU 0 to 65535 ms F1 0 ms
1432 FlexCurve A Trip Time at 1.10 x PU 0 to 65535 ms F1 0 ms
Table 7–6: MODBUS MEMORY MAP (SHEET 13 OF 27)
ADDR DESCRIPTION RANGE UNITS TYPE DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see the Memory Map Notes at the end of this table.
