GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 3 - Setup Instructions 3-45
3-5-6 Connecting the USB Hub
3-5-6-1 Connection directly to the Voluson i / Voluson e system
The USB Hub can be connected to the USB ports on the rear connector panel.
The USB Hub can be connected once the system is powered ON, or after shutdown.
3-5-6-2 Voluson i / Voluson e mounted on Modo Cart
The USB Hub may be connected to the USB ports on the rear of the Voluson i / Voluson e.
A power cable that extends from the power outlets of the Modo Cart´s isolation transformer should be
used to connect the power supply of the USB Hub.
3-5-6-3 Voluson i / Voluson e mounted on Dock Cart
Not available with the Dock Cart.
3-5-6-4 Voluson i / Voluson e mounted on Voluson Station
Not available with the Voluson Station.

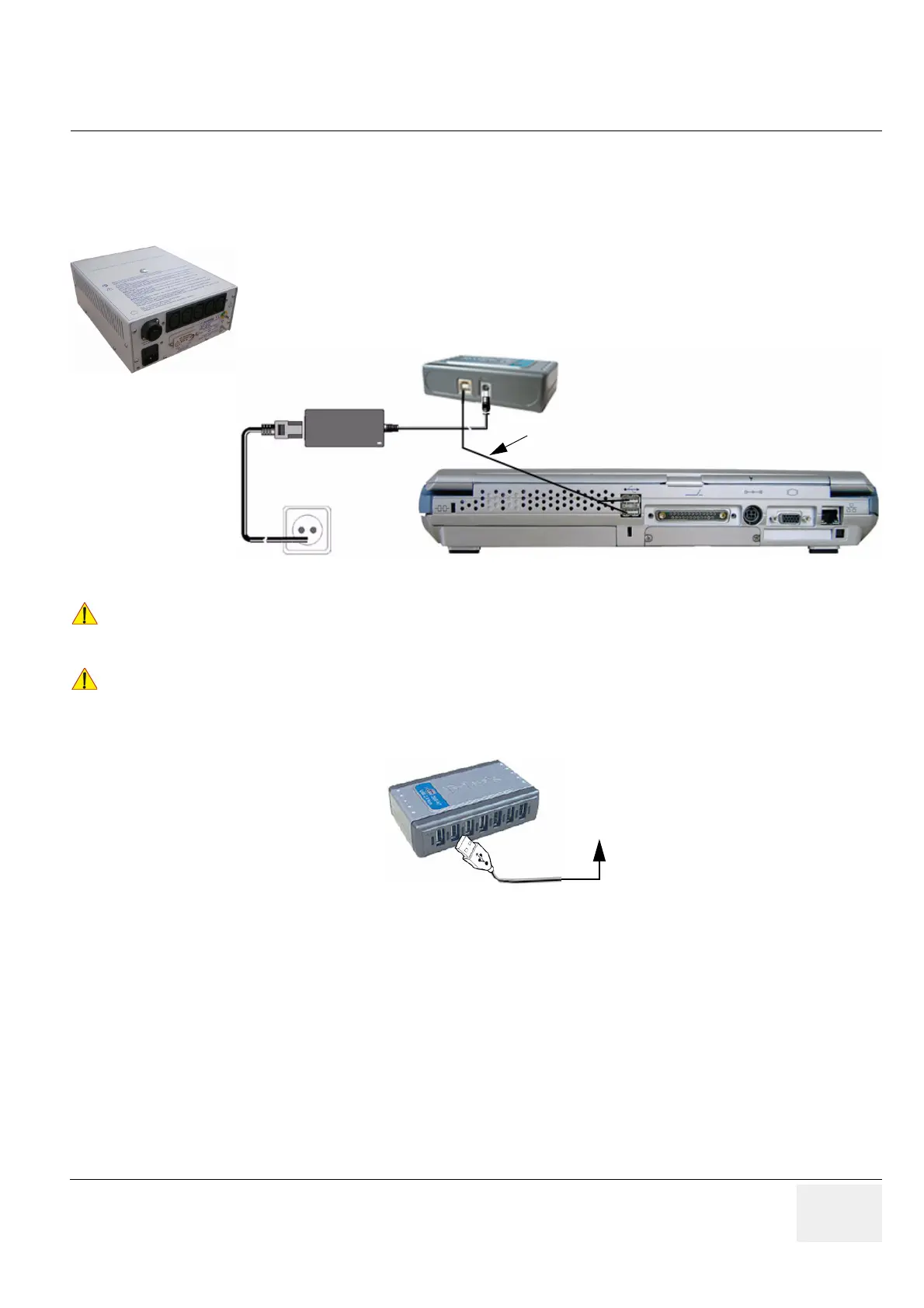

Figure 3-58 Connection Scheme - USB Hub
!! CAUTION:
When connecting directly to the system, it is necessary to use additional AC/DC power supply (supplied
with the drive). As a safety requirement, the AC/DC must be medical grade (conforming 60601-1
standard) or the safety must be ensured by the use of a medical grade isolation transformer.
!! NOTICE:
Auxiliary equipment with direct mains connection requires galvanic separation e.g. by use of a medical
grade isolation transformer.
Figure 3-59 Connection to USB Hub
Power Supply
power
socket
USB cable
isolation transformer
NOTICE: Auxiliary equipment with direct mains
connection requires galvanic
separation e.g. by use of a medical
grade isolation transformer.
