GE VOLUSON i / VOLUSON e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
8-38 Section 8-17 - Replacement of the Display Rear Cover
Section 8-17
Replacement of the Display Rear Cover
8-17-1 Manpower
One person, 70 minutes
8-17-2 Tools
Phillips screwdriver 1 and 2
8-17-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
2.) Disconnect all external USB-devices (e.g., USB printer).
3.) Remove the Battery as described in Section 8-11-4 on page 8-29.
4.) Remove the Handle as described in the Section 8-10-4 on page 8-28.
5.) Remove the Keyboard module as described in Section 8-15-4 on page 8-37.
6.) Remove the LCD Display Frame as described in Section 8-12-4 on page 8-30.
7.) Remove the LCD Display as described in Section 8-16-4 on page 8-36.
8-17-4 Display Rear Cover - Removal Procedure
1.) Carefully disconnect the Inverter cable and the microphone cable (not available with SW 8.1.2 and
higher) from the BBDI Rigid Flex.
2.) Remove the Backlight Inverter board from the Rear Cover Assembly.

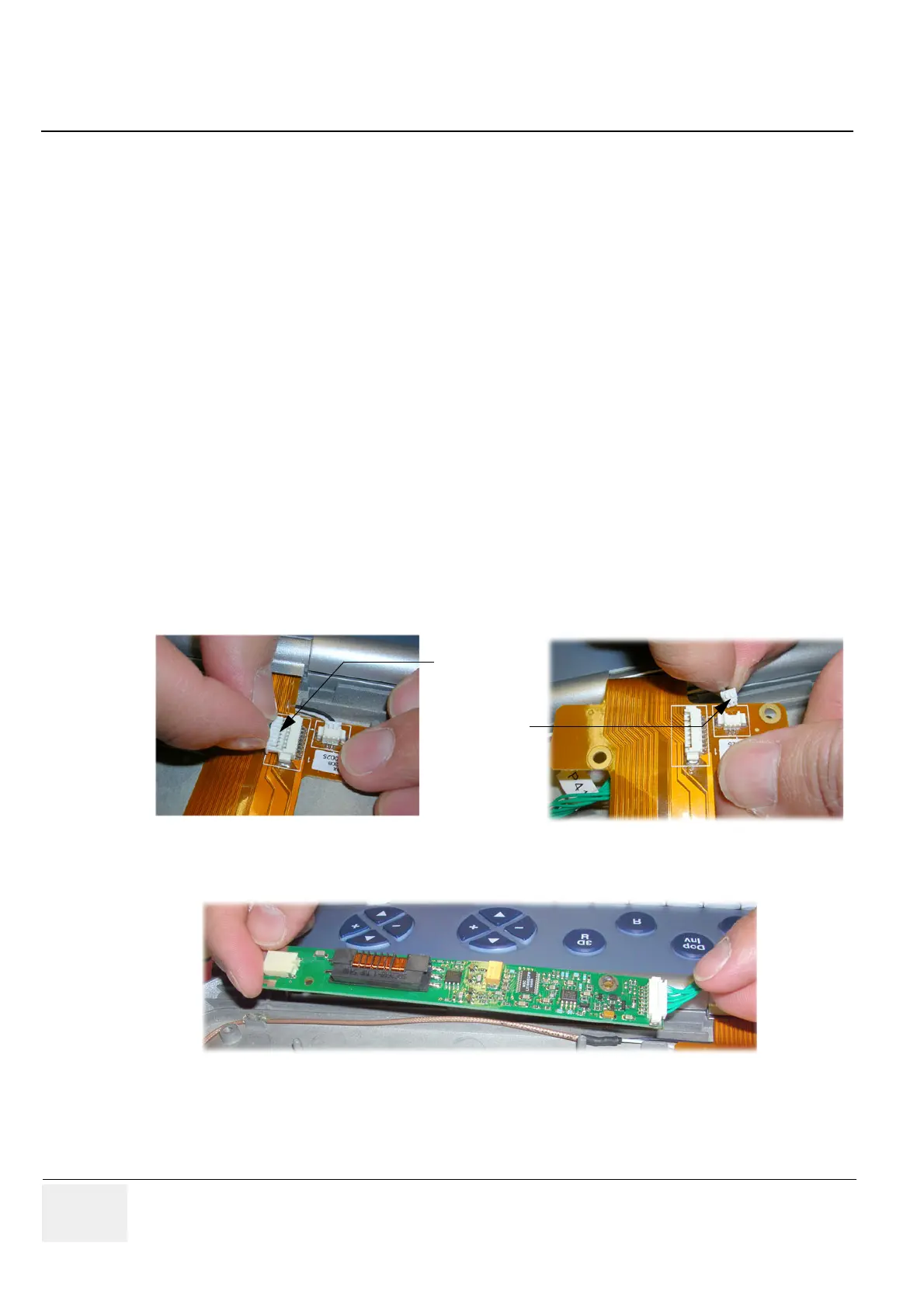

Figure 8-51 disconnect cables from Flex
Figure 8-52 remove Backlight Inverter board
Inverter cable
Micro cable
