8-18-4 Replacement of the Wheels
8-18-4-1 Manpower
Two persons, 20 minutes
8-18-4-2 Tools
flat wrench 19
8-18-4-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72
2.) Put away all Peripherals Cables.
3.) Disconnect all external USB-devices (e.g., USB printer).
4.) With one person one each side of the Modo Cart, hold on to the top and the bottom of the Modo
Cart and turn it upside down on a soft ground (e.g. soft foam plastic).
8-18-4-4 Wheels - Removal Procedure
1.) Screw off the Wheels.
2.) Remove the Wheels.
NOTE: Do not lose the washers.
8-18-4-5 Wheels - Installation Procedure
1.) Place the new Wheel and fasten it.
2.) With one person one each side turn the Modo Cart upright.

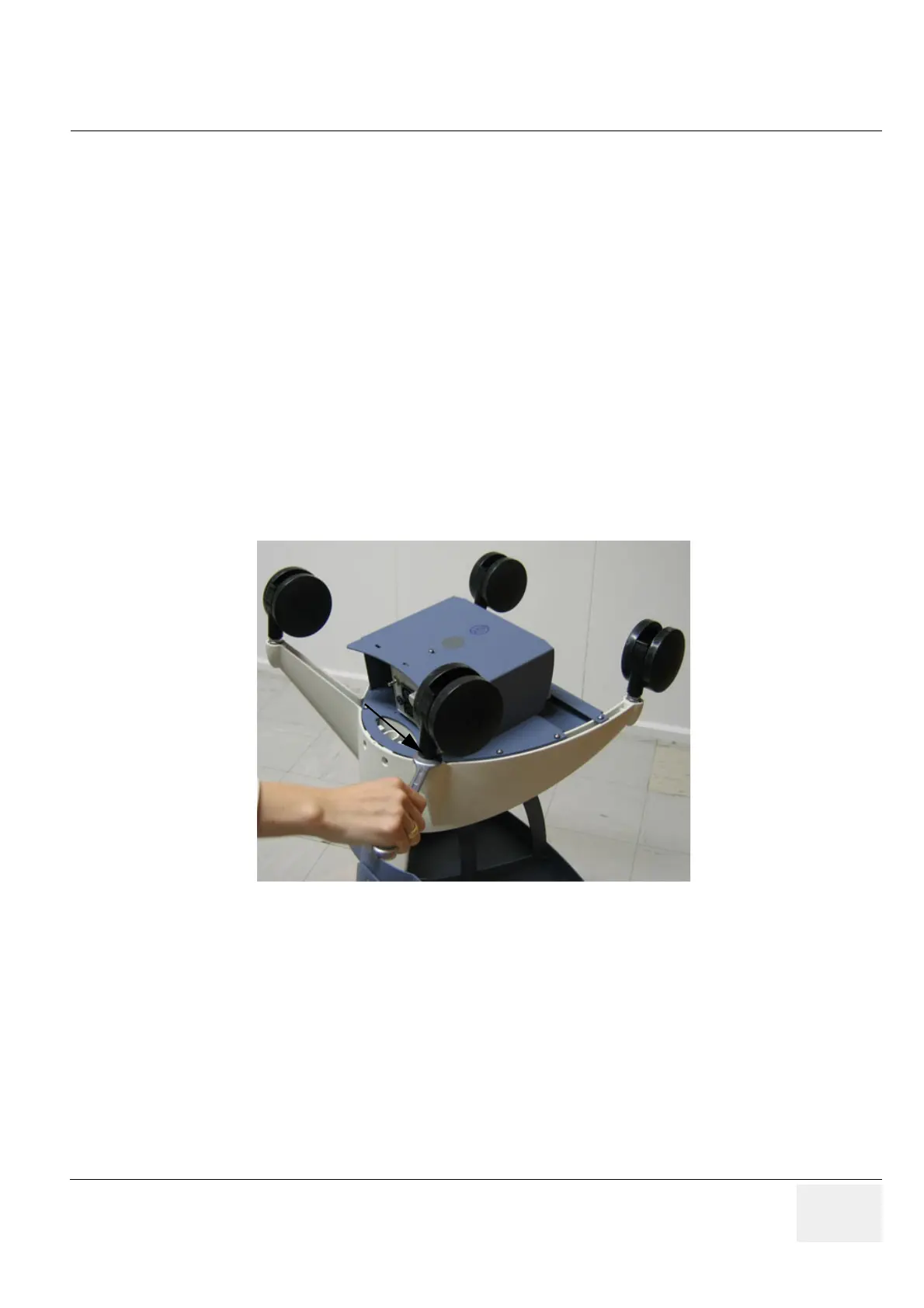

Figure 8-59 Screw off the Wheels
