Chapter 6 - Service Adjustments 6-9
Section 6-8
Voluson Station Height Adjustment
1.) Pull the lever on the rear side of the Cart upwards to adjust the height of the Voluson Station.
The Top Shelf will raise automatically.
2.) To lower the Top Shelf push the shelf downwards with both hands while pulling lever.
CAUTION
!! CAUTION:
Only adjust the height of the Voluson Station without the Voluson i / Voluson e and
any peripherals mounted.
CAUTION
!! CAUTION:
Be careful not to squeeze your fingers when adjusting the height of the Voluson Station.

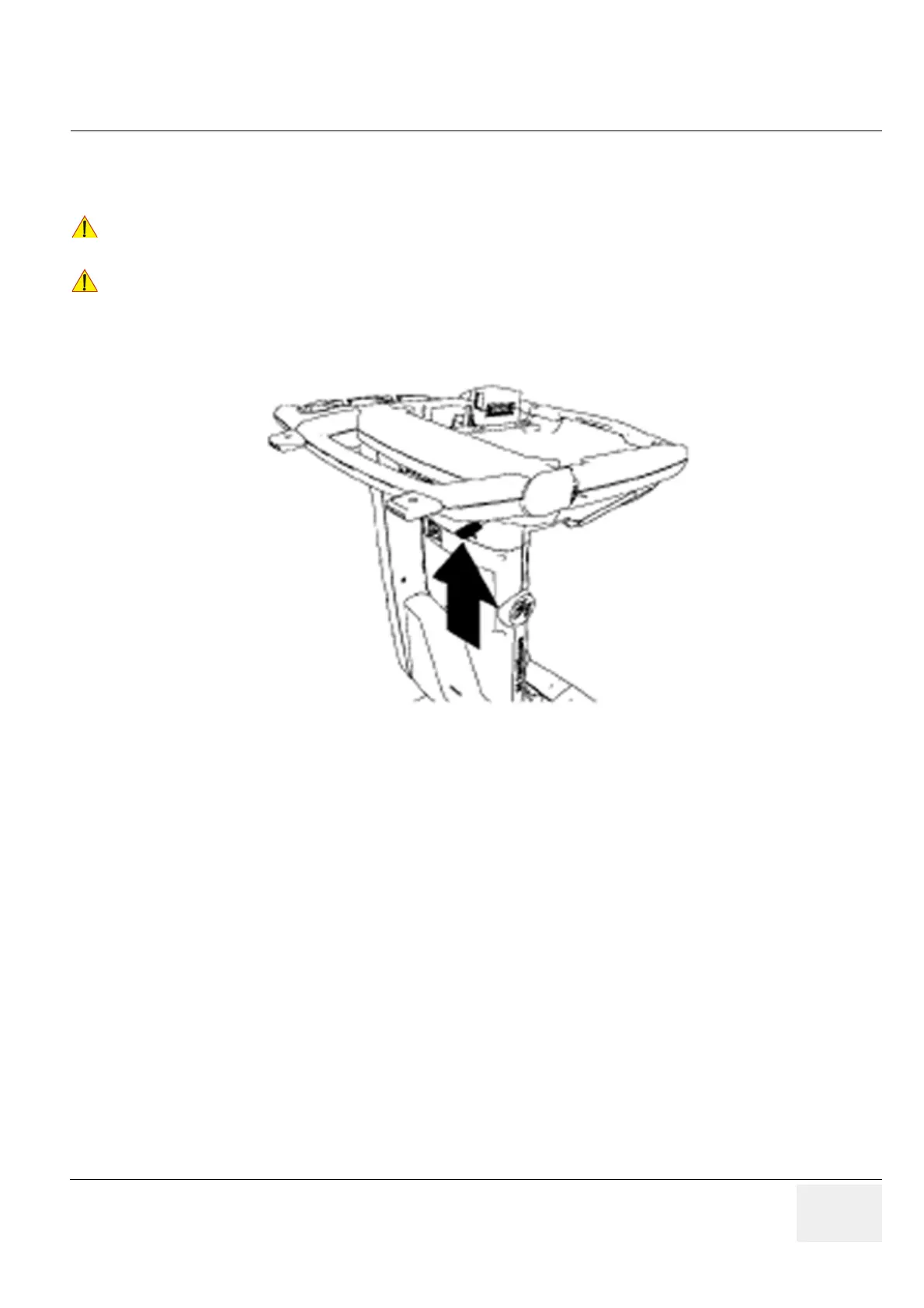

Figure 6-10 Pull the lever on the rear side of the cart upwards
