3-12 Section 3-4 - Preparing for Set Up
3-4-1-1 Front and Side View of the Voluson i / Voluson e System
Figure 3-8 below shows the Voluson i / Voluson e portable ultrasound system components that are
visible from the front and side of the ultrasound unit.

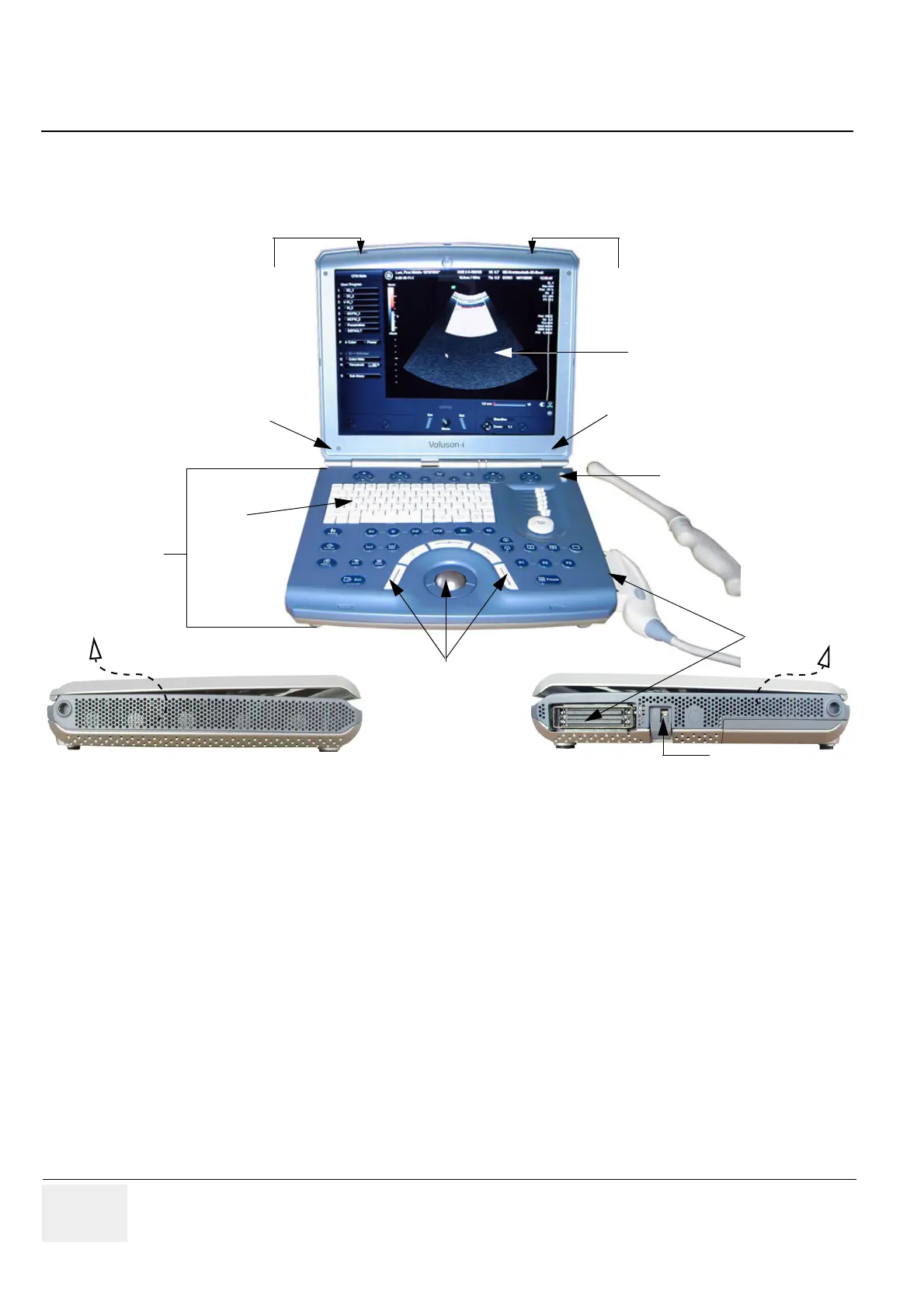

Figure 3-8 Front and Side View of the Voluson i / Voluson e
1 Display LCD Monitor: tilts up and down
2 Speakers: two loudspeakers for Doppler sound
3 Control Panel: contains TGC slider controls, trackball, alphanumeric
keyboard and different buttons used to operate the Voluson i / Voluson e
4 Alphanumeric Keyboard (upper row of keys are assigned to ultrasound-
specific functions)
5 Trackball and Trackball buttons
6Air Vents
7 Probe Port: one active probe connector
8 Probe Locking Lever
9 ON/OFF Switch
10 Release Latches
