GE Voluson i BT06 - Trackball - Impaired Sensitivity

To Next Page

To Previous Page

GE VOLUSON

i / VOLUSON

IRECTION KTI106052, REVISION 10 SERVICE MANUAL

7-22 Section 7-8 - Troubleshooting Trees and Instructions

7-8-3 Trackball - Impaired Sensitivity

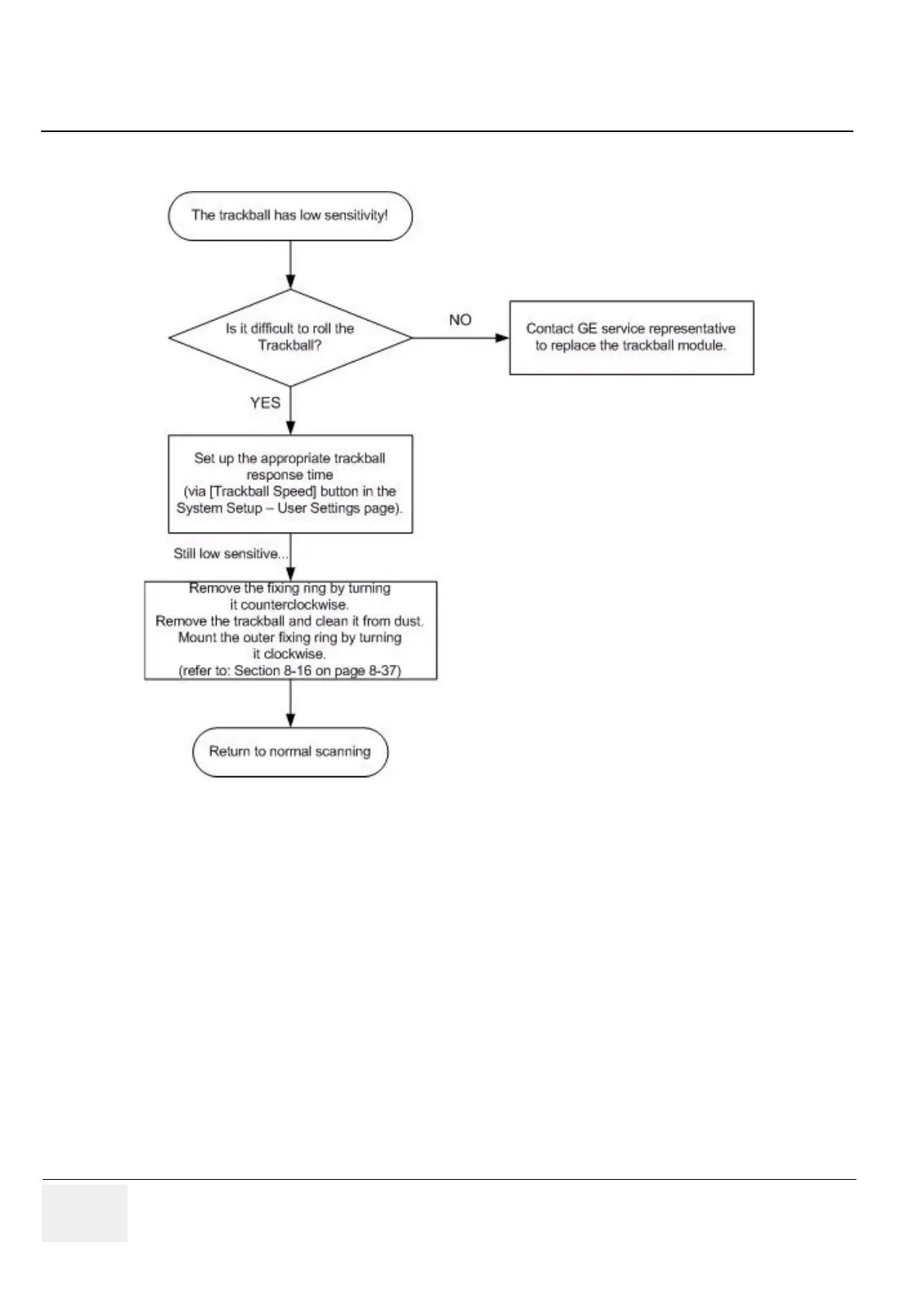

Figure 7-25 Trackball - Impaired Sensitivity
