GE Voluson i BT06 - Noise in Color Flow Mode

To Next Page

To Previous Page

GE VOLUSON

i / VOLUSON

IRECTION KTI106052, REVISION 10 SERVICE MANUAL

Chapter 7 - Diagnostics/Troubleshooting 7-21

7-8-2 Noise in Color Flow Mode

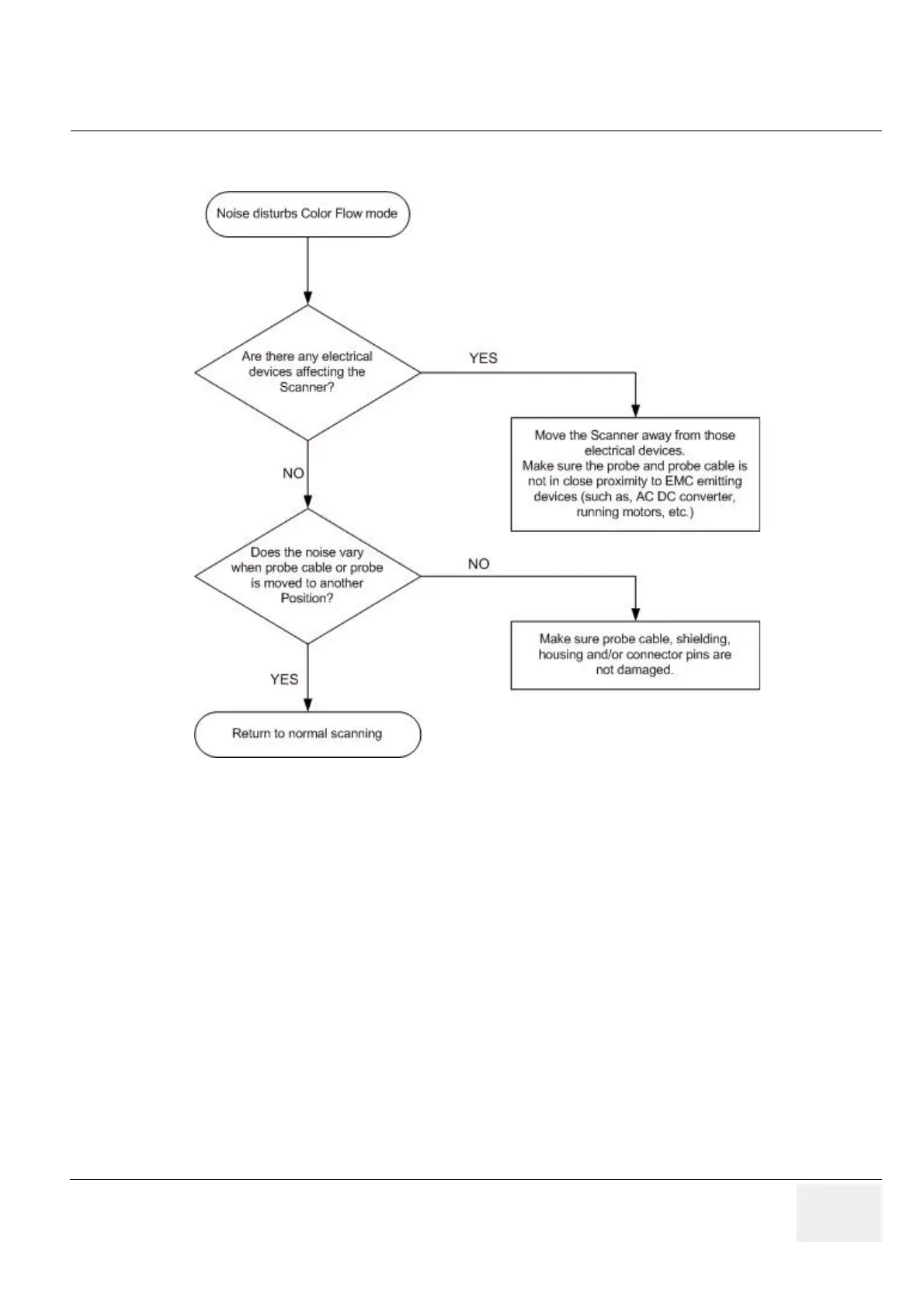

Figure 7-24 Noise in Color Flow Mode
