Chapter 5 - Components and Functions (Theory) 5-27
5-4-13 BackEnd Connectors
5-4-13-1 External BackEnd Connectors
5-4-14 15" LCD Monitor
The Voluson i / Voluson e 15" LCD Monitor incorporates improved XGA-LCD technology, has a power
consumption of approximately 8W, provides a wide viewing angle, and features enhanced contrast
capabilities.

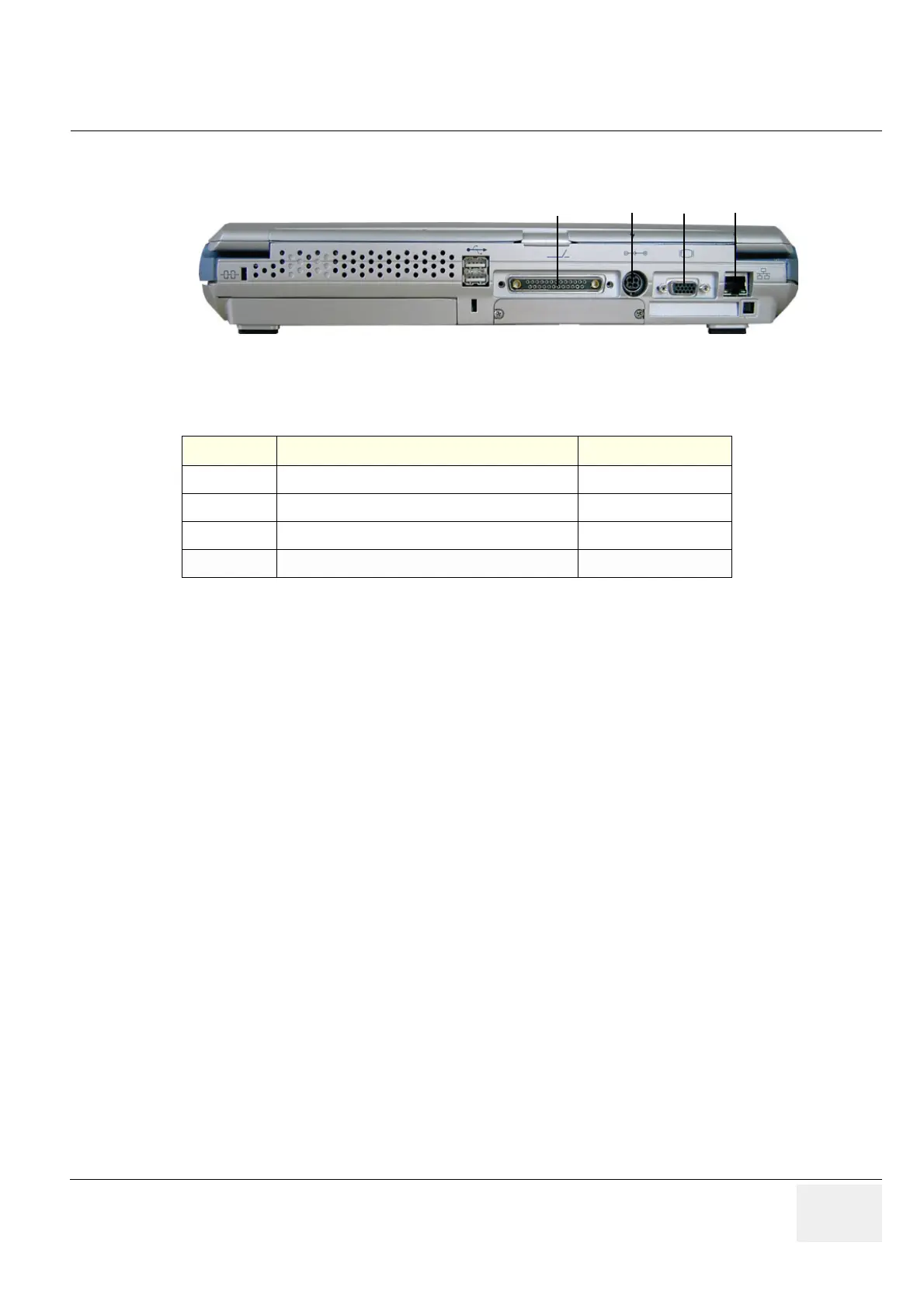

Figure 5-9 View of the Voluson i / Voluson e Rear Panel
Table 5-4 External BackEnd Connectors
Connector Description View
1 LAN 10/100 Base-TX Ethernet network connector rear connector panel
2 SVGA Output (VCR option or CRT monitor option) rear connectors panel
3 Port for DC IN (AC Adapter) rear connectors panel
4 Docking connector rear connectors panel
3
4
1
2
