GE Voluson i BT06 - Replacement of Key Caps (by Special Native Language Keys); Manpower; Tools; Preparations

GE VOLUSON i / VOLUSON e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-25
Section 8-7
Replacement of Key Caps (by special native language keys)
8-7-1 Manpower
One person, 30 minutes
8-7-2 Tools
small-sized slotted screwdriver or tweezers
8-7-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
8-7-4 Key Caps - Removal Procedure
1.) Carefully place a small flat screwdriver between the key cap you wish to remove and its neighboring
key cap.
2.) Gently lift the key cap, until it is completely loosened from its base (see Figure 8-30 below).
3.) Remove the key cap.
8-7-5 Key Cap - Installation Procedure
1.) Carefully place the appropriate key cap in position on the keyboard, taking care to place the plastic
alignment pin in the correct position so that the key cap is the right way up and reads correctly.
2.) Push the key cap down until it snaps into position.
3.) Power On/Boot Up the system; see: Section 3-6-2 on page 3-69.
4.) Setup the Keyboard Language Layout as described in Section 6-9 on page 6-10 and then type with
the keyboard to check the function of each key.
NOTICE
!! NOTICE:
Table 9-3 on page 9-5 shows the available Key Cap Kits.
Keys to be removed depend on the (special native) language kit.

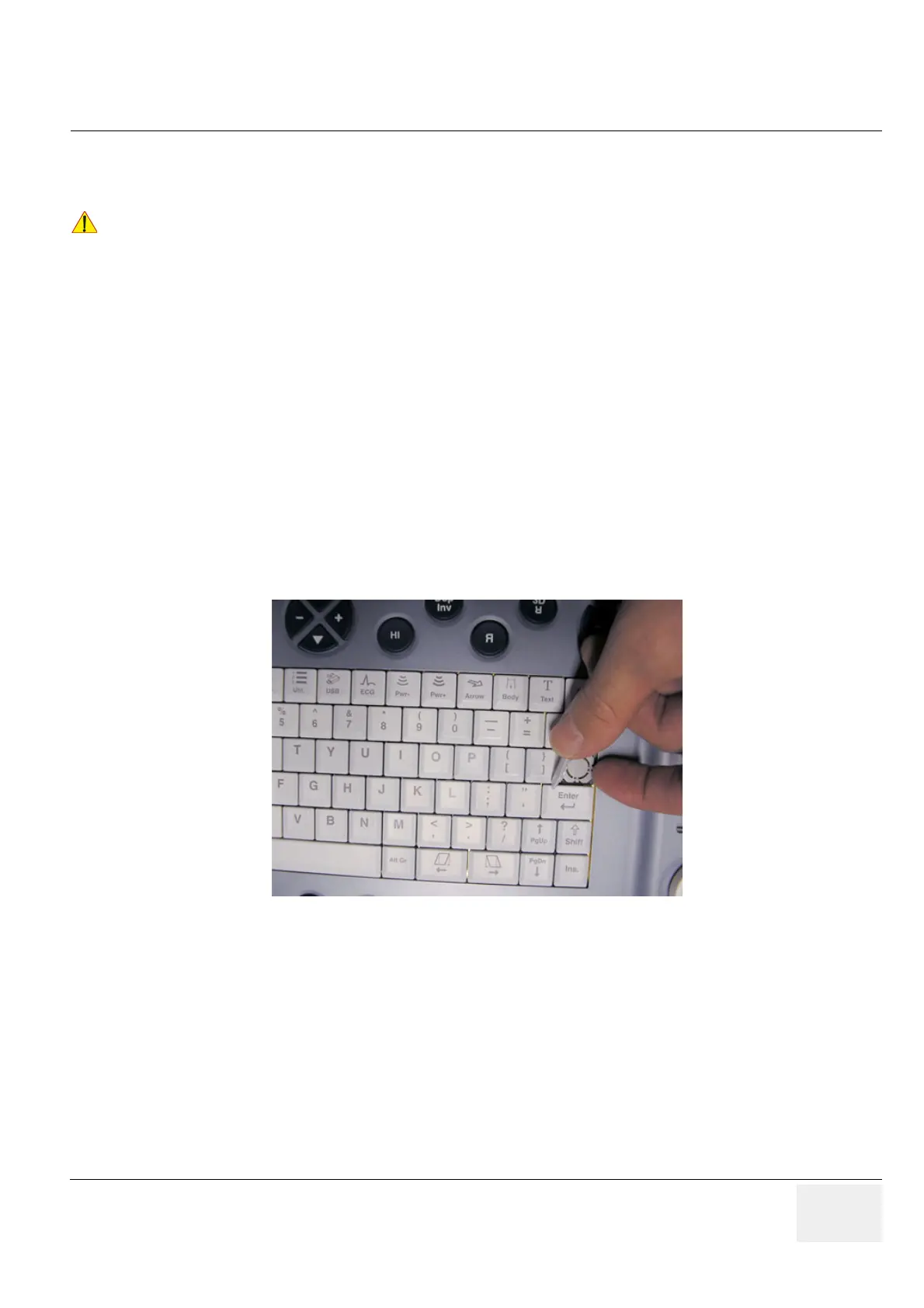

Figure 8-30 Key Cap Replacement
