GE Voluson i BT06 - External I;O Connectors

GE VOLUSON i / VOLUSON e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
3-104 Section 3-8 - System Configuration
3-8-4 External I/O Connectors

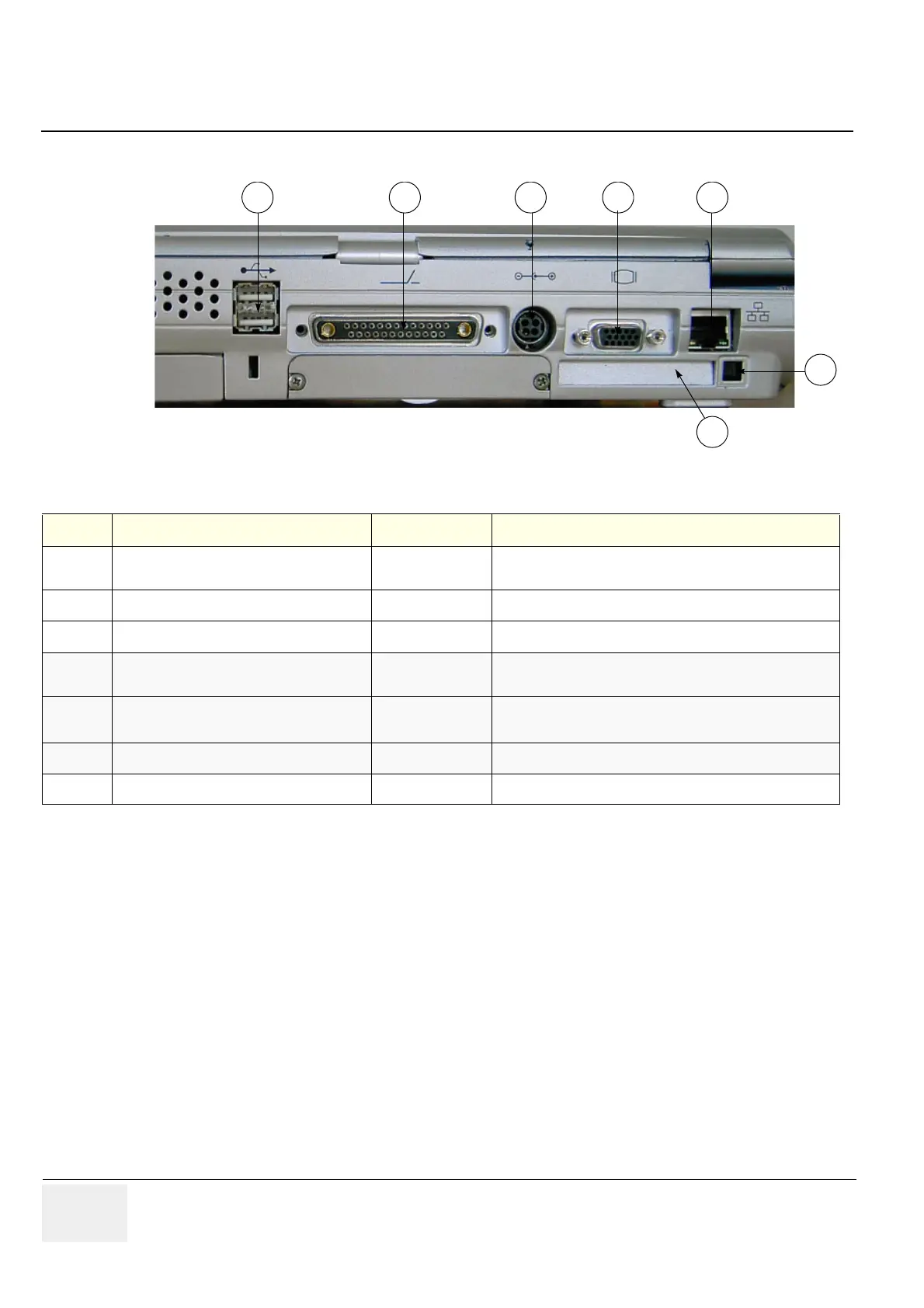

Figure 3-126 External I/O Connectors
Table 3-14 External I/O Connector Descriptions
Item Connector Name Table Description
1
USB 1 and USB 2
Table 3-15
two interchangeable USB-2.0 ports
(Printers, DVD+R/RW drive and other peripheral)
2
Docking connector
Connector for Voluson Station Docking Adapter
3
Port for DC IN
Connector for AC Adapter
4
VGA OUT
Table 3-16
print out VGA signal
(VCR option via VGA to S-Video converter)
5
NETWORK
Table 3-17
twisted pair RJ-45 10/100 megabit/s LAN Base-TX Ethernet
network connector (DICOM
® input/output)
6
PCMCIA port (only available at GPC1-3)
Personal Computer Memory port for PC card
6A
Ejection lever
Ejection lever for PCMCIA device
3
6
6A
1 2 54
