GE Voluson i BT06 - Section 9-8 Miscellaneous Cables

To Next Page

To Previous Page

GE VOLUSON

i / VOLUSON

IRECTION KTI106052, REVISION 10 SERVICE MANUAL

9-20 Section 9-8 - Miscellaneous Cables

Section 9-8

Miscellaneous Cables

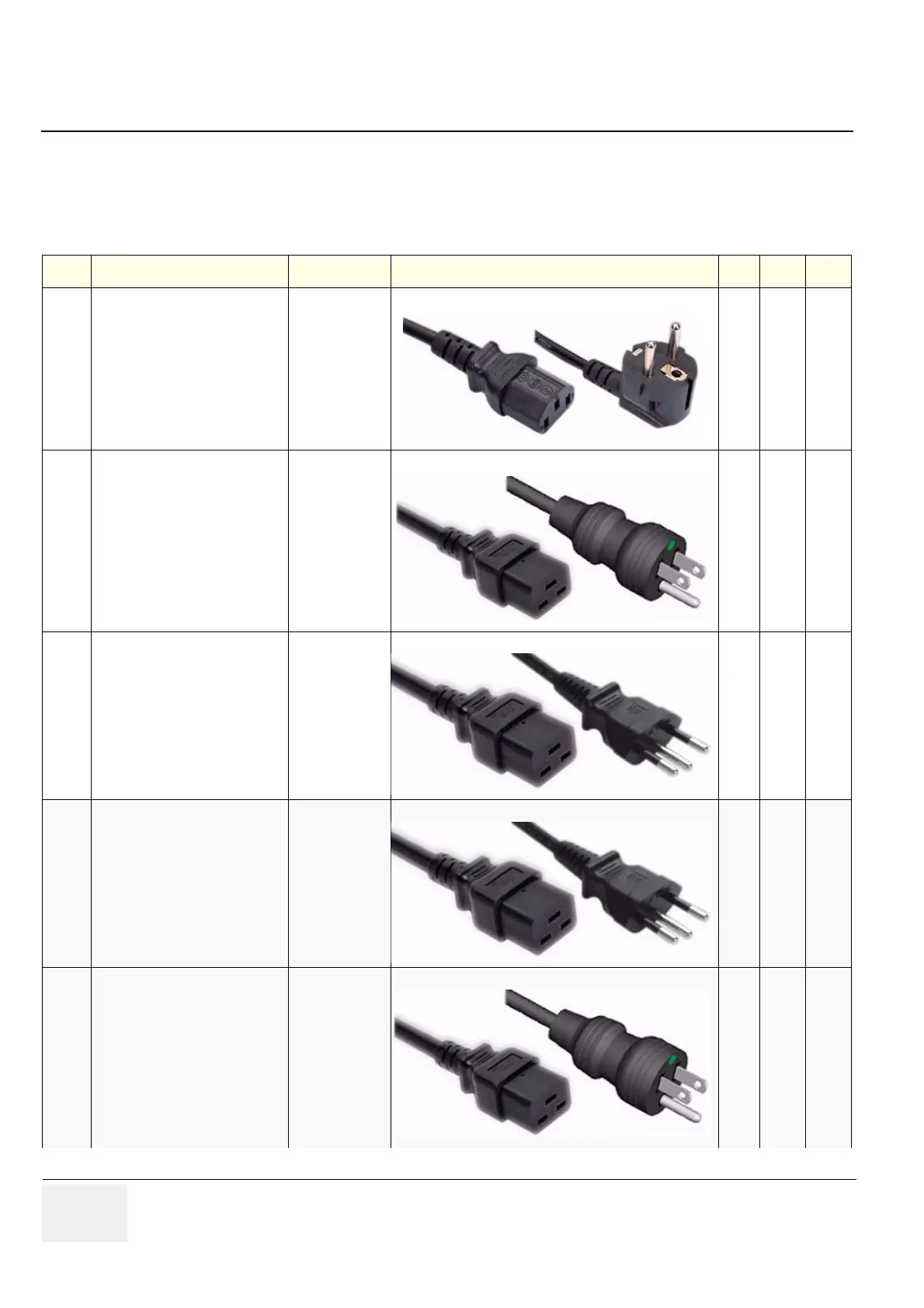

Table 9-8 Miscellaneous Cables

Item Part Name Part Number Description

Qty CRU FRU

401

Power Cord - Europe 230V

KTZ220388

Power Cord Europe 230V/240V

-Y1

402

Power Cord - USA Hosp.Grade

KTZ220389

Power Cord USA Hospital Grade

-Y1

403

CA-NET Cable

Brasilien 10A;2,5M

KTZ280185

Ca-Net Cable Brasilien 10A;2,5M

1Y 1

404

CA-NET Cable

Brasilien 20A;3M

KTZ280186

Ca-Net Cable Brasilien 20A;3M

1 Y 1

405

Power Cord - Japan

(Hosp.grade)

KTZ220390

Power Cord Japan Hospital Grade

- Y 1
