8-58 Section 8-19 - Replacement of the Dock Cart Components
8-19-13-4 Probe Mux Box - Removal Procedure (cont’d)
3.) Screw off the 2 screws and the 1 Allen screw.
4.) With both hands swing the Probe Box out away from the Dock Cart.
8-19-13-5 Probe Mux Box - Installation Procedure
1.) Fasten the Box on the Dock Cart with the screws as shown in Figure 8-78 on page 8-58.
2.) Reconnect the Probe Mux Box as shown in Figure 8-77 on page 8-57.
3.) Mount the Probe Holder as described in Section 8-19-11-5 on page 8-55.

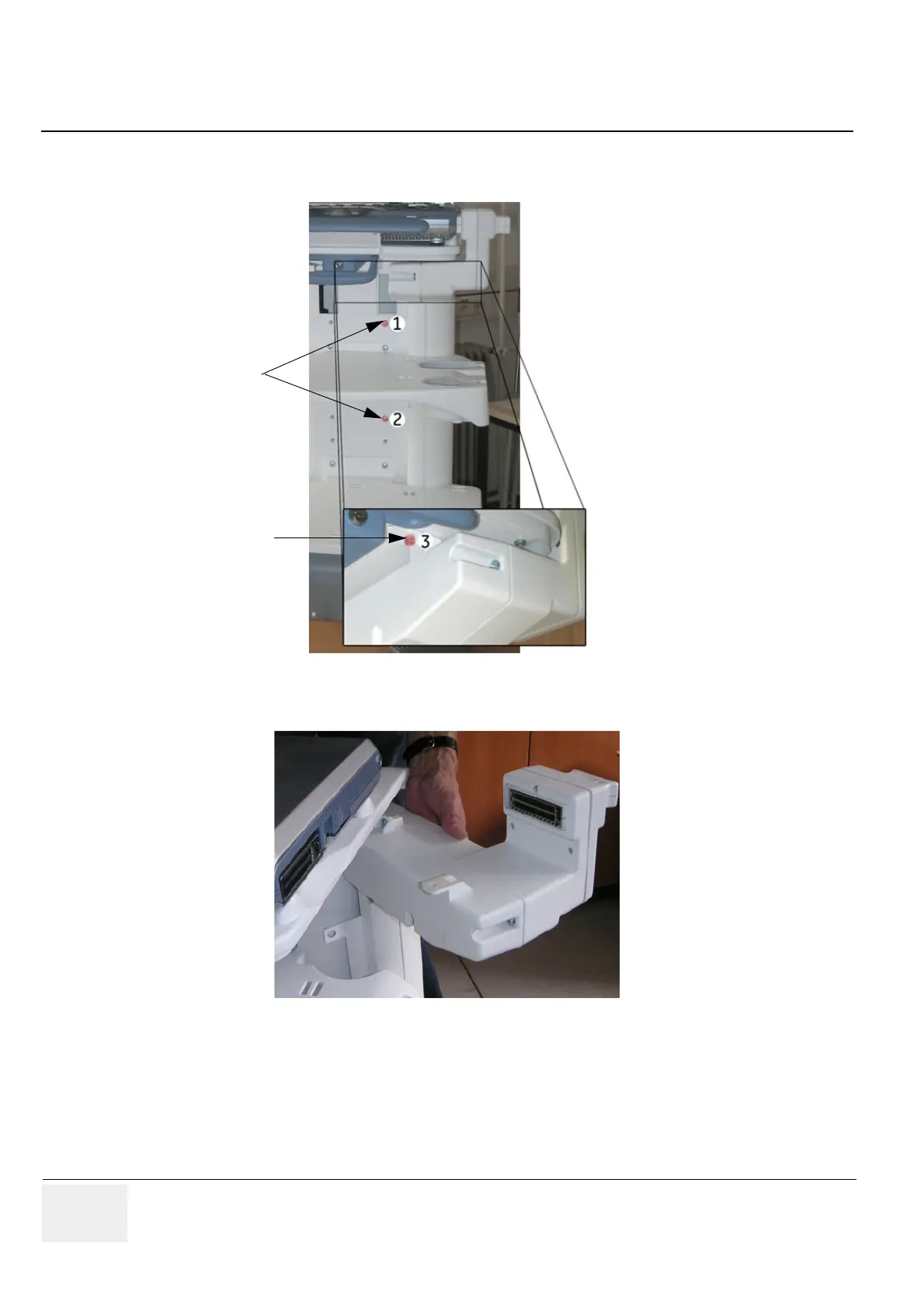

Figure 8-78 unscrew the 2 screws and the 1 Allen screw
Figure 8-79 carefully remove the Probe Mux Box
unscrew 2 screws
unscrew 1
Allen screw
