GE Voluson i BT06 - Replacement of the LAN Connector; Manpower; Tools; Preparations

GE VOLUSON i / VOLUSON e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-85
8-20-24 Replacement of the LAN Connector
8-20-24-1 Manpower
One person, 10 minutes
8-20-24-2 Tools
Phillips screwdriver 1
8-20-24-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
2.) Remove the complete lever.
3.) Remove the Top Shelf Bottom Rear Cover as described in Section 8-20-13 on page 8-73.
8-20-24-4 LAN Connector - Removal Procedure
1.) Screw off 1 screw, disconnect the cable and carefully remove it.
8-20-24-5 LAN Connector - Installation Procedure
1.) Connect the new LAN Connector and place it on its original position.
2.) Fasten with the screw.
3.) Mount the Top Shelf Bottom Rear Cover as described in Section 8-20-13-5 on page 8-73.
4.) Mount the complete lever at its original position.

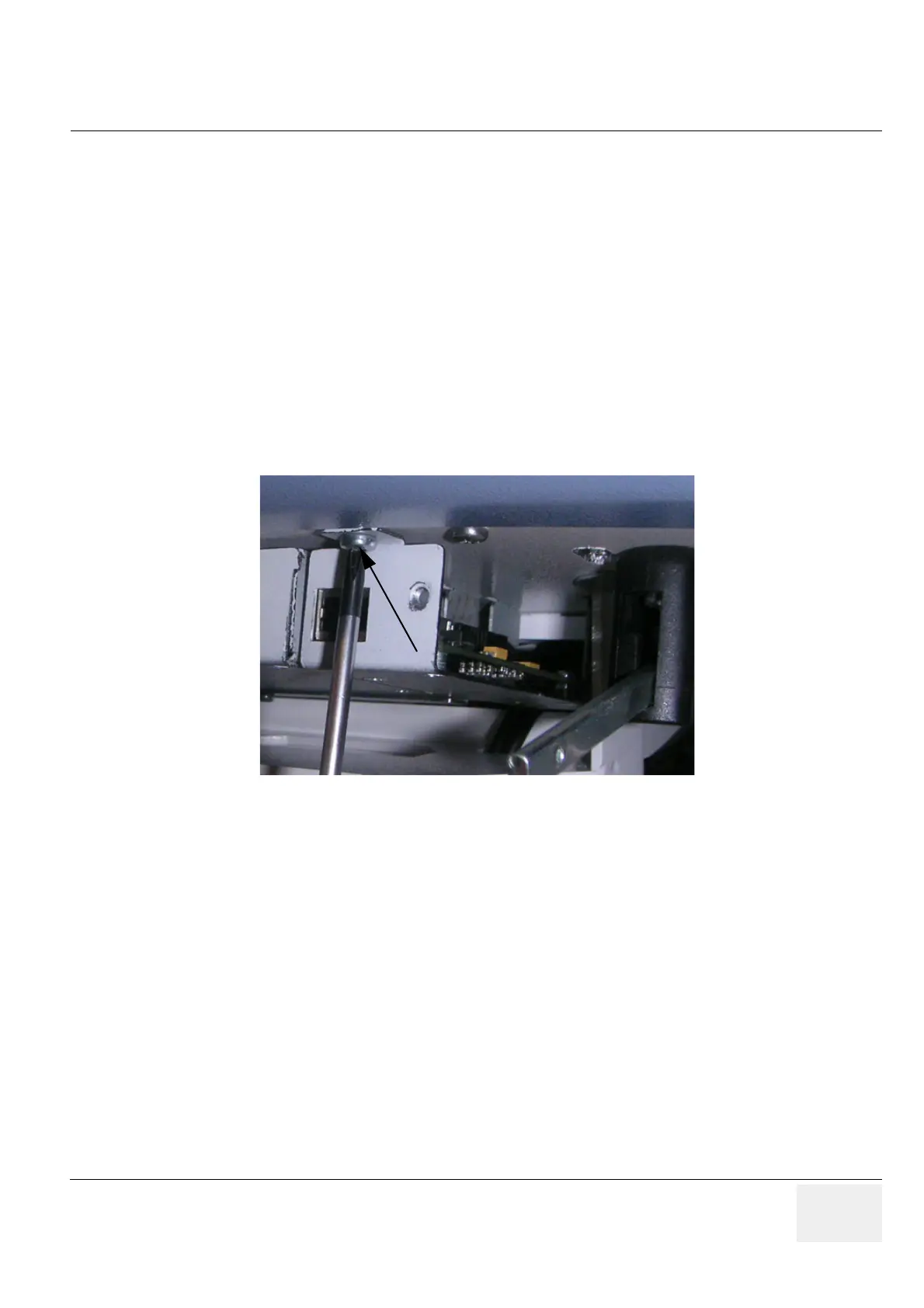

Figure 8-107 screw off the screw
