GE Voluson i BT06 - Replacement of the Probe Mux Box; Manpower; Tools; Preparations

GE VOLUSON i / VOLUSON e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-57
8-19-13 Replacement of the Probe Mux Box
8-19-13-1 Manpower
One person, 10 minutes
8-19-13-2 Tools
Phillips screwdriver 1
Socket wrench 4
8-19-13-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
2.) Remove the Probe Holder as described in Section 8-19-11 on page 8-55.
8-19-13-4 Probe Mux Box - Removal Procedure
1.) Disconnect the Probe connector.
2.) Hold the Probe box to the Dock Cart.

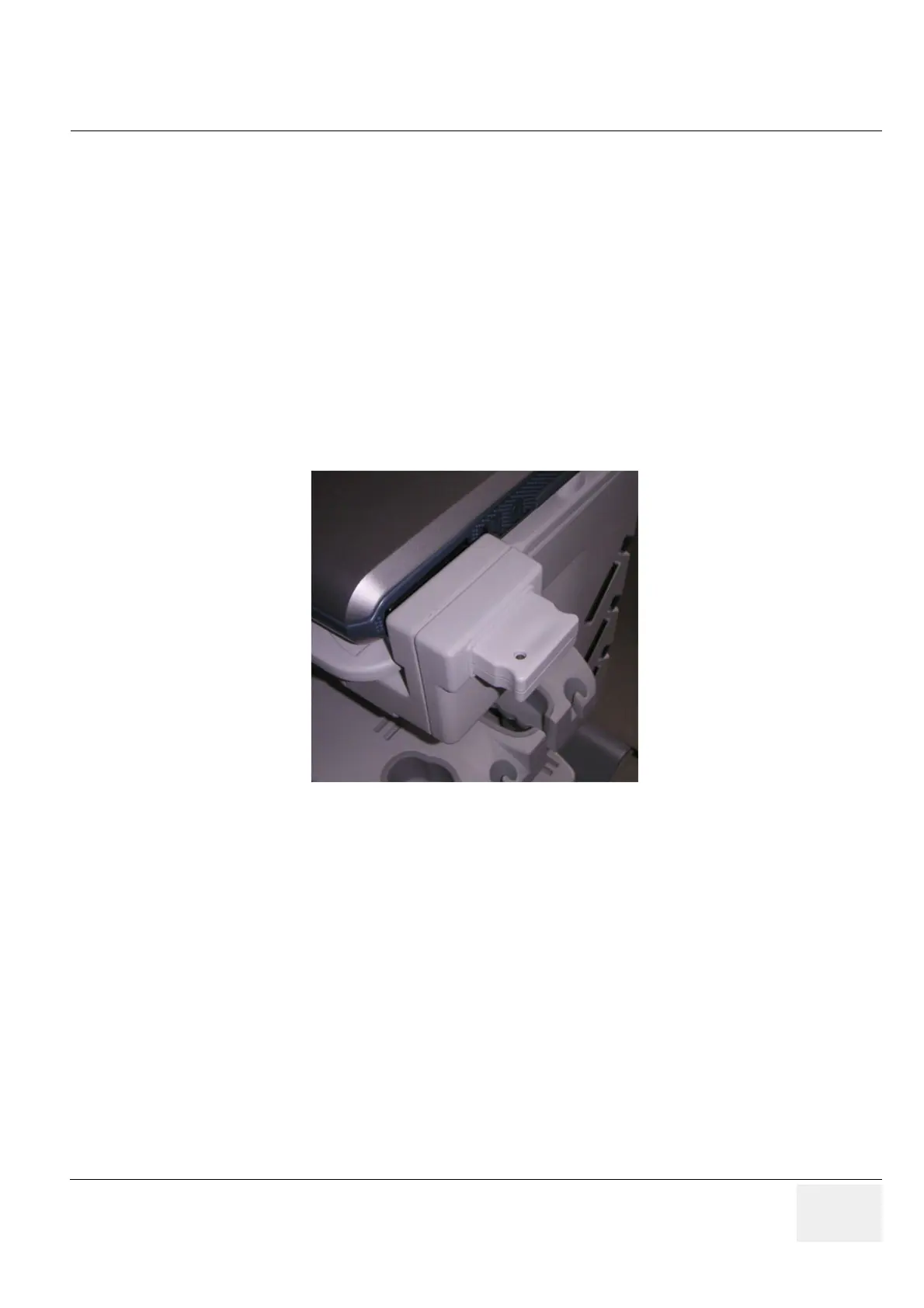

Figure 8-77 disconnect the Probe connector
